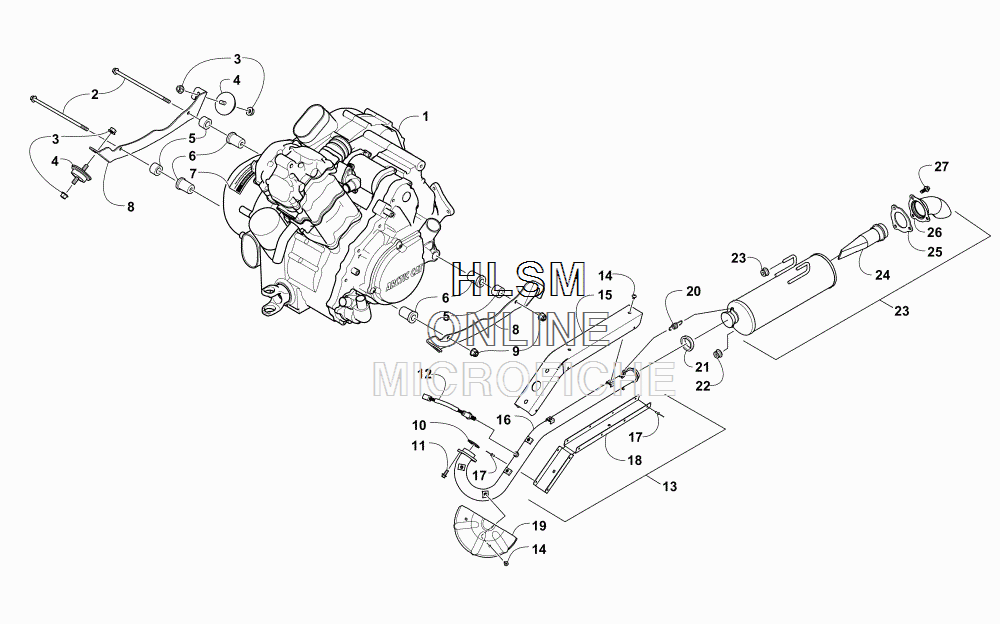

ENGINE AND EXHAUST для Arctic Cat HDX 700 XT SE CAMO [U2016R7T1POSH] - 2016 года выпуска
-
№АртикулНазвание
-
10800-177 ENGINE, A700LENGINE, A700L
-
21423-064 BOLT, HFH M10-1.25X250 CL10.9 RIE SILVERBOLT, HFH M10-1.25X250 CL10.9 RIE SILVER
-
38424-002 NUTNUT
-
40408-014 MOUNT, ENGINEMOUNT, ENGINE
-
51423-025 SPACERSPACER
-
60801-258 BUSHING, ENGINE MOUNTBUSHING, ENGINE MOUNT
-
70411-426 DECAL, WARNING - CLUTCHDECAL, WARNING - CLUTCH
-
82516-768 BRACKET, ENGINE - RIGHTBRACKET, ENGINE - RIGHT
-
82516-769 BRACKET, ENGINE - LEFTBRACKET, ENGINE - LEFT
-
98428-002 NUT, LOCKNUT, LOCK
-
100412-338 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
118408-820 SCREW, CAPSCREW, CAP
-
120630-302 SENSOR, OXYGENSENSOR, OXYGEN
-
130512-827 PIPE, EXHAUST - ASSEMBLY (INC. FOUR NO. 14 AND 15-18)PIPE, EXHAUST - ASSEMBLY (INC. FOUR NO. 14 AND 15-18)
-
148477-610 ...SCREW, MACHINE...SCREW, MACHINE
-
150412-693 ...SHIELD, PIPE - UPPER REAR...SHIELD, PIPE - UPPER REAR
-
171623-130 ...RIVET...RIVET
-
180412-840 ...SHIELD, PIPE - LOWER FRONT...SHIELD, PIPE - LOWER FRONT
-
190512-547 SHIELD, PIPE - FORWARDSHIELD, PIPE - FORWARD
-
200612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
210412-375 SEAL, EXHAUST PIPESEAL, EXHAUST PIPE
-
220412-544 BUSHINGBUSHING
-
230512-844 MUFFLER - ASSEMBLY (INC. 24-27)MUFFLER - ASSEMBLY (INC. 24-27)
-
240512-647 ...SPARK ARRESTER ASSEMBLY...SPARK ARRESTER ASSEMBLY
-
250412-675 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
260512-733 ...PIPE, TAIL - BLACK...PIPE, TAIL - BLACK
-
278408-616 ...SCREW, CAP...SCREW, CAP
