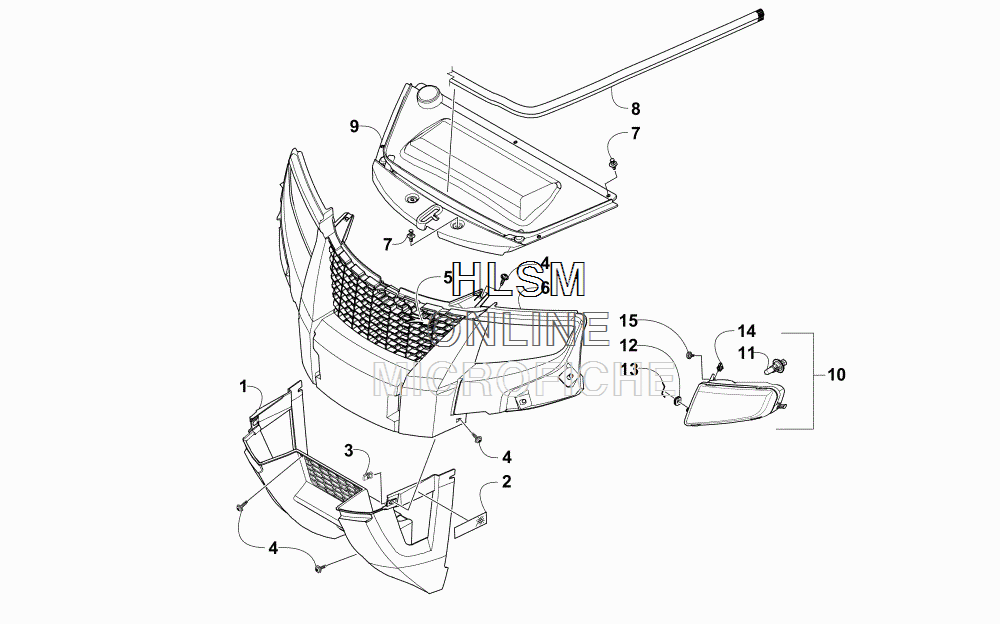

GRILL AND HEADLIGHT ASSEMBLY для Arctic Cat HDX 700 XT SE CAMO [U2016R7T1POSH] - 2016 года выпуска
-
№АртикулНазвание
-
17506-498 FASCIA, LOWER - FRONT (INC. 2)FASCIA, LOWER - FRONT (INC. 2)
-
25411-320 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
30423-577 CLIP, U-NUTCLIP, U-NUT
-
40423-609 SCREW, MACHINESCREW, MACHINE
-
54411-479 DECAL, AIRCATDECAL, AIRCAT
-
64406-608 FASCIA, UPPER FRONTFASCIA, UPPER FRONT
-
70623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
84406-885 SEAL, ACCESS COVERSEAL, ACCESS COVER
-
94406-758 PANEL, ACCESSPANEL, ACCESS
-
100509-102 HEADLIGHT, HALOGEN - ASSEMBLY - RIGHT (INC. 11)HEADLIGHT, HALOGEN - ASSEMBLY - RIGHT (INC. 11)
-
100509-103 HEADLIGHT, HALOGEN - ASSEMBLY - LEFT (INC. 11)HEADLIGHT, HALOGEN - ASSEMBLY - LEFT (INC. 11)
-
110409-182 ...BULB, HEADLIGHT - H13...BULB, HEADLIGHT - H13
-
124406-722 GROMMET - RIGHTGROMMET - RIGHT
-
124406-723 GROMMET - LEFTGROMMET - LEFT
-
130409-177 WIREFORM, HEADLIGHTWIREFORM, HEADLIGHT
-
141623-637 CLIP, U-NUTCLIP, U-NUT
-
152623-113 KNOB, ADJUSTERKNOB, ADJUSTER
