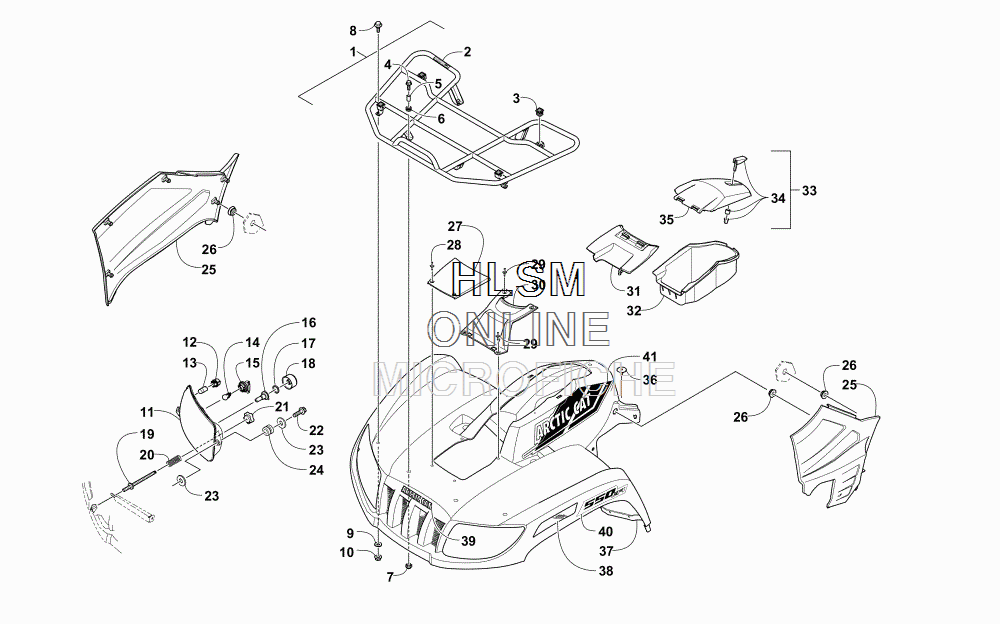

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat TRV 550 XT EPS L7E WHITE [A2016TGO1P7EW] - 2016 года выпуска
-
№АртикулНазвание
-
12506-106 RACK, FRONT - ASSEMBLY (INC. 2-3)RACK, FRONT - ASSEMBLY (INC. 2-3)
-
20411-576 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-835 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, LOCKNUT, LOCK
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
108427-602 NUT, LOCKNUT, LOCK
-
110509-036 HEADLIGHT ASSEMBLY - RIGHT (INC. 12-18)HEADLIGHT ASSEMBLY - RIGHT (INC. 12-18)
-
110509-037 HEADLIGHT ASSEMBLY - LEFT (INC. 12-18)HEADLIGHT ASSEMBLY - LEFT (INC. 12-18)
-
120409-102 ...SOCKET, POSITION BULB...SOCKET, POSITION BULB
-
130409-101 ...BULB, POSITION...BULB, POSITION
-
140409-099 ...BULB, TURN SIGNAL...BULB, TURN SIGNAL
-
150409-100 ...SOCKET, TURN SIGNAL BULB...SOCKET, TURN SIGNAL BULB
-
160409-096 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
170409-097 ...RETAINER, SPRING...RETAINER, SPRING
-
180409-098 ...BOOT, RUBBER...BOOT, RUBBER
-
190423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
200423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
210423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
220623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
238050-217 WASHERWASHER
-
240423-447 GROMMETGROMMET
-
252406-324 PANEL, SIDE - LOWER - RIGHTPANEL, SIDE - LOWER - RIGHT
-
252406-421 PANEL, SIDE - LOWER - LEFTPANEL, SIDE - LOWER - LEFT
-
260423-678 GROMMETGROMMET
-
271406-358 COVER, ACCESSCOVER, ACCESS
-
280423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
290623-362 CLIP, RETAININGCLIP, RETAINING
-
301406-484 COVER, STEERING POSTCOVER, STEERING POST
-
310470-513 COVER, STORAGE BOXCOVER, STORAGE BOX
-
321406-573 BOX, STORAGEBOX, STORAGE
-
332506-234 LID, STORAGE BOX - W/LATCH (INC. 34-35)LID, STORAGE BOX - W/LATCH (INC. 34-35)
-
341406-599 ...LATCH, STORAGE BOX...LATCH, STORAGE BOX
-
350470-514 ...LID, STORAGE BOX...LID, STORAGE BOX
-
360423-101 SCREW, SHOULDERSCREW, SHOULDER
-
377506-486 PANEL, FENDER - (WHITE)PANEL, FENDER - (WHITE)
-
380411-818 DECAL, REFLECTOR - RIGHT - (AMBER)DECAL, REFLECTOR - RIGHT - (AMBER)
-
380411-819 DECAL, REFLECTOR - LEFT - (AMBER)DECAL, REFLECTOR - LEFT - (AMBER)
-
395411-510 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
405411-404 DECAL, "550 EFI"DECAL, "550 EFI"
-
405411-405 DECAL, "550 EFI"DECAL, "550 EFI"
-
415411-406 DECAL, SIDE - UPPER RIGHTDECAL, SIDE - UPPER RIGHT
-
415411-407 DECAL, SIDE - UPPER LEFTDECAL, SIDE - UPPER LEFT
