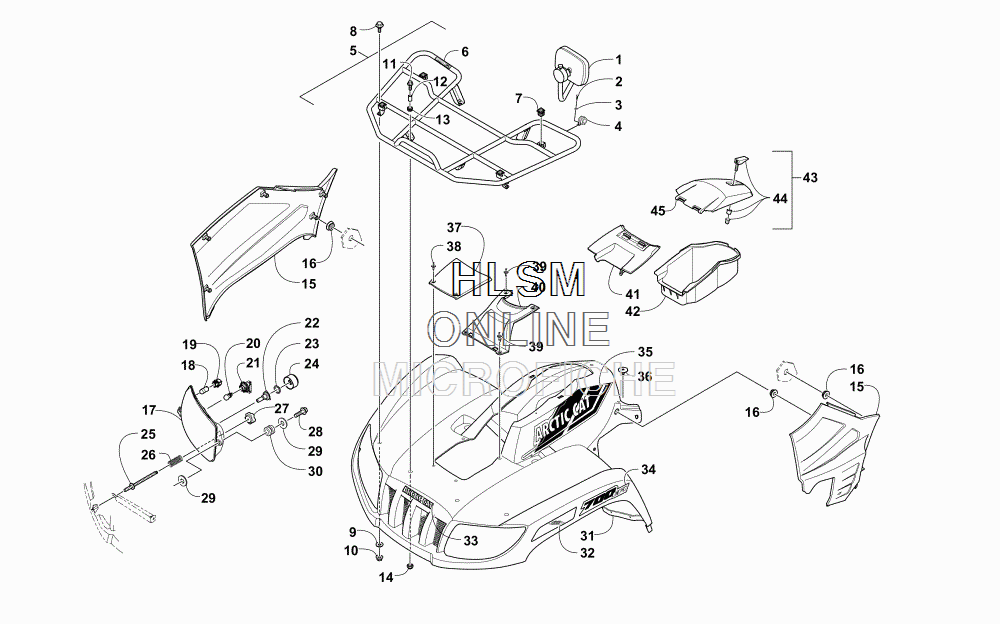

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat TRV 700 T3S RED [A2016TBT4ESTR] - 2016 года выпуска
-
№АртикулНазвание
-
12441-252 MIRROR, T3S (INC. 2-4)MIRROR, T3S (INC. 2-4)
-
22441-077 ...SCREW...SCREW
-
32441-079 ...WASHER...WASHER
-
42441-078 ...CLAMP...CLAMP
-
52506-106 RACK, FRONT - ASSEMBLY (INC. 6-7)RACK, FRONT - ASSEMBLY (INC. 6-7)
-
60411-576 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
70441-592 ...BUSHING...BUSHING
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
108427-602 NUT, LOCKNUT, LOCK
-
118410-835 SCREW, CAPSCREW, CAP
-
120423-669 SPACERSPACER
-
130423-465 GROMMETGROMMET
-
148432-802 NUT, LOCKNUT, LOCK
-
152406-324 PANEL, SIDE - LOWER - RIGHTPANEL, SIDE - LOWER - RIGHT
-
152406-421 PANEL, SIDE - LOWER - LEFTPANEL, SIDE - LOWER - LEFT
-
160423-678 GROMMETGROMMET
-
170509-036 HEADLIGHT ASSEMBLY - RIGHT (INC. ONE NO. 18-24)HEADLIGHT ASSEMBLY - RIGHT (INC. ONE NO. 18-24)
-
170509-037 HEADLIGHT ASSEMBLY - LEFT (INC. ONE NO. 18-24)HEADLIGHT ASSEMBLY - LEFT (INC. ONE NO. 18-24)
-
180409-101 ...BULB, POSITION...BULB, POSITION
-
190409-102 ...SOCKET, POSITION BULB...SOCKET, POSITION BULB
-
200409-099 ...BULB, TURN SIGNAL...BULB, TURN SIGNAL
-
210409-100 ...SOCKET, TURN SIGNAL BULB...SOCKET, TURN SIGNAL BULB
-
220409-096 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
230409-097 ...RETAINER, SPRING...RETAINER, SPRING
-
240409-098 ...BOOT, RUBBER...BOOT, RUBBER
-
250423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
260423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
270423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
280623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
298050-217 WASHERWASHER
-
300423-447 GROMMETGROMMET
-
312406-520 PANEL, FENDER - FRONT - (RED)PANEL, FENDER - FRONT - (RED)
-
320411-818 DECAL, REFLECTOR - RIGHT - (AMBER)DECAL, REFLECTOR - RIGHT - (AMBER)
-
320411-819 DECAL, REFLECTOR - LEFT - (AMBER)DECAL, REFLECTOR - LEFT - (AMBER)
-
335411-507 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
345411-362 DECAL, "700 EFI" - RIGHTDECAL, "700 EFI" - RIGHT
-
345411-363 DECAL, "700 EFI" - LEFTDECAL, "700 EFI" - LEFT
-
355411-294 DECAL, SIDE - UPPER RIGHTDECAL, SIDE - UPPER RIGHT
-
355411-295 DECAL, SIDE - UPPER LEFTDECAL, SIDE - UPPER LEFT
-
360423-101 SCREW, SHOULDERSCREW, SHOULDER
-
371406-358 COVER, ACCESSCOVER, ACCESS
-
380423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
390623-362 CLIP, RETAININGCLIP, RETAINING
-
401406-484 COVER, STEERING POSTCOVER, STEERING POST
-
410470-513 COVER, STORAGE BOXCOVER, STORAGE BOX
-
421406-573 BOX, STORAGEBOX, STORAGE
-
432506-234 LID, STORAGE BOX - W/LATCH (INC. 44-45)LID, STORAGE BOX - W/LATCH (INC. 44-45)
-
441406-599 ...LATCH, STORAGE BOX...LATCH, STORAGE BOX
-
450470-514 ...LID, STORAGE BOX...LID, STORAGE BOX
