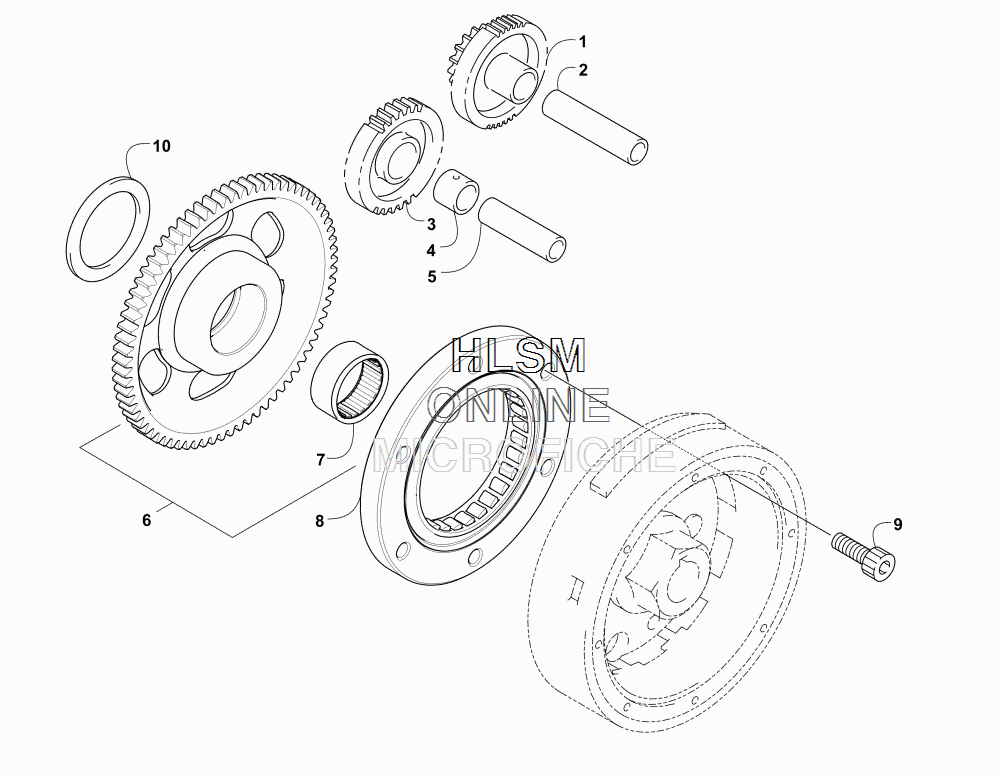

STARTER CLUTCH ASSEMBLY для Arctic Cat TRV 700 T3S RED [A2016TBT4ESTR] - 2016 года выпуска
-
№АртикулНазвание
-
10815-033 GEAR, STARTER - IDLER - 44T/14TGEAR, STARTER - IDLER - 44T/14T
-
20829-031 SHAFT, STARTER GEAR - 12 X 58.5SHAFT, STARTER GEAR - 12 X 58.5
-
30815-002 GEAR, STARTER IDLER - NO. 2GEAR, STARTER IDLER - NO. 2
-
40815-003 SPACER, STARTER IDLER GEAR - NO. 2SPACER, STARTER IDLER GEAR - NO. 2
-
50829-032 SHAFT, STARTER GEAR - 12 X 44.7SHAFT, STARTER GEAR - 12 X 44.7
-
60815-004 GEAR, STARTER CLUTCH (INC. 7)GEAR, STARTER CLUTCH (INC. 7)
-
70832-079 ...BEARING, NEEDLE ROLLER - 31 X 39 X 18...BEARING, NEEDLE ROLLER - 31 X 39 X 18
-
80802-035 CLUTCH, STARTERCLUTCH, STARTER
-
90826-069 SCREW, CAPSCREW, CAP
-
100828-094 WASHERWASHER
