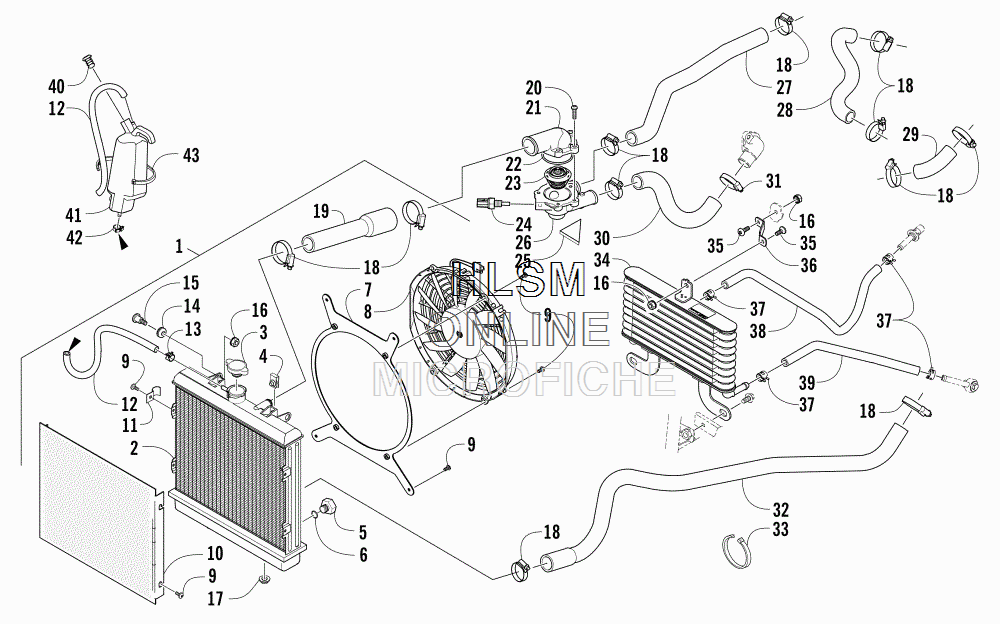

COOLING ASSEMBLY для Arctic Cat 1000 XT EPS WHITE - 2017 года выпуска
-
№АртикулНазвание
-
10413-258 RADIATOR ASSEMBLY (INC. 2-14)RADIATOR ASSEMBLY (INC. 2-14)
-
20413-216 ...RADIATOR...RADIATOR
-
30413-255 ...CAP, RADIATOR...CAP, RADIATOR
-
41623-637 ...CLIP, U-NUT...CLIP, U-NUT
-
50413-195 ...PLUG, DRAIN...PLUG, DRAIN
-
61602-213 ...O-RING...O-RING
-
70413-217 ...BRACKET, MOUNTING - FAN...BRACKET, MOUNTING - FAN
-
80413-123 ...FAN, RADIATOR...FAN, RADIATOR
-
98470-510 ...SCREW, MACHINE...SCREW, MACHINE
-
100413-214 ...SCREEN, RADIATOR...SCREEN, RADIATOR
-
110423-351 ...CLAMP, WIRE...CLAMP, WIRE
-
120610-011 ...HOSE - 25 FT...HOSE - 25 FT
-
131623-351 ...CLAMP, HOSE...CLAMP, HOSE
-
140423-030 ...GROMMET...GROMMET
-
150423-484 SCREW, SHOULDERSCREW, SHOULDER
-
160623-038 NUT W/WASHERNUT W/WASHER
-
170423-028 BUSHING, STEMBUSHING, STEM
-
180423-496 CLAMP, HOSECLAMP, HOSE
-
190410-120 HOSE, COOLANT - RADIATOR/THERMOSTAT - UPPERHOSE, COOLANT - RADIATOR/THERMOSTAT - UPPER
-
208470-520 SCREW, MACHINESCREW, MACHINE
-
210808-092 COVER, THERMOSTATCOVER, THERMOSTAT
-
220830-173 O-RINGO-RING
-
230808-093 THERMOSTATTHERMOSTAT
-
240808-124 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
250417-008 PAD, FOAMPAD, FOAM
-
260808-189 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
270410-195 HOSE, COOLANT - NO. 2- HOTHOSE, COOLANT - NO. 2- HOT
-
280410-116 HOSE, COOLANT - COLDHOSE, COOLANT - COLD
-
290410-115 HOSE, COOLANT - CROSSOVER- COLDHOSE, COOLANT - CROSSOVER- COLD
-
300410-117 HOSE, COOLANT - NO. 1 - HOTHOSE, COOLANT - NO. 1 - HOT
-
311623-093 CLAMP, HOSECLAMP, HOSE
-
320410-229 HOSE, COOLANT - PUMP SUCTIONHOSE, COOLANT - PUMP SUCTION
-
330123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
340413-211 COOLER, OILCOOLER, OIL
-
358476-612 SCREW, MACHINESCREW, MACHINE
-
360513-022 BRACKET, MOUNTING - OIL COOLER - UPPERBRACKET, MOUNTING - OIL COOLER - UPPER
-
370423-632 CLAMP, HOSECLAMP, HOSE
-
380410-149 HOSE, OIL COOLER - INHOSE, OIL COOLER - IN
-
390410-321 HOSE, OIL COOLER - OUTHOSE, OIL COOLER - OUT
-
400413-087 PLUGPLUG
-
410413-086 BOTTLE, OVERFLOWBOTTLE, OVERFLOW
-
420124-045 CLAMP, HOSECLAMP, HOSE
-
430623-316 TIE, CABLE - 14 IN.TIE, CABLE - 14 IN.
