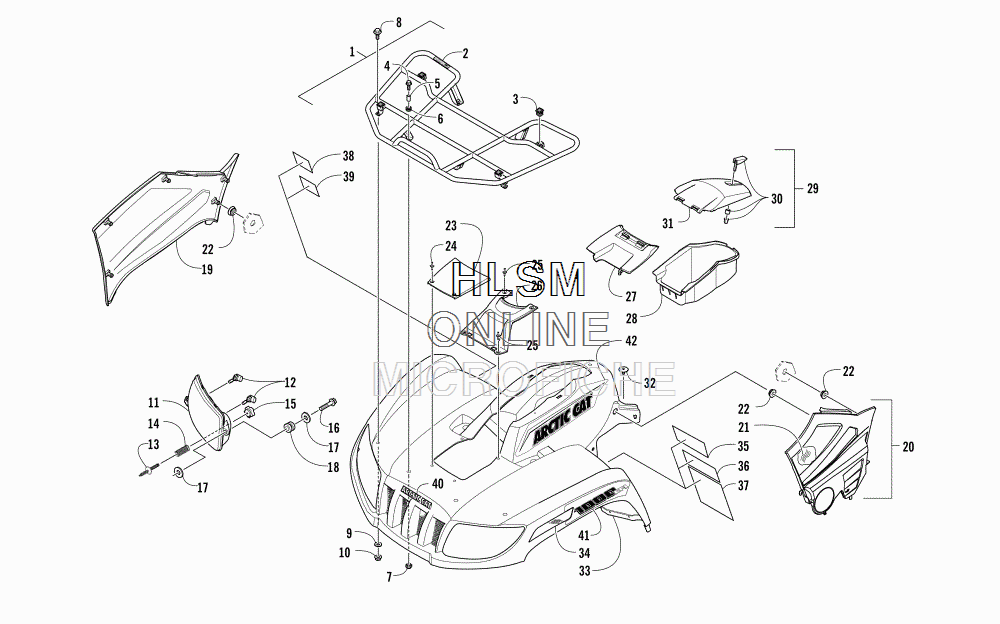

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat 1000 XT EPS WHITE - 2017 года выпуска`
-
№АртикулНазвание
-
12506-106 RACK, FRONT - ASSEMBLY (INC. 2-3)RACK, FRONT - ASSEMBLY (INC. 2-3)
-
20411-576 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-835 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, HEXNUT, HEX
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
108427-603 NUT, LOCKNUT, LOCK
-
110509-044 HEADLIGHT ASSEMBLY - RIGHT (INC. 12)HEADLIGHT ASSEMBLY - RIGHT (INC. 12)
-
110509-035 HEADLIGHT ASSEMBLY - LEFT (INC. 12)HEADLIGHT ASSEMBLY - LEFT (INC. 12)
-
120409-055 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
130423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
140423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
150423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
160623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
178050-217 WASHERWASHER
-
180423-447 GROMMETGROMMET
-
192406-588 PANEL, SIDE - LOWER - RIGHTPANEL, SIDE - LOWER - RIGHT
-
207506-207 PANEL, SIDE - LOWER - LEFT (INC. 21)PANEL, SIDE - LOWER - LEFT (INC. 21)
-
210412-842 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
220423-678 GROMMETGROMMET
-
231406-358 COVER, ACCESSCOVER, ACCESS
-
240423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
250623-362 CLIP, RETAININGCLIP, RETAINING
-
261406-484 COVER, STEERING POSTCOVER, STEERING POST
-
270470-513 COVER, STORAGE BOXCOVER, STORAGE BOX
-
281406-573 BOX, STORAGEBOX, STORAGE
-
292506-234 LID, STORAGE BOX - W/LATCH (INC. 30-31)LID, STORAGE BOX - W/LATCH (INC. 30-31)
-
301406-599 ...LATCH, STORAGE BOX...LATCH, STORAGE BOX
-
310470-514 ...LID, STORAGE BOX...LID, STORAGE BOX
-
320423-101 SCREW, SHOULDERSCREW, SHOULDER
-
337506-505 PANEL, FENDER - ASSEMBLY - WHITE (INC. 34-39)PANEL, FENDER - ASSEMBLY - WHITE (INC. 34-39)
-
340411-818 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
340411-819 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
351411-574 ...DECAL, WARNING - OFF-ROAD ONLY...DECAL, WARNING - OFF-ROAD ONLY
-
361411-804 ...DECAL, WARNING - AGE (16)...DECAL, WARNING - AGE (16)
-
371411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
384411-818 ...DECAL, WARNING - TURN/HILL...DECAL, WARNING - TURN/HILL
-
391411-906 ...DECAL, WARNING - THROTTLE...DECAL, WARNING - THROTTLE
-
401411-725 DECAL - "ARCTIC CAT"DECAL - "ARCTIC CAT"
-
415411-642 DECAL, "1000 EFI" - RIGHTDECAL, "1000 EFI" - RIGHT
-
415411-643 DECAL, "1000 EFI" - LEFTDECAL, "1000 EFI" - LEFT
-
425411-644 DECAL, SIDE - UPPER RIGHTDECAL, SIDE - UPPER RIGHT
-
425411-645 DECAL, SIDE - UPPER LEFTDECAL, SIDE - UPPER LEFT
