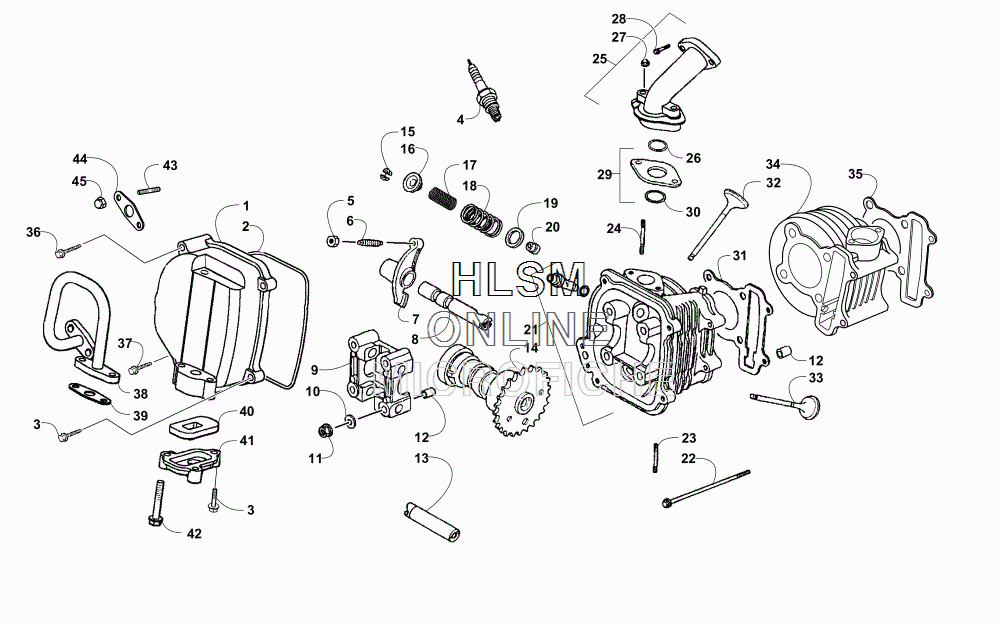

CYLINDER HEAD ASSEMBLY для Arctic Cat 90 2X4 DVX GREEN - 2017 года выпуска
-
№АртикулНазвание
-
13305-594 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
23304-616 GASKETGASKET
-
33304-569 BOLT FLANGE 6X25BOLT FLANGE 6X25
-
40217-726 PLUG, SPARK CR7HSAPLUG, SPARK CR7HSA
-
53304-026 NUT, TAPPET ADJUSTINGNUT, TAPPET ADJUSTING
-
63304-007 SCREW, TAPPET ADJUSTINGSCREW, TAPPET ADJUSTING
-
73303-031 VALVE, ROCKER ARMVALVE, ROCKER ARM
-
83303-032 SHAFT, ROCKER ARM - INTAKESHAFT, ROCKER ARM - INTAKE
-
93303-018 RETAINER, CAMSHAFTRETAINER, CAMSHAFT
-
103304-048 WASHER - 8 MMWASHER - 8 MM
-
113304-668 NUT, LOCKNUT, LOCK
-
123303-342 PIN, DOWELPIN, DOWEL
-
133303-033 SHAFT, ROCKER ARM - EXHAUSTSHAFT, ROCKER ARM - EXHAUST
-
143304-617 CAMSHAFTCAMSHAFT
-
153303-044 COTTER, VALVECOTTER, VALVE
-
163303-042 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
173303-041 SPRING, VALVE - INNERSPRING, VALVE - INNER
-
183303-040 SPRING, VALVE - OUTERSPRING, VALVE - OUTER
-
193303-043 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
203303-657 SEAL, VALVE STEMSEAL, VALVE STEM
-
213307-197 HEAD, CYLINDERHEAD, CYLINDER
-
223307-199 BOLT FLANGE SH 6X95BOLT FLANGE SH 6X95
-
233303-249 BOLT, STUDBOLT, STUD
-
243303-310 BOLT, STUDBOLT, STUD
-
253305-595 PIPE, INLET - ASSEMBLY (INC. 26)PIPE, INLET - ASSEMBLY (INC. 26)
-
263303-304 ...O-RING...O-RING
-
273304-654 NUT, LOCKNUT, LOCK
-
283307-050 BOLT FLANGE SH 6X25BOLT FLANGE SH 6X25
-
293303-511 INSULATOR, CARBURETOR - ASSEMBLY (INC. 30)INSULATOR, CARBURETOR - ASSEMBLY (INC. 30)
-
303304-596 ...O-RING...O-RING
-
313303-019 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
323303-038 VALVE, INTAKEVALVE, INTAKE
-
333303-039 VALVE, EXHAUSTVALVE, EXHAUST
-
343303-014 CYLINDERCYLINDER
-
353303-015 GASKET, CYLINDERGASKET, CYLINDER
-
363307-198 BOLT, FLANGE 6*50BOLT, FLANGE 6*50
-
373304-793 BOLT, FLANGEBOLT, FLANGE
-
383305-589 PIPE, AIR INTAKEPIPE, AIR INTAKE
-
393305-356 GASKETGASKET
-
403305-353 VALVE, REEDVALVE, REED
-
413305-354 COVER, REED VALVECOVER, REED VALVE
-
423306-646 BOLT FLANGE 6X40BOLT FLANGE 6X40
-
433304-114 BOLT, STUDBOLT, STUD
-
443303-732 GASKETGASKET
-
453304-030 NUT, CAPNUT, CAP
