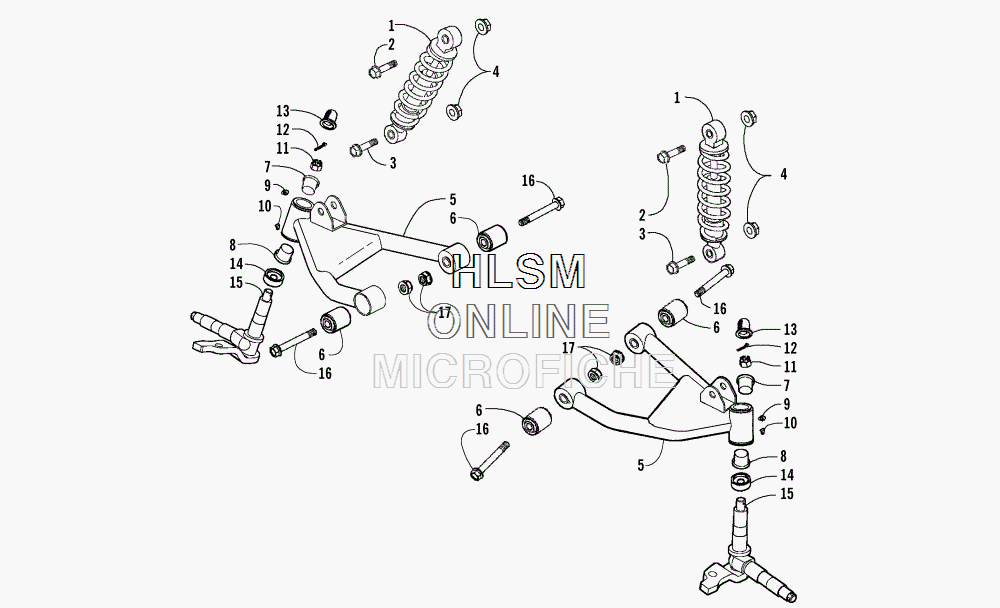

FRONT SUSPENSION ASSEMBLY для Arctic Cat 90 2X4 DVX GREEN - 2017 года выпуска
-
№АртикулНазвание
-
13306-739 SHOCK/SPRING ASSEMBLY WHITESHOCK/SPRING ASSEMBLY WHITE
-
23307-068 BOLT FLANGE 10X40BOLT FLANGE 10X40
-
33303-309 BOLT HEX 10X40BOLT HEX 10X40
-
43307-058 NUTNUT
-
53305-994 ARM, SWING - RIGHT (INC. 6-10)ARM, SWING - RIGHT (INC. 6-10)
-
53305-995 ARM, SWING - LEFT (INC. 6-10)ARM, SWING - LEFT (INC. 6-10)
-
63303-216 ...BUSHING...BUSHING
-
73303-218 ...BUSHING - UPPER...BUSHING - UPPER
-
83303-217 ...BUSHING - BOTTOM...BUSHING - BOTTOM
-
93303-393 ...FITTING, GREASE...FITTING, GREASE
-
103303-394 ...CAP, GREASE FITTING...CAP, GREASE FITTING
-
113303-329 NUT, CASTLENUT, CASTLE
-
123303-337 PIN, COTTERPIN, COTTER
-
133303-219 CAPCAP
-
143303-220 SEALSEAL
-
153303-178 SHAFT, STEERING - RIGHTSHAFT, STEERING - RIGHT
-
153303-180 SHAFT, STEERING - LEFTSHAFT, STEERING - LEFT
-
163304-595 BOLT, FLANGEBOLT, FLANGE
-
173304-031 U-NUTU-NUT
