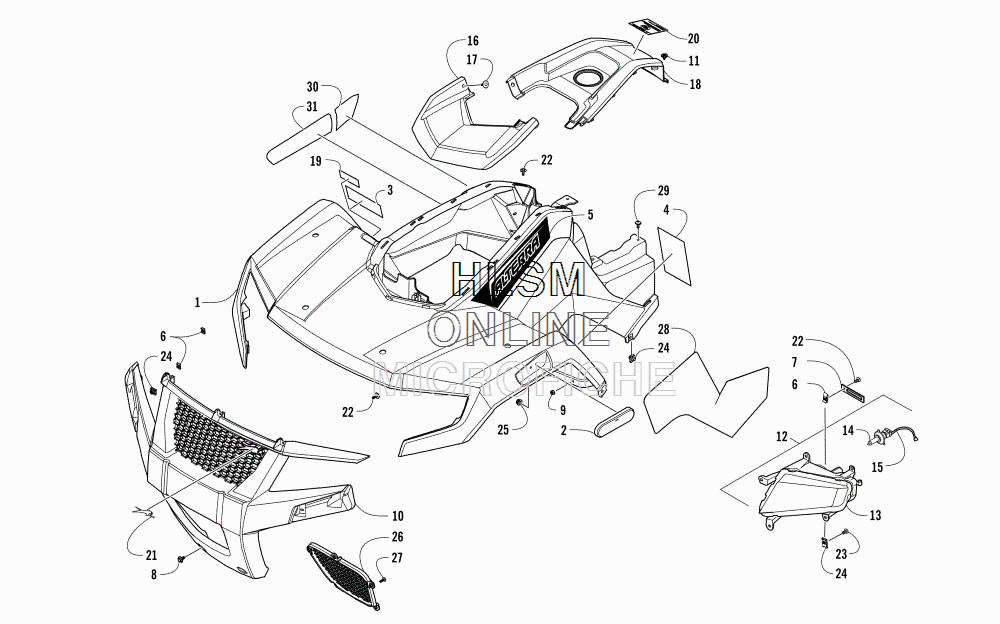

FRONT BODY AND HEADLIGHT ASSEMBLY для Arctic Cat ALTERRA 300 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
13307-803 PANEL, FENDER - ASSEMBLY (INC. 2-4)PANEL, FENDER - ASSEMBLY (INC. 2-4)
-
23307-825 ...REFLECTOR - FRONT...REFLECTOR - FRONT
-
34411-818 ...DECAL, WARNING - TURN/HILL...DECAL, WARNING - TURN/HILL
-
41411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
56411-029 DECAL, SIDE - UPPER LEFTDECAL, SIDE - UPPER LEFT
-
63304-061 NUT CLIP 5 MMNUT CLIP 5 MM
-
73304-157 CLAMP, ROUTINGCLAMP, ROUTING
-
83304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
93304-431 NUT, LOCKNUT, LOCK
-
103307-808 GRILLEGRILLE
-
113304-057 CLIP, FENDERCLIP, FENDER
-
123307-854 HEADLIGHT - ASSEMBLY - RIGHT (INC. 13, ONE NO. 14, AND ONE NO. 15)HEADLIGHT - ASSEMBLY - RIGHT (INC. 13, ONE NO. 14, AND ONE NO. 15)
-
123307-855 HEADLIGHT - ASSEMBLY - LEFT (INC. 13, ONE NO. 14, AND ONE NO. 15)HEADLIGHT - ASSEMBLY - LEFT (INC. 13, ONE NO. 14, AND ONE NO. 15)
-
133307-132 ...LENS, HEADLIGHT - RIGHT...LENS, HEADLIGHT - RIGHT
-
133307-133 ...LENS, HEADLIGHT - LEFT...LENS, HEADLIGHT - LEFT
-
143303-846 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
153305-136 ...SOCKET, HEADLIGHT - ASSEMBLY...SOCKET, HEADLIGHT - ASSEMBLY
-
163307-796 COVER, ACCESS - BLACKCOVER, ACCESS - BLACK
-
173303-592 CLIP, RETAININGCLIP, RETAINING
-
183307-795 COVER, GAS TANK (INC. 20)COVER, GAS TANK (INC. 20)
-
191411-577 DECAL, WARNING - NOT FOR HIGHWAYSDECAL, WARNING - NOT FOR HIGHWAYS
-
201411-804 DECAL, WARNING - AGE (16)DECAL, WARNING - AGE (16)
-
214411-479 DECAL, AIRCATDECAL, AIRCAT
-
223304-029 BOLT, WASHER - 5 X 16BOLT, WASHER - 5 X 16
-
233307-137 BOLT WASHER 6X25BOLT WASHER 6X25
-
243303-267 CLIP, U-NUTCLIP, U-NUT
-
253304-774 NUTNUT
-
263307-797 ACCESS PANEL - RADIATORACCESS PANEL - RADIATOR
-
273304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
283307-809 SHIELDSHIELD
-
293304-404 BOLT SPECIAL 6X16BOLT SPECIAL 6X16
-
305411-948 DECAL, SIDE - RIGHT, PIECE 1DECAL, SIDE - RIGHT, PIECE 1
-
316411-028 DECAL, SIDE - RIGHT, PIECE 2DECAL, SIDE - RIGHT, PIECE 2
