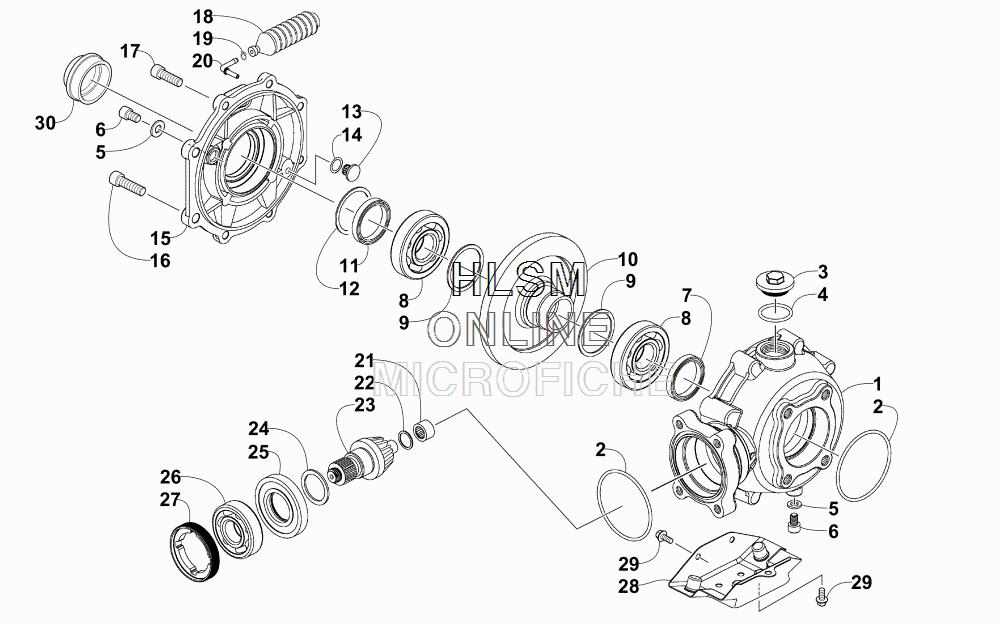

REAR DRIVE GEARCASE ASSEMBLY для Arctic Cat ALTERRA 300 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
-3305-894 COMPLETE GEARCASE ASSEMBLYCOMPLETE GEARCASE ASSEMBLY
-
13303-872 HOUSING, GEARCASEHOUSING, GEARCASE
-
23304-095 O-RINGO-RING
-
33303-021 CAPCAP
-
43304-096 O-RINGO-RING
-
53303-591 WASHERWASHER
-
63304-544 BOLT FLANGE 8X12BOLT FLANGE 8X12
-
73304-093 SEALSEAL
-
83304-194 BEARINGBEARING
-
93305-311 SHIM, 46 X 54 X 1.47 MMSHIM, 46 X 54 X 1.47 MM
-
93303-881 SHIM, 46 X 54 X 1.50 MMSHIM, 46 X 54 X 1.50 MM
-
93305-310 SHIM, 46 X 54 X 1.53 MMSHIM, 46 X 54 X 1.53 MM
-
103305-549 GEAR, RINGGEAR, RING
-
113304-092 SEALSEAL
-
123304-670 O-RINGO-RING
-
133303-878 BUTTON, THRUSTBUTTON, THRUST
-
143303-879 SHIMSHIM
-
153303-873 COVER, GEARCASECOVER, GEARCASE
-
163307-231 BOLT FLANGE 10X35 (G)BOLT FLANGE 10X35 (G)
-
173304-177 BOLT FLANGE 8X30MMBOLT FLANGE 8X30MM
-
183304-170 TUBE, BREATHER - REAR GEAR - ASSEMBLYTUBE, BREATHER - REAR GEAR - ASSEMBLY
-
193304-669 CLAMPCLAMP
-
203303-877 FITTING, ELBOWFITTING, ELBOW
-
213304-076 BEARINGBEARING
-
223303-874 O-RINGO-RING
-
233303-875 GEAR, PINIONGEAR, PINION
-
243305-313 SHIM, 31 X 40 X 1.97 MMSHIM, 31 X 40 X 1.97 MM
-
243305-312 SHIM, 31 X 40 X 2.00 MMSHIM, 31 X 40 X 2.00 MM
-
243303-880 SHIM, 31 X 40 X 2.03 MMSHIM, 31 X 40 X 2.03 MM
-
253304-085 SEALSEAL
-
263304-196 BEARINGBEARING
-
273304-027 NUT, RETAININGNUT, RETAINING
-
283303-871 PLATE, SKIDPLATE, SKID
-
293304-554 SCREW, CAPSCREW, CAP
-
303313-670 SEALSEAL
