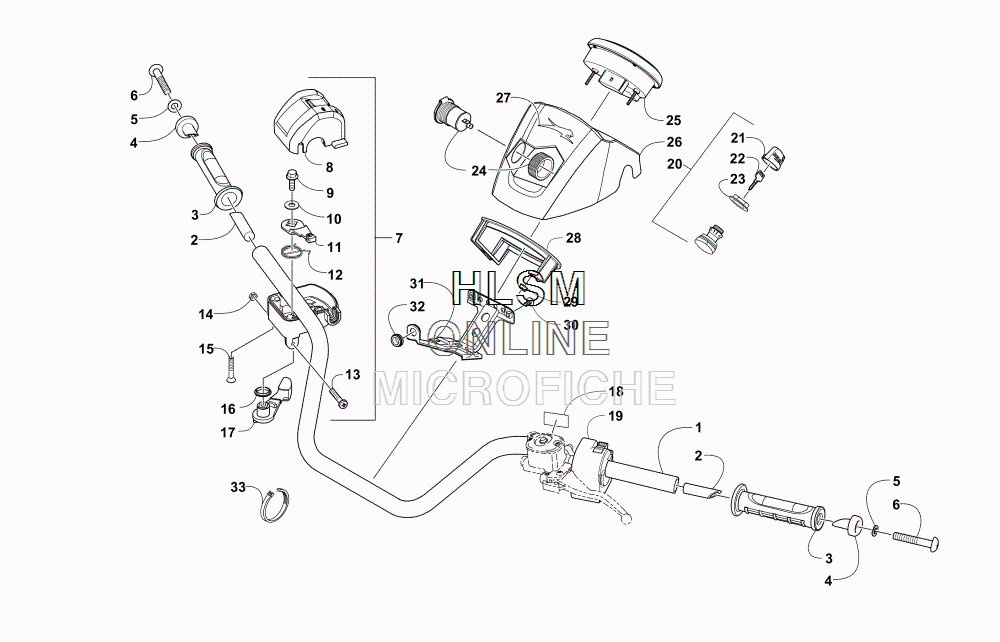

HANDLEBAR ASSEMBLY для Arctic Cat ALTERRA 500 RED - 2017 года выпуска
-
№АртикулНазвание
-
13313-059 HANDLEBARHANDLEBAR
-
20405-148 PLUG, HANDLEBARPLUG, HANDLEBAR
-
30405-147 GRIP, HANDLEBARGRIP, HANDLEBAR
-
40405-149 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
58050-247 WASHERWASHER
-
68477-845 SCREW, MACHINESCREW, MACHINE
-
73306-276 CASE, THROTTLE - ASSEMBLYCASE, THROTTLE - ASSEMBLY
-
93305-344 BOLT FLANGE 6X16BOLT FLANGE 6X16
-
103313-739 WASHERWASHER
-
113313-838 ARM, THROTTLEARM, THROTTLE
-
123313-839 SPRINGSPRING
-
133313-740 SCREW, MACHINESCREW, MACHINE
-
143305-832 NUTNUT
-
153313-741 SCREW, MACHINESCREW, MACHINE
-
163313-841 SEALSEAL
-
173313-842 LEVERLEVER
-
181411-865 DECAL, BRAKE LEVER LOCKDECAL, BRAKE LEVER LOCK
-
193313-428 CONTROL, LEFT - W/OVERRIDECONTROL, LEFT - W/OVERRIDE
-
203313-439 SWITCH, IGNITION - ASSEMBLY (INC. 21-23)SWITCH, IGNITION - ASSEMBLY (INC. 21-23)
-
210430-054 ...COVER, KEY...COVER, KEY
-
223409-007 ...KEY, BLANK (C SERIES)...KEY, BLANK (C SERIES)
-
230430-050 ...NUT, RETAINING...NUT, RETAINING
-
243313-468 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
250520-294 SPEEDOMETER - ASSEMBLYSPEEDOMETER - ASSEMBLY
-
263307-138 POD, INSTRUMENTPOD, INSTRUMENT
-
274411-479 DECAL, AIRCATDECAL, AIRCAT
-
280420-065 BRACKET, RETAININGBRACKET, RETAINING
-
290423-493 NUT W/WASHERNUT W/WASHER
-
303304-404 BOLT SPECIAL 6X16BOLT SPECIAL 6X16
-
313306-277 BRACKET, MOUNTING - POD (INC. 32)BRACKET, MOUNTING - POD (INC. 32)
-
323303-239 ...GROMMET...GROMMET
-
333303-839 TIE, CABLETIE, CABLE
