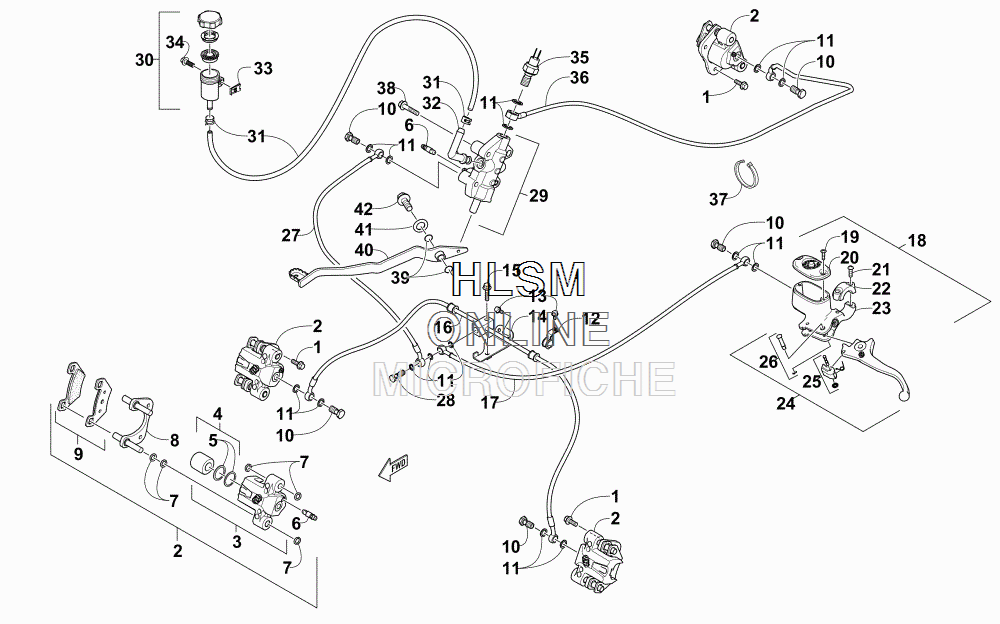

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat ALTERRA 500 RED - 2017 года выпуска
-
№АртикулНазвание
-
13307-069 BOLT FLANGE 8X20BOLT FLANGE 8X20
-
23323-230 CALIPER, BRAKE (RIGHT FRONT) (INC. 3-9)CALIPER, BRAKE (RIGHT FRONT) (INC. 3-9)
-
23323-231 CALIPER, BRAKE (FRONT LEFT AND REAR RIGHT) (INC. 3-9)CALIPER, BRAKE (FRONT LEFT AND REAR RIGHT) (INC. 3-9)
-
31436-160 ...HOUSING, CALIPER - ASSEMBLY (RIGHT FRONT) (INC. 4-6)...HOUSING, CALIPER - ASSEMBLY (RIGHT FRONT) (INC. 4-6)
-
31436-161 ...HOUSING, CALIPER - ASSEMBLY (FRONT LEFT & REAR RIGHT) (INC. 4-6)...HOUSING, CALIPER - ASSEMBLY (FRONT LEFT & REAR RIGHT) (INC. 4-6)
-
40502-606 ......PISTON/SEAL SET (INC. 5)......PISTON/SEAL SET (INC. 5)
-
50502-607 .........SEAL SET.........SEAL SET
-
60502-609 ......VALVE, BLEED......VALVE, BLEED
-
70502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
80502-605 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
91436-420 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
103307-067 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
113303-284 WASHER, CRUSHWASHER, CRUSH
-
123303-919 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
133304-553 BOLT, FLANGE - 6 X 12BOLT, FLANGE - 6 X 12
-
143313-523 BRACKET, MOUNTING - BRAKE HOSE ASSEMBLYBRACKET, MOUNTING - BRAKE HOSE ASSEMBLY
-
153305-789 BOLT FLANGE 6X30 (G)BOLT FLANGE 6X30 (G)
-
163313-750 HOSE (JUNCTION), BRAKE - ASSEMBLYHOSE (JUNCTION), BRAKE - ASSEMBLY
-
173313-422 HOSE, BRAKEHOSE, BRAKE
-
183313-316 CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 19-26)CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 19-26)
-
190502-566 ...SCREW, MACHINE - KIT...SCREW, MACHINE - KIT
-
200502-868 ...COVER, RESERVOIR...COVER, RESERVOIR
-
210502-568 ...SCREW, MACHINE - KIT...SCREW, MACHINE - KIT
-
220502-869 ...CLAMP, BRAKE...CLAMP, BRAKE
-
230502-704 ...MASTER CYLINDER ASSEMBLY...MASTER CYLINDER ASSEMBLY
-
241502-904 ...LEVER ASSEMBLY - KIT (INC. 25-26)...LEVER ASSEMBLY - KIT (INC. 25-26)
-
251502-905 ......LOCK, BRAKE LEVER - KIT......LOCK, BRAKE LEVER - KIT
-
260502-580 ......LEVER PIN - KIT......LEVER PIN - KIT
-
273313-423 HOSE, BRAKEHOSE, BRAKE
-
283304-674 BOLT, OIL - 10 X 33BOLT, OIL - 10 X 33
-
293313-478 BRAKE ASSEMBLY (INC. 30-32)BRAKE ASSEMBLY (INC. 30-32)
-
301502-141 ...RESERVOIR, BRAKE - W/CLAMP...RESERVOIR, BRAKE - W/CLAMP
-
313313-489 ...HOSE, BRAKE FLUID RESERVOIR - W/CLAMPS...HOSE, BRAKE FLUID RESERVOIR - W/CLAMPS
-
321502-296 ...ADAPTER, HOSE...ADAPTER, HOSE
-
333304-061 NUT CLIP 5 MMNUT CLIP 5 MM
-
343306-146 BOLT-WASH 5X22BOLT-WASH 5X22
-
353313-820 SWITCH, BRAKESWITCH, BRAKE
-
363313-315 HOSE, BRAKEHOSE, BRAKE
-
370123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
383303-386 BOLT, FLANGEBOLT, FLANGE
-
391602-213 O-RINGO-RING
-
403313-156 LEVER, BRAKE - BLACKLEVER, BRAKE - BLACK
-
413304-138 WASHERWASHER
-
423304-543 BOLT FLANGE 8X16BOLT FLANGE 8X16
