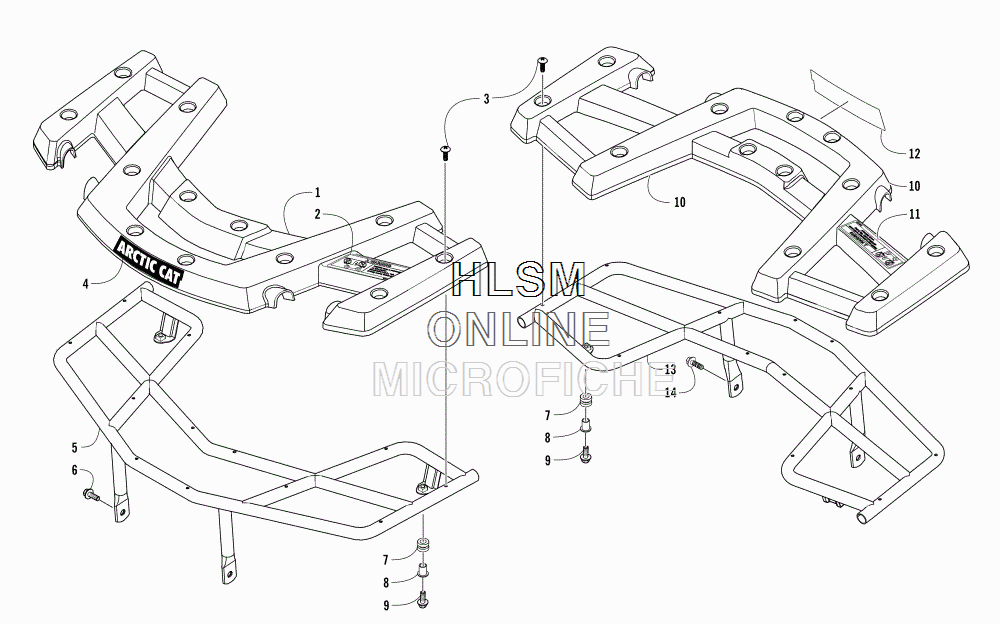

FRONT AND REAR RACK ASSEMBLY для Arctic Cat ALTERRA 90 RED - 2017 года выпуска
-
№АртикулНазвание
-
13307-695 PANEL, FRONT RACK (INC. 2)PANEL, FRONT RACK (INC. 2)
-
25411-394 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
33304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
45411-375 DECAL, "ARCTIC CAT" - FRONTDECAL, "ARCTIC CAT" - FRONT
-
53307-690 RACK, FRONTRACK, FRONT
-
63304-543 BOLT FLANGE 8X16BOLT FLANGE 8X16
-
73303-227 BUSHINGBUSHING
-
83303-233 SPACERSPACER
-
93304-586 BOLT WASHER 6X20BOLT WASHER 6X20
-
103307-696 PANEL, REAR RACK (INC. 11)PANEL, REAR RACK (INC. 11)
-
111411-317 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
125411-393 DECAL, "ARCTIC CAT" - REARDECAL, "ARCTIC CAT" - REAR
-
133307-691 RACK, REARRACK, REAR
-
143303-313 BOLT, WASHERBOLT, WASHER
