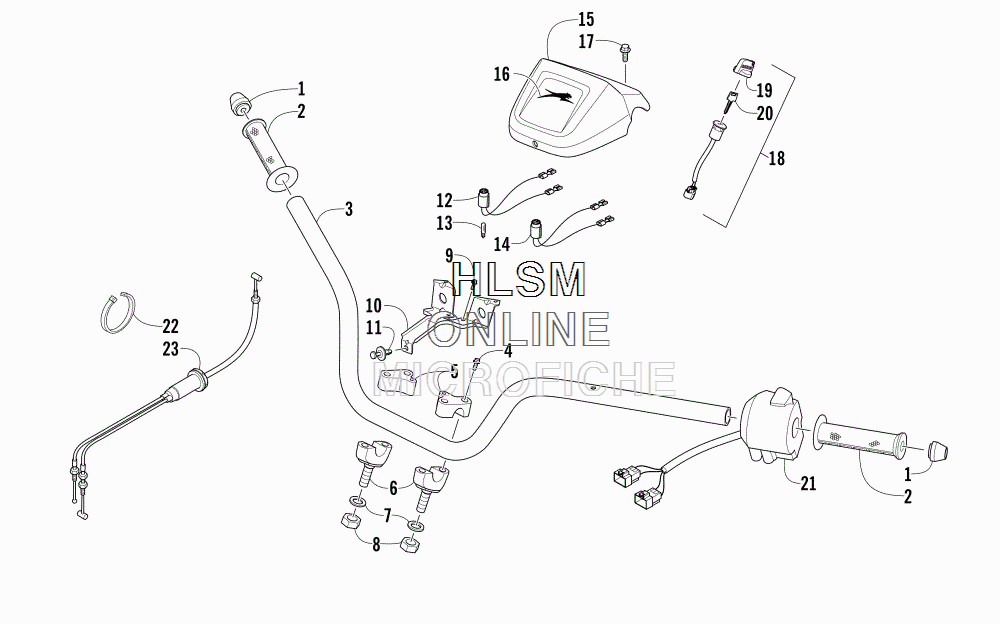

HANDLEBAR AND CONTROL ASSEMBLY для Arctic Cat ALTERRA 90 RED - 2017 года выпуска
-
№АртикулНазвание
-
13303-196 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
23305-905 GRIP, HANDLEGRIP, HANDLE
-
33307-094 HANDLEBARHANDLEBAR
-
43303-398 BOLT SOCKET 6X25BOLT SOCKET 6X25
-
53303-197 CLAMP, HANDLEBAR - UPPER RIGHTCLAMP, HANDLEBAR - UPPER RIGHT
-
53303-198 CLAMP, HANDLEBAR - UPPER LEFTCLAMP, HANDLEBAR - UPPER LEFT
-
63303-199 CLAMP, HANDLEBAR - LOWERCLAMP, HANDLEBAR - LOWER
-
73304-136 WASHERWASHER
-
83305-517 NUTNUT
-
93304-553 BOLT, FLANGE - 6 X 12BOLT, FLANGE - 6 X 12
-
103307-649 BRACKET, HANDLEBAR COVERBRACKET, HANDLEBAR COVER
-
113303-592 CLIP, RETAININGCLIP, RETAINING
-
123305-830 LIGHT, INDICATOR - NEUTRAL (INC. ONE NO. 13)LIGHT, INDICATOR - NEUTRAL (INC. ONE NO. 13)
-
133305-867 ...BULB...BULB
-
143305-831 LIGHT, INDICATOR - REVERSE (INC. ONE NO. 13)LIGHT, INDICATOR - REVERSE (INC. ONE NO. 13)
-
153307-650 COVER, HANDLEBARCOVER, HANDLEBAR
-
164411-479 DECAL, AIRCATDECAL, AIRCAT
-
173304-029 BOLT, WASHER - 5 X 16BOLT, WASHER - 5 X 16
-
183305-998 SWITCH, IGNITION - ASSEMBLY (INC. 19-20)SWITCH, IGNITION - ASSEMBLY (INC. 19-20)
-
193304-522 ...COVER, KEY...COVER, KEY
-
203305-999 ...KEY, IGNITION - RIGHT-SIDE CUT...KEY, IGNITION - RIGHT-SIDE CUT
-
203306-001 ...KEY, IGNITION - LEFT-SIDE CUT...KEY, IGNITION - LEFT-SIDE CUT
-
213303-424 SWITCH, HANDLEBAR - ASSEMBLYSWITCH, HANDLEBAR - ASSEMBLY
-
223303-289 CABLE TIECABLE TIE
-
231502-096 CABLE/CAP, THROTTLE - ASSEMBLYCABLE/CAP, THROTTLE - ASSEMBLY
