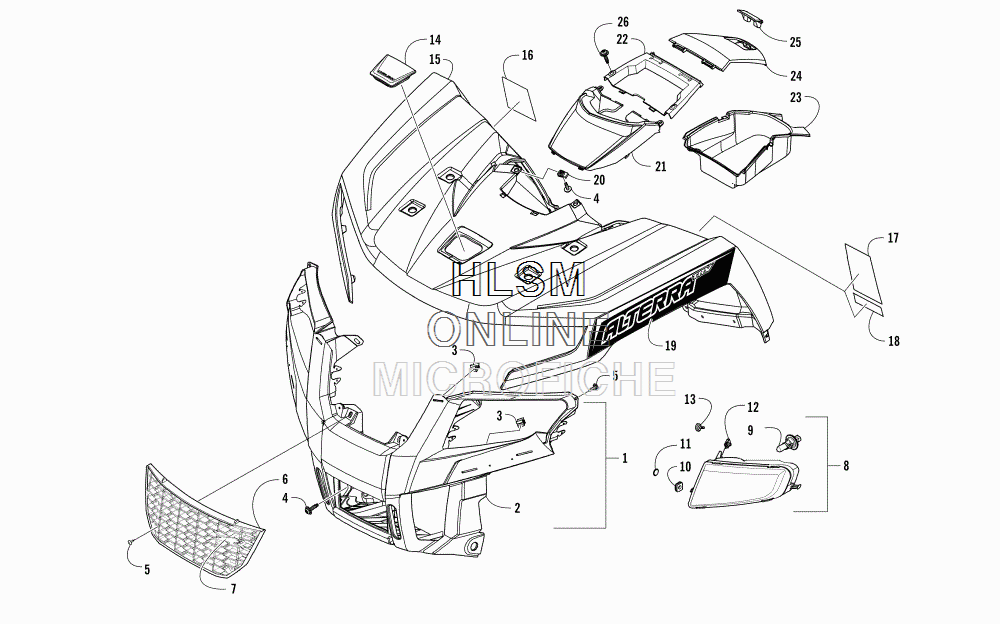

FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES для Arctic Cat ALTERRA TRV 700 XT EPS RED - 2017 года выпуска
-
№АртикулНазвание
-
17506-049 FASCIA, FRONT W/REFLECTORS (INC. 2)FASCIA, FRONT W/REFLECTORS (INC. 2)
-
25411-460 ...DECAL, REFLECTOR - RIGHT...DECAL, REFLECTOR - RIGHT
-
25411-461 ...DECAL, REFLECTOR - LEFT...DECAL, REFLECTOR - LEFT
-
31423-321 CLIP, RETAININGCLIP, RETAINING
-
40423-609 SCREW, MACHINESCREW, MACHINE
-
51423-284 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
64406-990 GRILLE, FRONTGRILLE, FRONT
-
74411-479 DECAL, AIRCATDECAL, AIRCAT
-
80509-102 HEADLIGHT, HALOGEN - ASSEMBLY - RIGHT (INC. ONE NO. 12)HEADLIGHT, HALOGEN - ASSEMBLY - RIGHT (INC. ONE NO. 12)
-
80509-103 HEADLIGHT, HALOGEN - ASSEMBLY - LEFT (INC. ONE NO. 12)HEADLIGHT, HALOGEN - ASSEMBLY - LEFT (INC. ONE NO. 12)
-
90409-182 BULB, HEADLIGHT - H13BULB, HEADLIGHT - H13
-
104406-722 GROMMET - RIGHTGROMMET - RIGHT
-
104406-723 GROMMET - LEFTGROMMET - LEFT
-
111423-326 O-RINGO-RING
-
121623-637 CLIP, U-NUTCLIP, U-NUT
-
132623-113 KNOB, ADJUSTERKNOB, ADJUSTER
-
144406-784 PLUG, ACCESSPLUG, ACCESS
-
157506-591 FENDER, FRONT - RED (INC. 16-18)FENDER, FRONT - RED (INC. 16-18)
-
165411-515 ...DECAL, WARNING - FRONT FENDER...DECAL, WARNING - FRONT FENDER
-
172411-259 ...DECAL, WARNING - TRV GENERAL 16...DECAL, WARNING - TRV GENERAL 16
-
181411-574 ...DECAL, WARNING - OFF-ROAD ONLY...DECAL, WARNING - OFF-ROAD ONLY
-
195411-554 DECAL, FENDER - RIGHT - REDDECAL, FENDER - RIGHT - RED
-
195411-555 DECAL, FENDER - LEFT - REDDECAL, FENDER - LEFT - RED
-
200423-577 CLIP, U-NUTCLIP, U-NUT
-
215406-211 CONSOLE, FRONTCONSOLE, FRONT
-
225406-987 CONSOLE, REARCONSOLE, REAR
-
235406-204 BOX, STORAGEBOX, STORAGE
-
245406-208 LID, STORAGE BOXLID, STORAGE BOX
-
255406-207 LATCH, STORAGE BOXLATCH, STORAGE BOX
-
261423-221 SCREW, CAPSCREW, CAP
