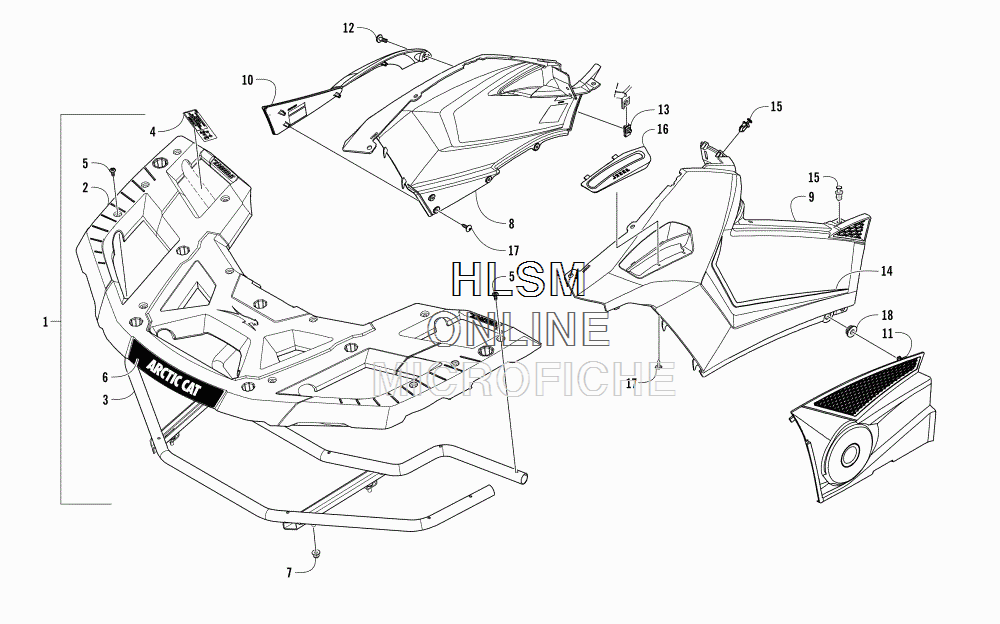

FRONT RACK AND SIDE PANEL ASSEMBLIES для Arctic Cat ALTERRA TRV 700 XT EPS RED - 2017 года выпуска
-
№АртикулНазвание
-
17506-773 RACK, FRONT - ASSEMBLY (INC. 2-5)RACK, FRONT - ASSEMBLY (INC. 2-5)
-
25506-672 ...RACK, W/OVERMOLD...RACK, W/OVERMOLD
-
37506-337 ...TUBE, RACK - BLACK...TUBE, RACK - BLACK
-
44411-678 ...DECAL, WARNING - ENGLISH...DECAL, WARNING - ENGLISH
-
51423-301 ...SCREW, MACHINE...SCREW, MACHINE
-
64411-879 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
78432-802 NUT, HEXNUT, HEX
-
87506-628 PANEL, SIDE - RIGHT - REDPANEL, SIDE - RIGHT - RED
-
97506-629 PANEL, SIDE - LEFT - REDPANEL, SIDE - LEFT - RED
-
105406-206 PANEL, ENGINE COVER - RIGHTPANEL, ENGINE COVER - RIGHT
-
115406-209 PANEL, ENGINE COVER - LEFTPANEL, ENGINE COVER - LEFT
-
120423-609 SCREW, MACHINESCREW, MACHINE
-
130423-577 CLIP, U-NUTCLIP, U-NUT
-
145411-558 DECAL - RIGHT - REDDECAL - RIGHT - RED
-
145411-559 DECAL - LEFT - REDDECAL - LEFT - RED
-
151423-276 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
162402-327 GATE, SHIFTGATE, SHIFT
-
171423-284 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180423-678 GROMMETGROMMET
