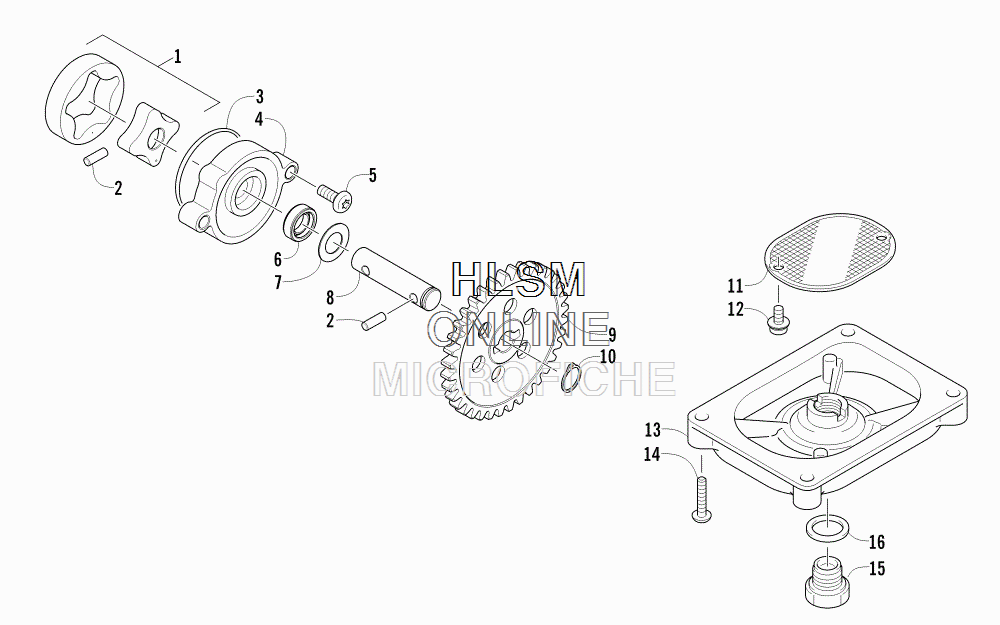

OIL PUMP ASSEMBLY для Arctic Cat PROWLER 1000 XT GREEN - 2017 года выпуска
-
№АртикулНазвание
-
10812-041 GEROTOR - SETGEROTOR - SET
-
20829-009 PINPIN
-
30812-048 O-RINGO-RING
-
40812-040 HOUSING, OIL PUMPHOUSING, OIL PUMP
-
58468-625 SCREW, MACHINESCREW, MACHINE
-
60812-047 SEAL, OIL PUMPSEAL, OIL PUMP
-
70828-007 WASHERWASHER
-
80812-046 SHAFT, OIL PUMPSHAFT, OIL PUMP
-
90812-045 GEAR, DRIVENGEAR, DRIVEN
-
100831-002 RING, RETAININGRING, RETAINING
-
110812-057 STRAINER, OILSTRAINER, OIL
-
120826-040 SCREW, MACHINESCREW, MACHINE
-
130812-053 CAP, OIL STRAINERCAP, OIL STRAINER
-
148468-625 SCREW, MACHINESCREW, MACHINE
-
150812-006 PLUG, DRAINPLUG, DRAIN
-
160830-017 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
