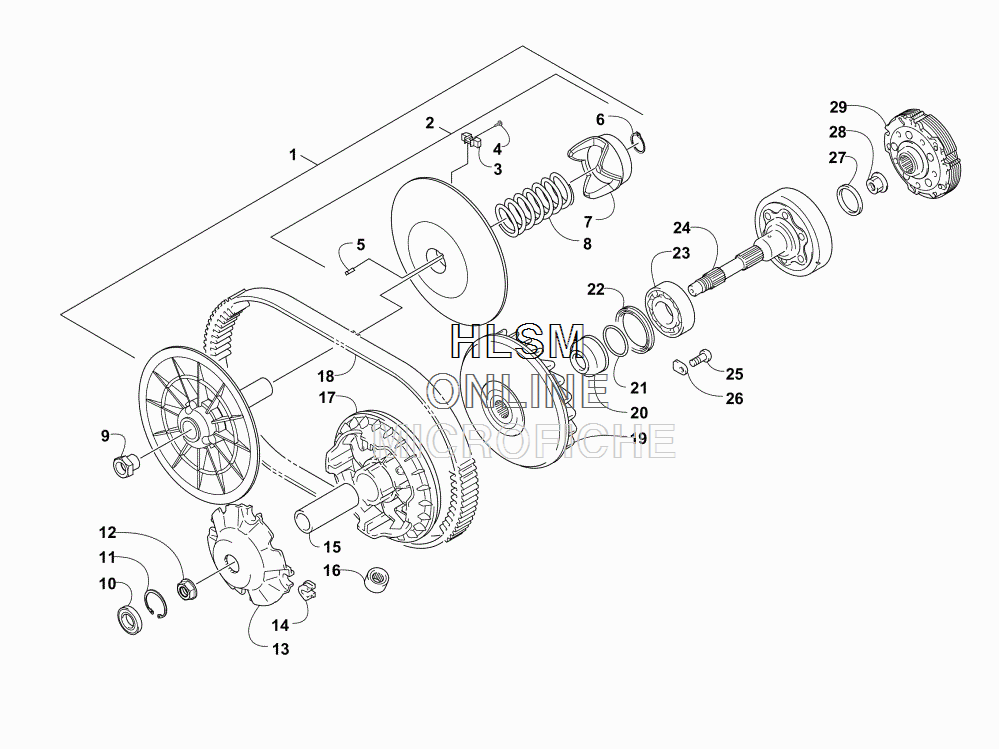

TRANSMISSION ASSEMBLY для Arctic Cat PROWLER 1000 XT GREEN - 2017 года выпуска
-
№АртикулНазвание
-
10823-535 PULLEY, DRIVEN - ASSEMBLY (INC. 2-9)PULLEY, DRIVEN - ASSEMBLY (INC. 2-9)
-
20823-554 ...PULLEY, DRIVEN - UNCALIBRATED (INC. 3-6)...PULLEY, DRIVEN - UNCALIBRATED (INC. 3-6)
-
30823-454 ......SHOE, CAM......SHOE, CAM
-
40823-177 ......SCREW, MACHINE......SCREW, MACHINE
-
50823-383 ......KEY......KEY
-
60823-455 ......RING, SNAP - EXTERNAL......RING, SNAP - EXTERNAL
-
70823-453 ...CAM...CAM
-
80823-377 ...SPRING - BLACK...SPRING - BLACK
-
90823-457 ...NUT, DRIVEN PULLEY...NUT, DRIVEN PULLEY
-
100832-060 BEARINGBEARING
-
110831-078 RING, RETAININGRING, RETAINING
-
120827-073 NUTNUT
-
130823-276 PLATE, MOVABLE DRIVE FACEPLATE, MOVABLE DRIVE FACE
-
140823-277 DAMPER, MOVABLE DRIVE FACEDAMPER, MOVABLE DRIVE FACE
-
150823-358 SPACER, MOVABLE DRIVE FACESPACER, MOVABLE DRIVE FACE
-
160823-170 ROLLER, MOVABLE DRIVE (GREEN) (PM 23.5G)ROLLER, MOVABLE DRIVE (GREEN) (PM 23.5G)
-
170823-273 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
180823-231 BELT, DRIVEBELT, DRIVE
-
190823-272 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
200823-015 SPACER, FIXED DRIVE FACESPACER, FIXED DRIVE FACE
-
210470-531 O-RINGO-RING
-
220830-244 SEALSEAL
-
230832-009 BEARINGBEARING
-
240823-556 HOUSING, CLUTCH - ASSEMBLYHOUSING, CLUTCH - ASSEMBLY
-
250826-029 SCREW, MACHINESCREW, MACHINE
-
260822-010 RETAINER, BEARINGRETAINER, BEARING
-
270830-189 SEALSEAL
-
280827-011 NUTNUT
-
290823-484 CLUTCH, CENTRIFUGAL - 6 PLATECLUTCH, CENTRIFUGAL - 6 PLATE
