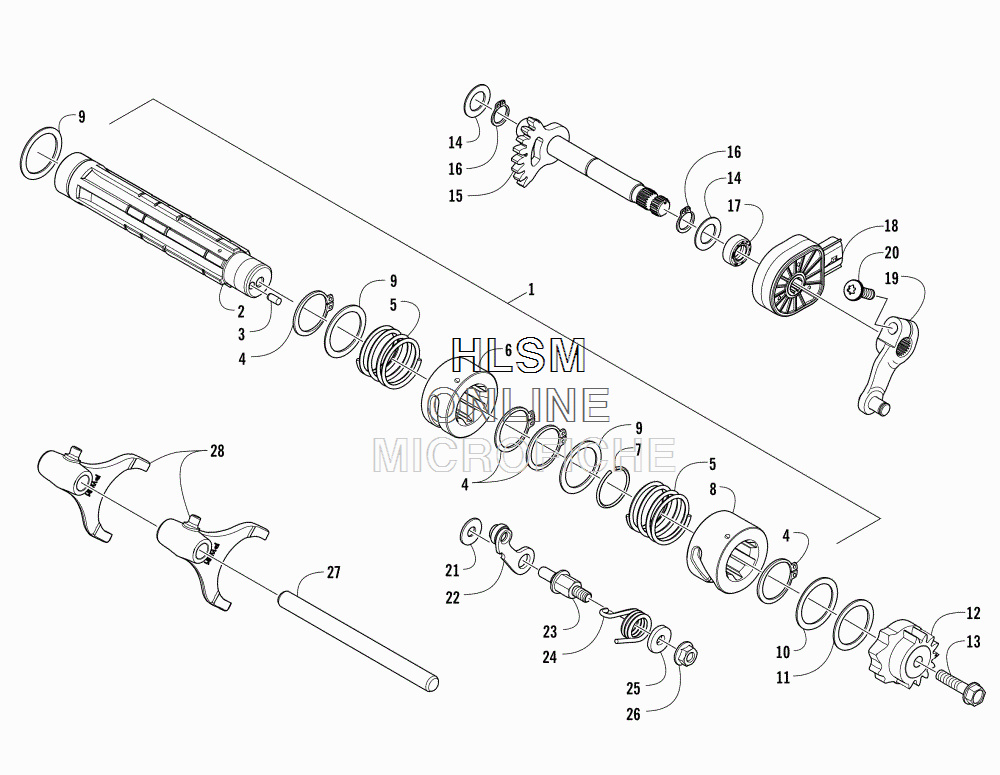

GEAR SHIFTING ASSEMBLY для Arctic Cat PROWLER 500 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
13307-280 SHAFT, GEAR SHIFT - ASSEMBLY (INC. 2-8 AND TWO NO. 9)SHAFT, GEAR SHIFT - ASSEMBLY (INC. 2-8 AND TWO NO. 9)
-
23306-852 ...SHAFT, GEAR SHIFT...SHAFT, GEAR SHIFT
-
33304-439 ...PIN, DOWEL...PIN, DOWEL
-
43304-147 ...CIRCLIP, EXTERNAL - 25 MM...CIRCLIP, EXTERNAL - 25 MM
-
50818-060 ...SPRING...SPRING
-
63306-851 ...CAM, REVERSE...CAM, REVERSE
-
70831-016 ...C-RING...C-RING
-
83307-279 ...CAM, GEAR SHIFT...CAM, GEAR SHIFT
-
90828-079 ...WASHER...WASHER
-
100828-081 WASHER, THRUSTWASHER, THRUST
-
110828-080 WASHER, THRUSTWASHER, THRUST
-
120818-061 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
133304-569 BOLT FLANGE 6X25BOLT FLANGE 6X25
-
140828-084 WASHERWASHER
-
150818-113 SHAFT, SUB-GEAR SHIFT (INC. 16)SHAFT, SUB-GEAR SHIFT (INC. 16)
-
160831-056 ...RING, RETAINING...RING, RETAINING
-
170830-179 SEALSEAL
-
183306-259 SWITCH, GEAR POSITIONSWITCH, GEAR POSITION
-
193307-516 ARM, GEAR SHIFTARM, GEAR SHIFT
-
203304-551 BOLT, FLANGE - 6 X 22BOLT, FLANGE - 6 X 22
-
210828-083 WASHERWASHER
-
220818-084 STOPPER, CAMSTOPPER, CAM
-
230818-062 SUPPORT, CAM STOPPERSUPPORT, CAM STOPPER
-
240818-109 SPRINGSPRING
-
250828-082 WASHERWASHER
-
263304-654 NUT, LOCKNUT, LOCK
-
270818-021 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
280818-088 FORK, SHIFTFORK, SHIFT
