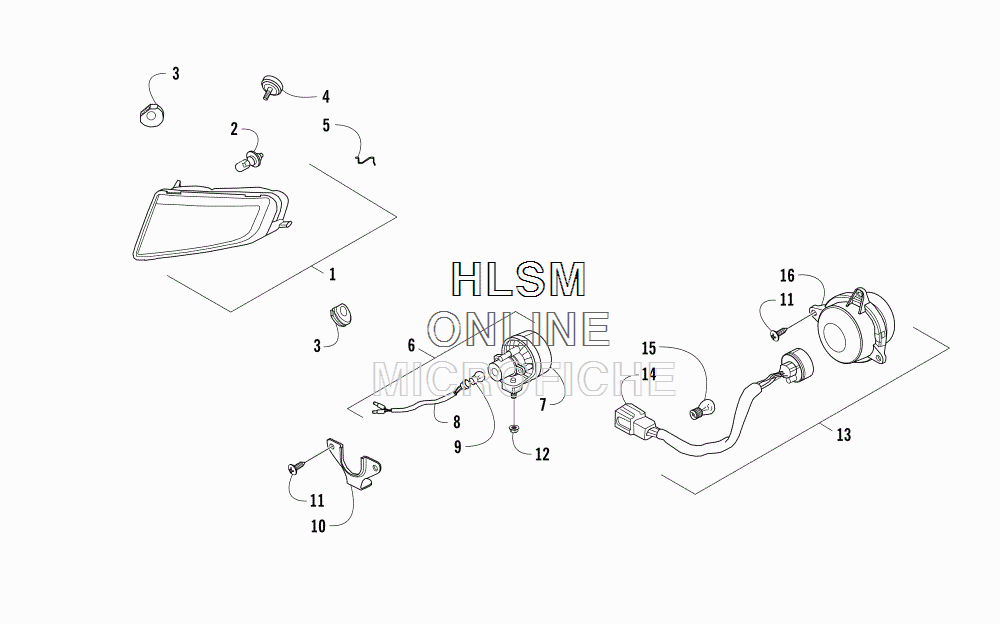

HEADLIGHT AND TAILLIGHT ASSEMBLY для Arctic Cat PROWLER 500 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
10509-100 HEADLIGHT, HALOGEN - ASSEMBLY - RIGHT (INC. 2)HEADLIGHT, HALOGEN - ASSEMBLY - RIGHT (INC. 2)
-
10509-101 HEADLIGHT, HALOGEN - ASSEMBLY - LEFT (INC. 2)HEADLIGHT, HALOGEN - ASSEMBLY - LEFT (INC. 2)
-
20409-182 ...BULB, HEADLIGHT - H13...BULB, HEADLIGHT - H13
-
33307-322 GROMMET, HEADLIGHT - RIGHTGROMMET, HEADLIGHT - RIGHT
-
33307-323 GROMMET, HEADLIGHT - LEFTGROMMET, HEADLIGHT - LEFT
-
43307-325 SCREW, KNOBSCREW, KNOB
-
53307-321 WIREFORM, HEADLIGHTWIREFORM, HEADLIGHT
-
63306-515 REVERSE LIGHT - ASSEMBLY (INC. 7-9)REVERSE LIGHT - ASSEMBLY (INC. 7-9)
-
73306-506 ...LENS ASSEMBLY...LENS ASSEMBLY
-
83306-516 ...HARNESS, RUNNING LIGHT...HARNESS, RUNNING LIGHT
-
93313-508 ...BULB...BULB
-
103307-554 BRACKETBRACKET
-
113304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
123304-774 NUTNUT
-
133306-510 TAILLIGHT ASSEMBLY - RIGHT (INC. 14-16)TAILLIGHT ASSEMBLY - RIGHT (INC. 14-16)
-
133306-511 TAILLIGHT ASSEMBLY - LEFT (INC. 14-16)TAILLIGHT ASSEMBLY - LEFT (INC. 14-16)
-
143360-514 ...HARNESS, TAILLIGHT...HARNESS, TAILLIGHT
-
153303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
163306-512 ...LENS ASSEMBLY - RIGHT...LENS ASSEMBLY - RIGHT
-
163306-513 ...LENS ASSEMBLY - LEFT...LENS ASSEMBLY - LEFT
