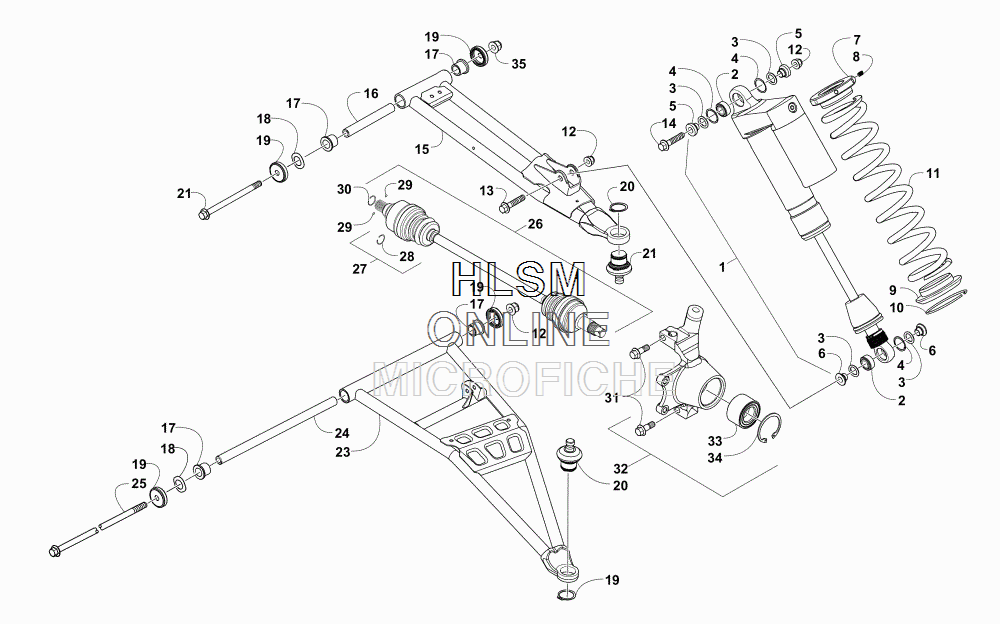

FRONT SUSPENSION ASSEMBLY для Arctic Cat WILDCAT SPORT XT EPS BLACK - 2017 года выпуска
-
№АртикулНазвание
-
10403-476 SHOCK ABSORBER (INC. 2-10)SHOCK ABSORBER (INC. 2-10)
-
20403-506 ...BEARING...BEARING
-
30403-504 ...O-RING...O-RING
-
40403-507 ...CLIP...CLIP
-
50403-508 ...SPACER...SPACER
-
60403-505 ...SPACER...SPACER
-
70403-500 ...NUT, RETAINER - SPRING...NUT, RETAINER - SPRING
-
80403-501 ...SCREW, SET...SCREW, SET
-
90403-502 ...RETAINER...RETAINER
-
100403-503 ...CLIP...CLIP
-
111503-248 SPRING, SUSPENSION - GREENSPRING, SUSPENSION - GREEN
-
121423-334 NUT, LOCKNUT, LOCK
-
138409-045 SCREW, CAPSCREW, CAP
-
148409-055 SCREW, CAPSCREW, CAP
-
151503-332 A-ARM, UPPER RIGHT - BLACK (INC.16-21)A-ARM, UPPER RIGHT - BLACK (INC.16-21)
-
151503-333 A-ARM, UPPER LEFT - BLACK (INC.16-21)A-ARM, UPPER LEFT - BLACK (INC.16-21)
-
160403-541 ...SLEEVE...SLEEVE
-
172402-077 ...BEARING...BEARING
-
180828-071 ...WASHER...WASHER
-
191423-159 ...SEAL...SEAL
-
200423-009 ...RING, RETAINING...RING, RETAINING
-
210405-483 ...BALL JOINT...BALL JOINT
-
221423-389 SCREW, CAPSCREW, CAP
-
231503-324 A-ARM, LOWER RIGHT - BLACK (INC. 17-21 AND 24)A-ARM, LOWER RIGHT - BLACK (INC. 17-21 AND 24)
-
231503-325 A-ARM, LOWER LEFT - BLACK (INC. 17-21 AND 24)A-ARM, LOWER LEFT - BLACK (INC. 17-21 AND 24)
-
240404-502 ...SLEEVE...SLEEVE
-
251423-249 SCREW, CAPSCREW, CAP
-
262502-354 KIT, HALFSHAFT (INC. 27-30)KIT, HALFSHAFT (INC. 27-30)
-
272436-112 ...REPAIR KIT, BOOT (INC. 28)...REPAIR KIT, BOOT (INC. 28)
-
281441-988 ......CIRCLIP......CIRCLIP
-
291402-885 ...PIN, TRANSFER...PIN, TRANSFER
-
301402-889 ...CIRCLIP...CIRCLIP
-
310423-998 SCREW, SHOULDERSCREW, SHOULDER
-
320503-912 KNUCKLE - ASSEMBLY - RIGHT (INC. 33-34)KNUCKLE - ASSEMBLY - RIGHT (INC. 33-34)
-
320503-913 KNUCKLE - ASSEMBLY - LEFT (INC. 33-34)KNUCKLE - ASSEMBLY - LEFT (INC. 33-34)
-
331402-809 ...BEARING...BEARING
-
340423-423 ...RING, RETAINING...RING, RETAINING
-
351423-390 NUT, LOCKNUT, LOCK
