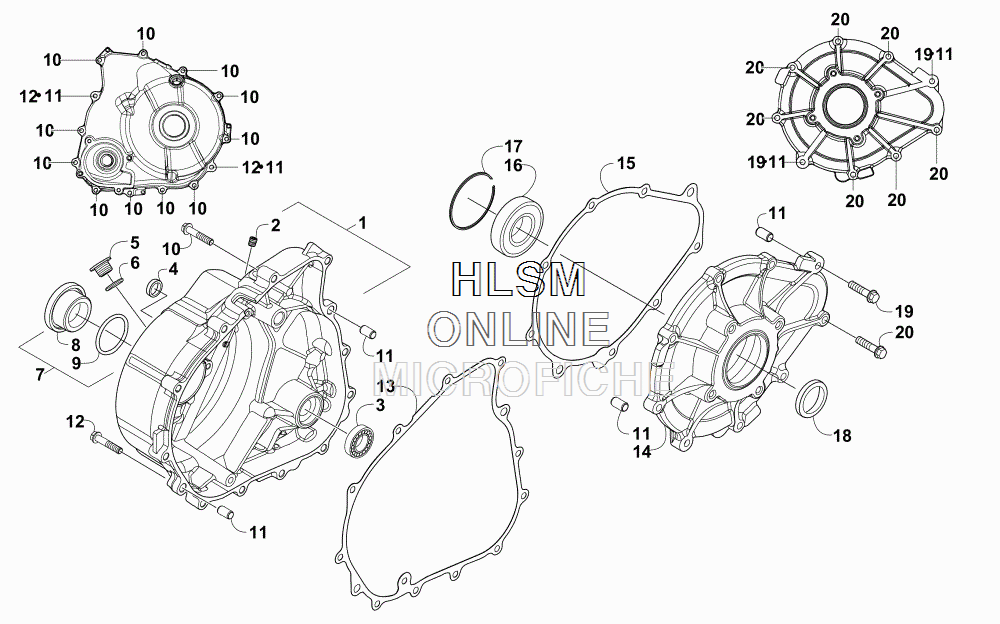

MAGNETO AND PTO COVERS для Arctic Cat WILDCAT SPORT XT EPS BLACK - 2017 года выпуска
-
№АртикулНазвание
-
13306-976 COVER, CRANKCASE - RIGHT - ASSEMBLY (INC. 2-4)COVER, CRANKCASE - RIGHT - ASSEMBLY (INC. 2-4)
-
23304-065 ...PLUG...PLUG
-
33306-977 ...BEARING...BEARING
-
40830-207 ...SEAL, OIL...SEAL, OIL
-
53304-012 CAPCAP
-
63304-099 O-RINGO-RING
-
70812-087 PLUG - ASSEMBLY (INC. 8-9)PLUG - ASSEMBLY (INC. 8-9)
-
80812-088 ...PLUG...PLUG
-
90835-016 ...O-RING...O-RING
-
100826-136 BOLT, M6X1.0X30BOLT, M6X1.0X30
-
113303-341 PIN, DOWELPIN, DOWEL
-
123303-386 BOLT, FLANGEBOLT, FLANGE
-
133306-912 GASKET, COVER - RIGHTGASKET, COVER - RIGHT
-
143306-793 COVER, CRANKCASE - LEFTCOVER, CRANKCASE - LEFT
-
153306-913 GASKET, COVER - LEFTGASKET, COVER - LEFT
-
160832-087 BEARINGBEARING
-
173307-037 CLIP, RETAINERCLIP, RETAINER
-
183307-034 SEAL, OILSEAL, OIL
-
193305-945 BOLT FLANGE SH 6X32BOLT FLANGE SH 6X32
-
203303-384 BOLT, FLANGEBOLT, FLANGE
