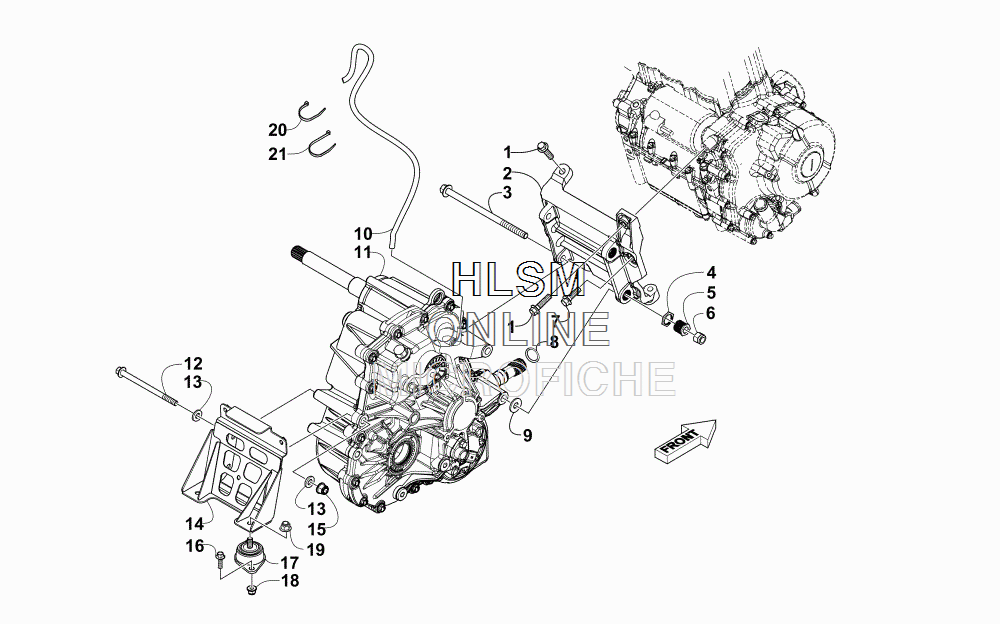

REAR DRIVE SYSTEM для Arctic Cat WILDCAT TRAIL LTD WHITE - 2017 года выпуска
-
№АртикулНазвание
-
18409-041 SCREW, CAPSCREW, CAP
-
20408-040 BRACKET, ENGINE/TRANSAXLEBRACKET, ENGINE/TRANSAXLE
-
31423-243 SCREW, CAPSCREW, CAP
-
41423-245 NUT, JAMNUT, JAM
-
51423-244 NUT, ADJUSTERNUT, ADJUSTER
-
61623-965 NUT, LOCKNUT, LOCK
-
78413-031 SCREW, CAPSCREW, CAP
-
81423-090 O-RINGO-RING
-
90623-728 WASHERWASHER
-
100410-070 HOSE - 25 FTHOSE - 25 FT
-
112502-305 TRANSAXLE, REARTRANSAXLE, REAR
-
121623-729 SCREW, CAPSCREW, CAP
-
130423-426 WASHERWASHER
-
140508-016 BRACKET, TRANSAXLEBRACKET, TRANSAXLE
-
151423-334 NUT, LOCKNUT, LOCK
-
168408-825 SCREW, CAPSCREW, CAP
-
170408-064 MOUNT, ENGINE - W/STUDMOUNT, ENGINE - W/STUD
-
188427-802 NUTNUT
-
198427-002 NUT, LOCKNUT, LOCK
-
200123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
210123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
