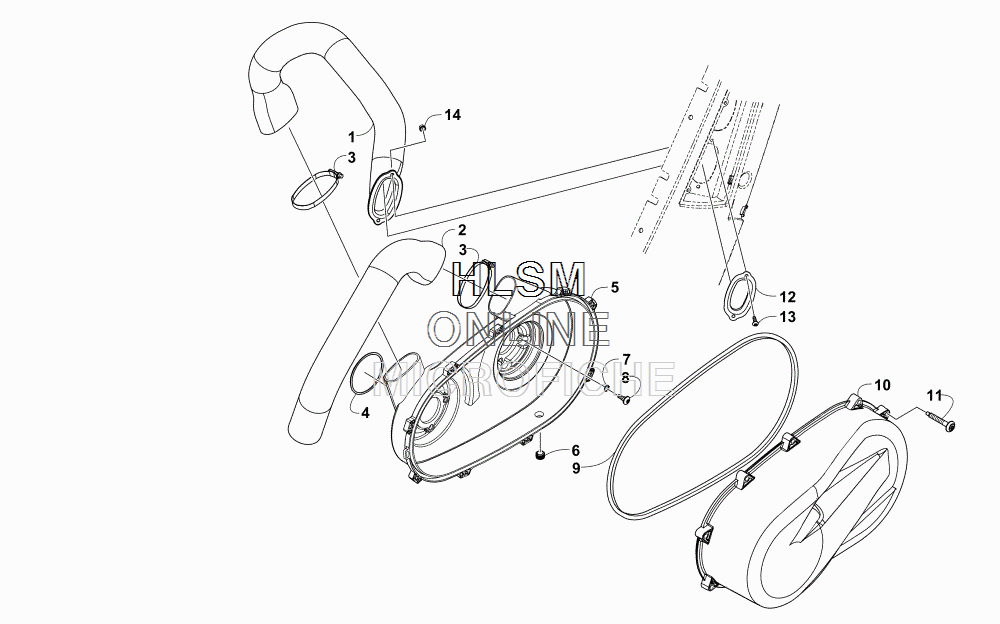

CASE/BELT COOLING AND CLUTCH COVER ASSEMBLIES для Arctic Cat WILDCAT TRAIL RED - 2017 года выпуска
-
№АртикулНазвание
-
10413-347 DUCT, INLETDUCT, INLET
-
20413-313 DUCT, OUTLETDUCT, OUTLET
-
30423-018 CLAMP, HOSECLAMP, HOSE
-
40830-223 O-RINGO-RING
-
50806-173 COVER, INNER - ASSEMBLYCOVER, INNER - ASSEMBLY
-
60806-160 PLUG, DRAINPLUG, DRAIN
-
70830-227 O-RINGO-RING
-
81423-220 SCREW, SHOULDERSCREW, SHOULDER
-
90806-161 SEAL, COVERSEAL, COVER
-
100806-141 COVER, OUTERCOVER, OUTER
-
111423-221 SCREW, CAPSCREW, CAP
-
124406-606 PLATE, CLUTCH INTAKEPLATE, CLUTCH INTAKE
-
138468-620 SCREW, MACHINESCREW, MACHINE
-
140623-038 NUT W/WASHERNUT W/WASHER
