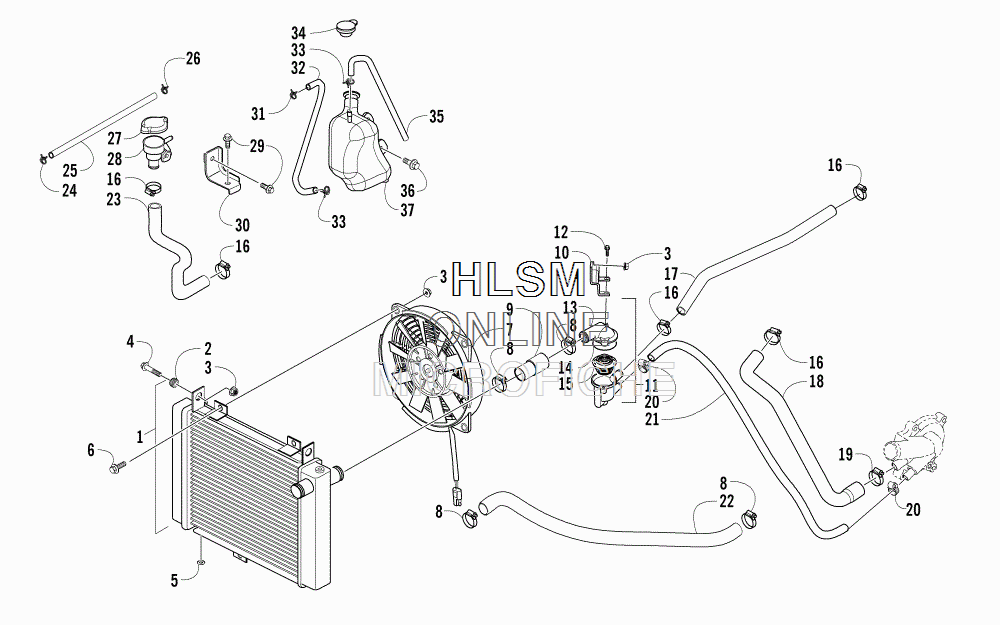

COOLING ASSEMBLY для Arctic Cat XC 450 EFI GREEN - 2017 года выпуска
-
№АртикулНазвание
-
13306-533 RADIATOR (INC. 2)RADIATOR (INC. 2)
-
20423-030 ...GROMMET...GROMMET
-
33304-654 NUT, LOCKNUT, LOCK
-
43313-166 SCREW, SHOULDERSCREW, SHOULDER
-
50423-028 BUSHING, STEMBUSHING, STEM
-
63304-587 BOLT WASHER 6X16BOLT WASHER 6X16
-
73323-204 FAN, COOLING - ASSEMBLYFAN, COOLING - ASSEMBLY
-
83306-256 CLAMP, HOSECLAMP, HOSE
-
93306-438 HOSE, COOLANT - RADIATOR/THERMOSTATHOSE, COOLANT - RADIATOR/THERMOSTAT
-
103306-260 BRACKET, MOUNTING - THERMOSTAT HOUSINGBRACKET, MOUNTING - THERMOSTAT HOUSING
-
110808-192 HOUSING, THERMOSTAT - ASSEMBLY (INC. 12-15)HOUSING, THERMOSTAT - ASSEMBLY (INC. 12-15)
-
123303-384 ...BOLT, FLANGE...BOLT, FLANGE
-
130808-202 ...COVER, HOUSING - THERMOSTAT...COVER, HOUSING - THERMOSTAT
-
140830-205 ...O-RING...O-RING
-
150813-050 ...THERMOSTAT...THERMOSTAT
-
161423-008 CLAMP, HOSECLAMP, HOSE
-
173306-255 HOSE, COOLANT - THERMOSTAT/CYLINDERHOSE, COOLANT - THERMOSTAT/CYLINDER
-
180410-216 HOSE, COOLANT - WATER PUMP/CYLINDERHOSE, COOLANT - WATER PUMP/CYLINDER
-
193305-941 CLAMP, HOSECLAMP, HOSE
-
200423-098 CLAMP, HOSECLAMP, HOSE
-
213306-258 HOSE, COOLANT - THERMOSTAT/WATER PUMPHOSE, COOLANT - THERMOSTAT/WATER PUMP
-
223306-535 HOSE, COOLANT - RADIATOR/WATER PUMPHOSE, COOLANT - RADIATOR/WATER PUMP
-
233306-536 HOSE, COOLANT - FILLER NECK/RADIATORHOSE, COOLANT - FILLER NECK/RADIATOR
-
243304-161 CLAMP, HOSECLAMP, HOSE
-
253306-534 HOSE, COOLANT - FILLER NECK/THERMOSTATHOSE, COOLANT - FILLER NECK/THERMOSTAT
-
263306-349 CLAMP, HOSECLAMP, HOSE
-
273303-748 CAP, FILLER NECKCAP, FILLER NECK
-
283303-738 NECK, FILLERNECK, FILLER
-
293304-553 BOLT, FLANGE - 6 X 12BOLT, FLANGE - 6 X 12
-
303306-336 BRACKET, MOUNTING - FILLER NECKBRACKET, MOUNTING - FILLER NECK
-
313303-349 CLAMP, HOSECLAMP, HOSE
-
323306-340 HOSE, COOLANT - RESERVOIR/FILLER NECKHOSE, COOLANT - RESERVOIR/FILLER NECK
-
333304-163 CLAMP, HOSECLAMP, HOSE
-
343303-749 CAP, RESERVOIRCAP, RESERVOIR
-
353306-339 HOSE, VENTHOSE, VENT
-
363304-652 BOLT WASHER 6X12BOLT WASHER 6X12
-
373313-661 TANK, RESERVOIRTANK, RESERVOIR
