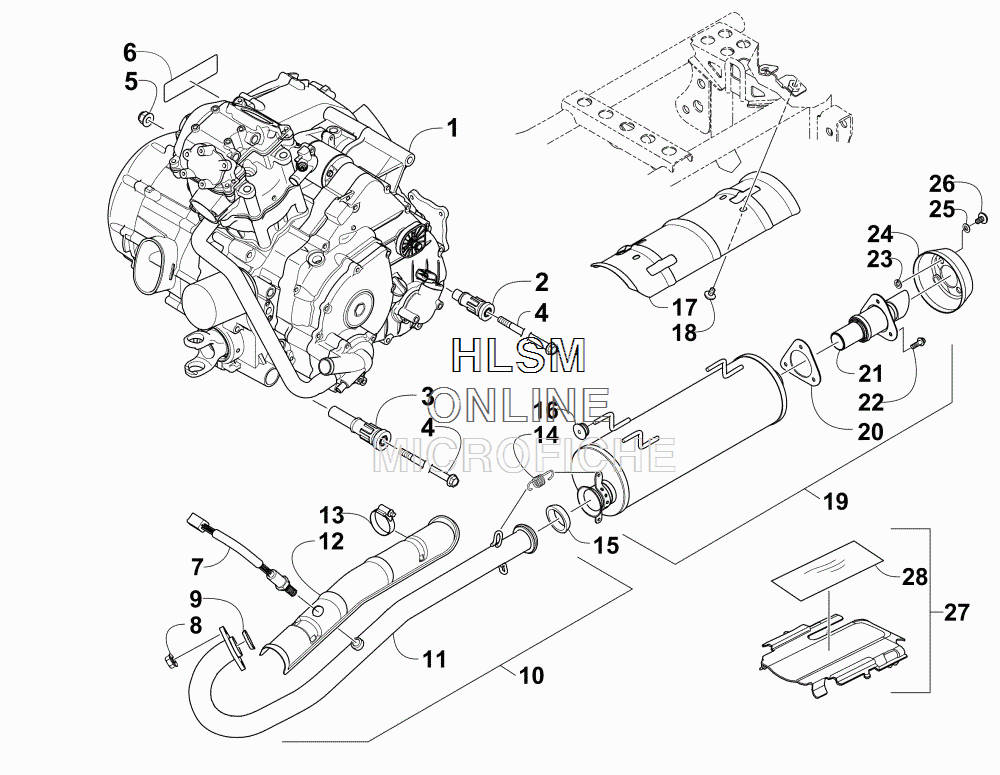

ENGINE AND EXHAUST для Arctic Cat XC 450 EFI GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
13313-836 ENGINE, 450 KD - W/RUBBER MOUNTS (INC. 2-3)ENGINE, 450 KD - W/RUBBER MOUNTS (INC. 2-3)
-
20801-188 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
30801-189 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
43323-174 BOLT, HFH M10-1.25X185 CL10.9 ZYBOLT, HFH M10-1.25X185 CL10.9 ZY
-
53304-031 U-NUTU-NUT
-
60411-426 DECAL, WARNINGDECAL, WARNING
-
73306-877 SENSOR, OXYGENSENSOR, OXYGEN
-
83304-668 NUT, LOCKNUT, LOCK
-
93313-743 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
103306-876 PIPE, EXHAUST - ASSEMBLY (INC. 11-13)PIPE, EXHAUST - ASSEMBLY (INC. 11-13)
-
113306-875 ...PIPE, EXHAUST...PIPE, EXHAUST
-
123306-874 ...SHIELD, EXHAUST...SHIELD, EXHAUST
-
130423-317 ...CLAMP...CLAMP
-
140612-668 SPRINGSPRING
-
153306-315 SEAL, EXHAUSTSEAL, EXHAUST
-
163313-264 BUSHINGBUSHING
-
173313-026 COVER, MUFFLERCOVER, MUFFLER
-
183313-711 BOLT, WASHER 6X12BOLT, WASHER 6X12
-
193306-492 MUFFLER - ASSEMBLY (INC. 20-22)MUFFLER - ASSEMBLY (INC. 20-22)
-
203313-708 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
213306-493 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
223313-710 ...BOLT, FLANGE 8X16...BOLT, FLANGE 8X16
-
233304-140 WASHER, LOCKWASHER, LOCK
-
243307-247 END CAP, MUFFLEREND CAP, MUFFLER
-
253306-496 WASHERWASHER
-
263306-495 SCREW, MACHINESCREW, MACHINE
-
273313-596 SHIELD, GEARCASE (INC. 28)SHIELD, GEARCASE (INC. 28)
-
283306-582 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
