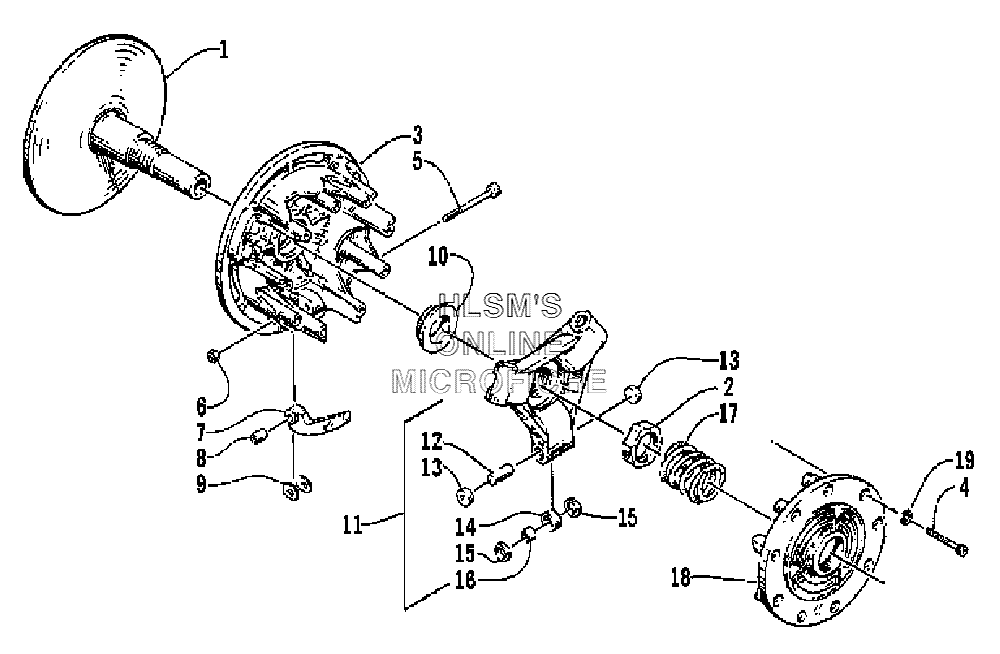

DRIVE CLUTCH для Arctic Cat Bearcat Wide Track (International) - 2000 года выпуска

№

Артикул

Название
-

0725-305 DRIVE CLUTCH ASSEMBLY

DRIVE CLUTCH ASSEMBLY

127 080 ₽
1

0646-276 SHEAVE, STATIONARY

SHEAVE, STATIONARY

35 150 ₽
2

0646-140 NUT, JAM

NUT, JAM

2 700 ₽
3

0746-080 SHEAVE, MOVABLE

SHEAVE, MOVABLE

34 940 ₽
4

0623-596 SCREW, MACHINE

SCREW, MACHINE

650 ₽
5

0646-295 PIN, CAM ARM

PIN, CAM ARM

2 280 ₽
6

0623-392 NUT, LOCK

NUT, LOCK

230 ₽
7

0746-538 ARM, CAM (INC. 8)

ARM, CAM (INC. 8)

2 490 ₽
7

0746-524 ARM, CAM (INC. 8) (5, 000, 9, 000 FT ALT.)

ARM, CAM (INC. 8) (5, 000, 9, 000 FT ALT.)

3 530 ₽
7

0746-523 ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)

ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)

2 490 ₽
8

0646-160 BEARING, CAM ARM

BEARING, CAM ARM

2 280 ₽
9

0646-101 WASHER, CAM ARM

WASHER, CAM ARM

150 ₽
10

0646-196 WASHER, SPACER

WASHER, SPACER

4 150 ₽
11

0746-090 SPIDER ASSEMBLY (INC. 12, 16)

SPIDER ASSEMBLY (INC. 12, 16)

42 220 ₽
12

0646-270 PIN, SPIDER

PIN, SPIDER

3 740 ₽
13

0646-293 BUTTON, SPIDER

BUTTON, SPIDER

2 910 ₽
14

0746-067 ROLLER, SPIDER (INC. 16)

ROLLER, SPIDER (INC. 16)

9 350 ₽
15

0646-294 WASHER, ROLLER

WASHER, ROLLER

2 700 ₽
16

0646-272 BEARING, ROLLER

BEARING, ROLLER

3 950 ₽
17

0646-150 SPRING, DRIVE CLUTCH (SILVER)

SPRING, DRIVE CLUTCH (SILVER)

7 070 ₽
17

0646-149 SPRING, DRIVE CLUTCH (RED) (OVER 5, 000 FT ALT.)

SPRING, DRIVE CLUTCH (RED) (OVER 5, 000 FT ALT.)

8 520 ₽
18

0746-086 COVER

COVER

17 880 ₽
19

8051-212 WASHER, LOCK

WASHER, LOCK

20 ₽
