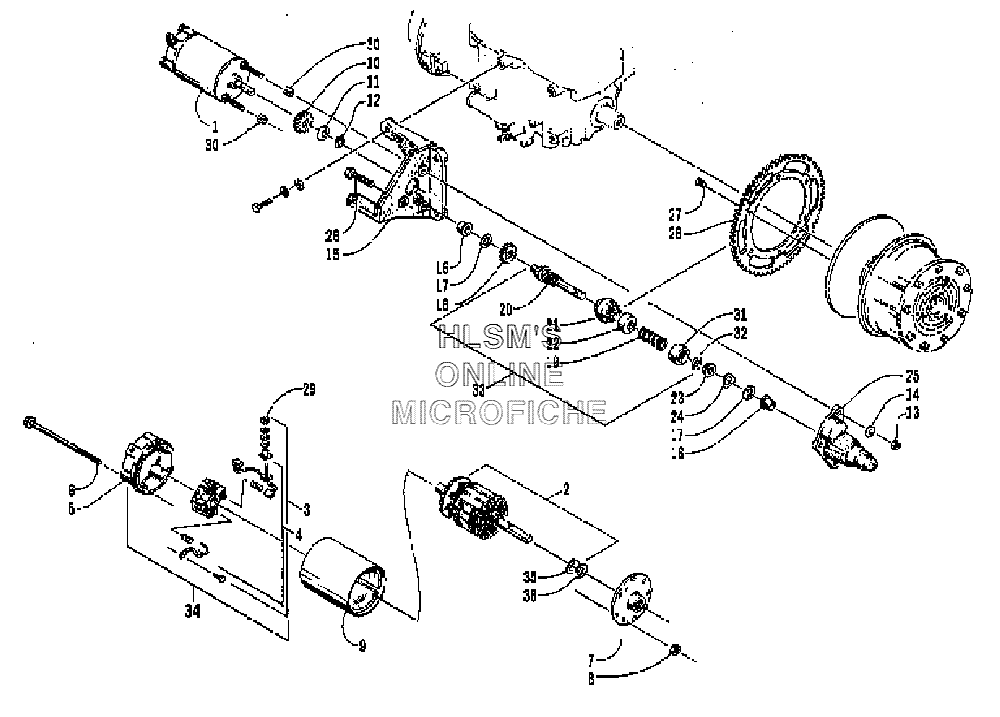

ELECTRIC START - STARTER MOTOR ASSEMBLY для Arctic Cat Bearcat Wide Track (International) - 2000 года выпуска
-
№АртикулНазвание
-
10745-129 MOTOR, ELECTRIC STARTER (INC. 2, 9, 19, AND 23)MOTOR, ELECTRIC STARTER (INC. 2, 9, 19, AND 23)
-
10645-183 MOTOR, ELECTRIC STARTER (INC. 2, 8)MOTOR, ELECTRIC STARTER (INC. 2, 8)
-
20645-146 ARMATURE ASSEMBLYARMATURE ASSEMBLY
-
40645-275 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
60645-128 SCREW, CAPSCREW, CAP
-
70645-284 PLATE, END W/BEARINGPLATE, END W/BEARING
-
80645-129 NUTNUT
-
100645-098 GEAR, DRIVEGEAR, DRIVE
-
110623-336 WASHER, SPRINGWASHER, SPRING
-
120645-130 RING, SNAPRING, SNAP
-
138040-366 NUT, LOCKNUT, LOCK
-
148050-217 WASHERWASHER
-
150745-079 BRACKET, STARTERBRACKET, STARTER
-
160645-108 BUSHINGBUSHING
-
170645-127 WASHER, THRUSTWASHER, THRUST
-
180645-290 GEAR, SECONDARYGEAR, SECONDARY
-
190645-123 SPRINGSPRING
-
200645-100 SHAFT, DRIVE/PINIONSHAFT, DRIVE/PINION
-
210645-122 GEAR, PINIONGEAR, PINION
-
220645-218 COVER, DUSTCOVER, DUST
-
230645-107 SLEEVE, SPACERSLEEVE, SPACER
-
240645-126 WASHER, WAVEWASHER, WAVE
-
250745-069 CAP, END, STARTER MOTOR (INC. ONE NO. 16)CAP, END, STARTER MOTOR (INC. ONE NO. 16)
-
260623-440 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
270623-441 SCREW, MACHINESCREW, MACHINE
-
280645-169 GEAR, RINGGEAR, RING
-
290623-122 NUT, LOCKNUT, LOCK
-
300645-106 SLEEVESLEEVE
-
310645-217 STOP, PINIONSTOP, PINION
-
320645-125 RING, SNAPRING, SNAP
-
330645-228 DRIVESHAFT, PINION, ASSEMBLY (INC. 19, 22, 31, AND 32)DRIVESHAFT, PINION, ASSEMBLY (INC. 19, 22, 31, AND 32)
-
340645-285 COMMUTATOR CAP W/HD BRUSHES (INC. 3, 4, 5, AND 29)COMMUTATOR CAP W/HD BRUSHES (INC. 3, 4, 5, AND 29)
-
350645-131 WASHER, WAVEWASHER, WAVE
-
360645-293 WASHER, THRUSTWASHER, THRUST
