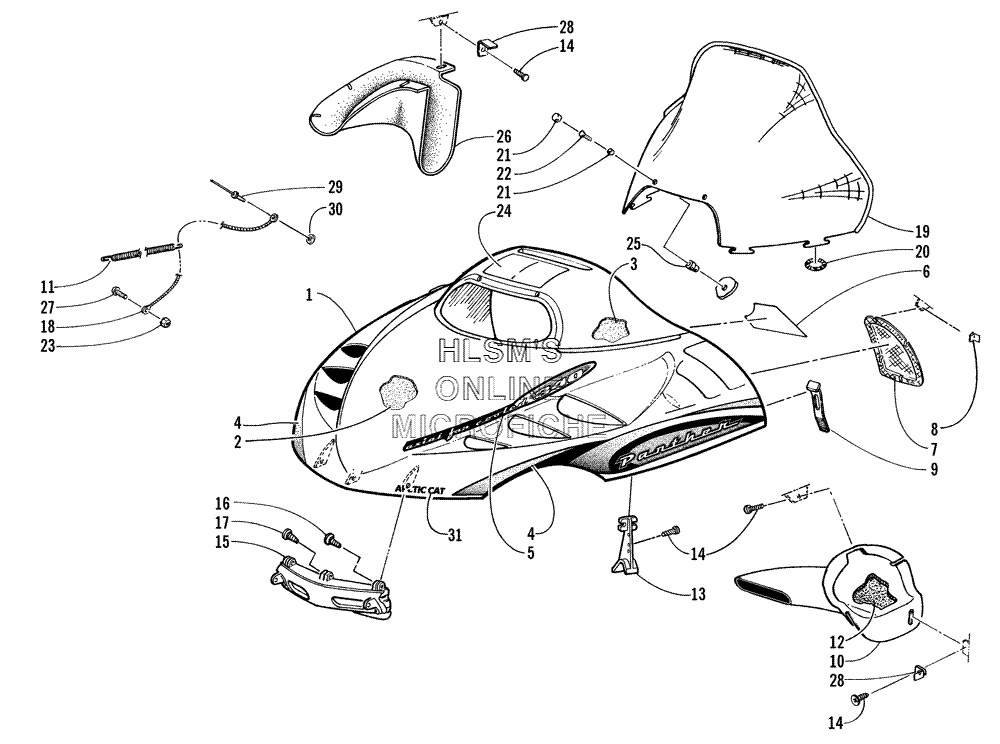

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Pantera 340 - 2000 года выпуска
-
№АртикулНазвание
-
10718-673 HOOD W/O DECALSHOOD W/O DECALS
-
10718-860 HOOD W/DECALSHOOD W/DECALS
-
20717-096 FOAM, HOOD - LOWERFOAM, HOOD - LOWER
-
30717-095 FOAM, HOOD - UPPERFOAM, HOOD - UPPER
-
43611-428 DECAL, HOOD - LOWER RIGHTDECAL, HOOD - LOWER RIGHT
-
43611-429 DECAL, HOOD - LOWER LEFTDECAL, HOOD - LOWER LEFT
-
53611-434 DECAL, HOOD - UPPER RIGHTDECAL, HOOD - UPPER RIGHT
-
53611-435 DECAL, HOOD - UPPER LEFTDECAL, HOOD - UPPER LEFT
-
62611-761 DECAL, CAUTION - ENGINE/BATTERYDECAL, CAUTION - ENGINE/BATTERY
-
71606-059 SCREEN, VENT - HOOD REARSCREEN, VENT - HOOD REAR
-
80123-596 CLIP, PUSHCLIP, PUSH
-
91606-067 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
101606-602 DUCT, AIR-OUTDUCT, AIR-OUT
-
110123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
120617-265 FOAM, DUCT - OUTFOAM, DUCT - OUT
-
131606-049 GUIDE, HOODGUIDE, HOOD
-
140623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
151606-061 HINGE, HOODHINGE, HOOD
-
160623-684 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
170623-683 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180606-121 CABLE, HOODCABLE, HOOD
-
191606-066 WINDSHIELDWINDSHIELD
-
200616-032 O-RINGO-RING
-
210124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
220123-549 SCREW, MACHINESCREW, MACHINE
-
230123-430 NUT, LOCKNUT, LOCK
-
241611-575 DECAL, WARNING - HOODDECAL, WARNING - HOOD
-
250123-010 NUT, EXPANSIONNUT, EXPANSION
-
260616-993 DUCT, AIR-INDUCT, AIR-IN
-
270623-413 SCREW, MACHINESCREW, MACHINE
-
281606-188 BRACKET, AIR DUCTBRACKET, AIR DUCT
-
298061-708 RIVETRIVET
-
300123-802 WASHERWASHER
-
313611-186 DECAL, ''''ARCTIC CAT''''DECAL, ''''ARCTIC CAT''''
