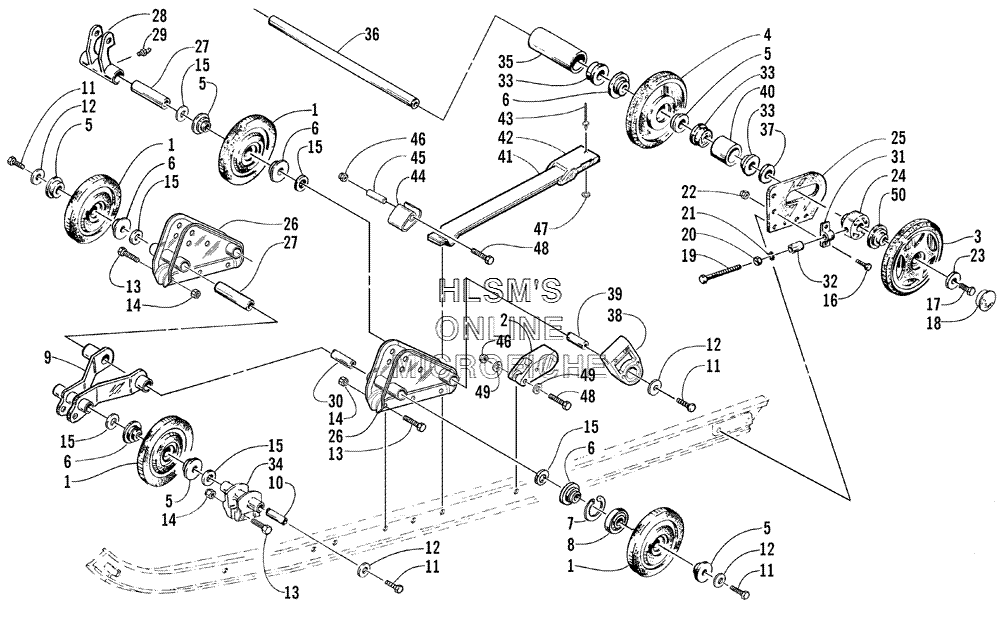

REAR SUSPENSION AXLE ASSEMBLY для Arctic Cat Pantera 340 - 2000 года выпуска
-
№АртикулНазвание
-
10114-240 WHEEL, IDLER (INC. 5-8)WHEEL, IDLER (INC. 5-8)
-
20604-612 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
30604-980 WHEEL, IDLER (INC. 7-8 AND 50)WHEEL, IDLER (INC. 7-8 AND 50)
-
40604-210 WHEEL, IDLER (INC. 5-8)WHEEL, IDLER (INC. 5-8)
-
50104-341 . INSERT, WHEEL - OUTSIDE. INSERT, WHEEL - OUTSIDE
-
60104-340 . INSERT, WHEEL - INSIDE. INSERT, WHEEL - INSIDE
-
70123-798 . RING, RETAINING. RING, RETAINING
-
80107-598 . BEARING, WHEEL - INSIDE. BEARING, WHEEL - INSIDE
-
90704-319 BRACKET, FRONT SHOCKBRACKET, FRONT SHOCK
-
100604-578 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
118012-132 SCREW, CAPSCREW, CAP
-
120123-260 WASHERWASHER
-
138002-131 SCREW, CAPSCREW, CAP
-
148040-426 NUT, LOCKNUT, LOCK
-
150123-439 WASHERWASHER
-
168002-041 SCREW, CAPSCREW, CAP
-
178012-223 SCREW, CAPSCREW, CAP
-
180604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
-
190623-123 SCREW, CAPSCREW, CAP
-
208042-486 NUTNUT
-
218051-277 WASHER, LOCKWASHER, LOCK
-
228040-366 NUT, LOCKNUT, LOCK
-
230123-570 WASHERWASHER
-
240604-165 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
251604-153 HOUSING, REAR AXLEHOUSING, REAR AXLE
-
260704-310 BRACKET, MOUNTING - RIGHTBRACKET, MOUNTING - RIGHT
-
260704-311 BRACKET, MOUNTING - LEFTBRACKET, MOUNTING - LEFT
-
270603-105 SPACER, IDLER WHEELSPACER, IDLER WHEEL
-
280704-374 PIVOT, SHOCK (INC. 29)PIVOT, SHOCK (INC. 29)
-
299916-963 . FITTING, GREASE. FITTING, GREASE
-
300604-081 AXLE, IDLER WHEELAXLE, IDLER WHEEL
-
310604-206 ADJUSTER, TRACKADJUSTER, TRACK
-
320604-298 SPACER, TRACK ADJUSTERSPACER, TRACK ADJUSTER
-
330604-968 BUSHING, SPACERBUSHING, SPACER
-
340704-201 BRACKET, AUXILIARY WHEELBRACKET, AUXILIARY WHEEL
-
350604-144 SPACER, REAR WHEELSPACER, REAR WHEEL
-
360604-208 AXLE, REAR WHEELAXLE, REAR WHEEL
-
370623-220 WASHERWASHER
-
381604-143 SLIDE, SPRINGSLIDE, SPRING
-
390114-055 AXLE, INNERAXLE, INNER
-
400604-712 SPACER, REAR WHEELSPACER, REAR WHEEL
-
411604-448 SPRING, OVERLOAD - ASSEMBLY (INC. 42-44 AND 47)SPRING, OVERLOAD - ASSEMBLY (INC. 42-44 AND 47)
-
420604-859 . BLOCK, WEAR. BLOCK, WEAR
-
438060-411 . RIVET. RIVET
-
440604-860 . CLIP, RETAINING. CLIP, RETAINING
-
450604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
468041-486 NUT, LOCKNUT, LOCK
-
470123-149 WASHERWASHER
-
488002-227 SCREW, CAPSCREW, CAP
-
498050-277 WASHERWASHER
-
500604-220 INSERT, WHEELINSERT, WHEEL
