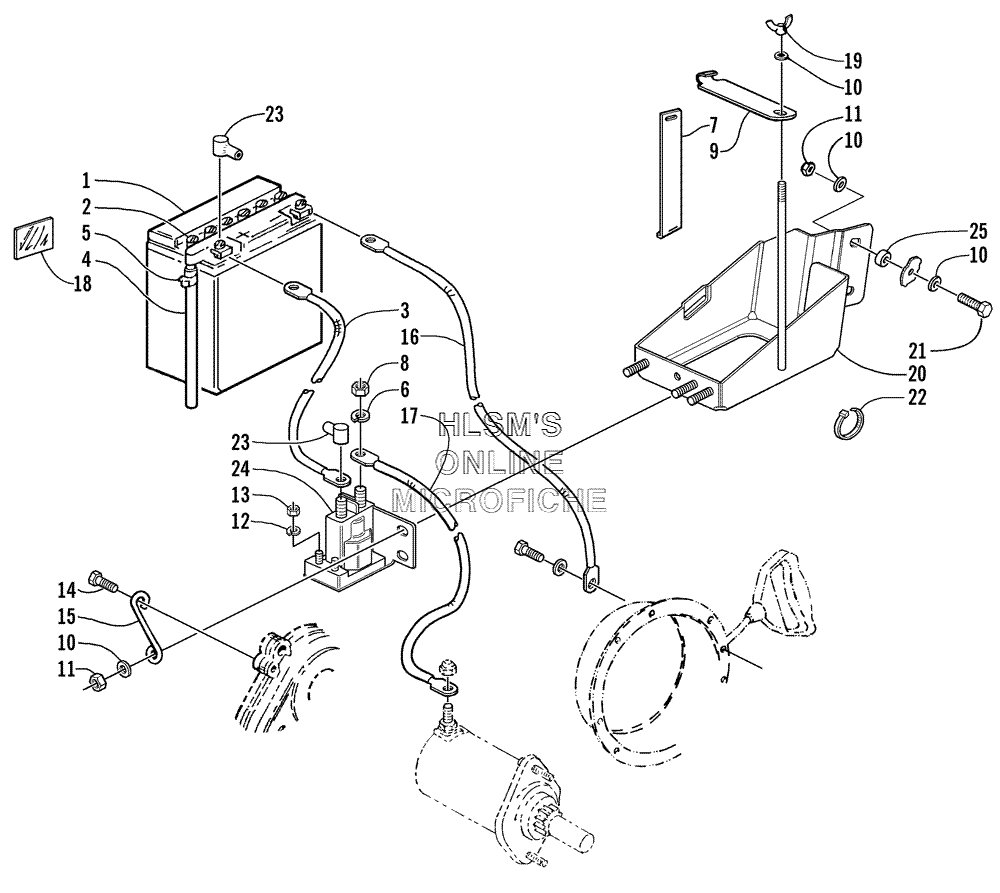

BATTERY- SOLENOID- AND CABLES для Arctic Cat Pantera 440 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
10745-045 BATTERY (INC. 2 AND 4-5)BATTERY (INC. 2 AND 4-5)
-
20645-045 . CAP, BATTERY. CAP, BATTERY
-
30645-142 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
40645-263 HOSE, BATTERYHOSE, BATTERY
-
50645-152 CLAMP, HOSECLAMP, HOSE
-
68051-242 WASHER, LOCKWASHER, LOCK
-
70645-245 STRAP, BATTERY HOLD-DOWN - SIDESTRAP, BATTERY HOLD-DOWN - SIDE
-
88043-452 NUTNUT
-
90645-243 STRAP, BATTERY HOLD-DOWN - TOPSTRAP, BATTERY HOLD-DOWN - TOP
-
108050-217 WASHERWASHER
-
118040-366 NUT, LOCKNUT, LOCK
-
128051-152 WASHER, LOCKWASHER, LOCK
-
138042-272 NUTNUT
-
140623-640 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
150645-247 BRACKET, SUPPORTBRACKET, SUPPORT
-
160645-080 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
170645-244 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
180645-151 LABEL, WARNING - BATTERYLABEL, WARNING - BATTERY
-
190623-325 NUT, WINGNUT, WING
-
200745-133 TRAY, BATTERYTRAY, BATTERY
-
218002-045 SCREW, CAPSCREW, CAP
-
220123-788 TIE, CABLETIE, CABLE
-
230645-019 BOOT, TERMINAL - BATTERYBOOT, TERMINAL - BATTERY
-
240645-196 SOLENOIDSOLENOID
-
250645-302 SPACER, BATTERY TRAYSPACER, BATTERY TRAY
