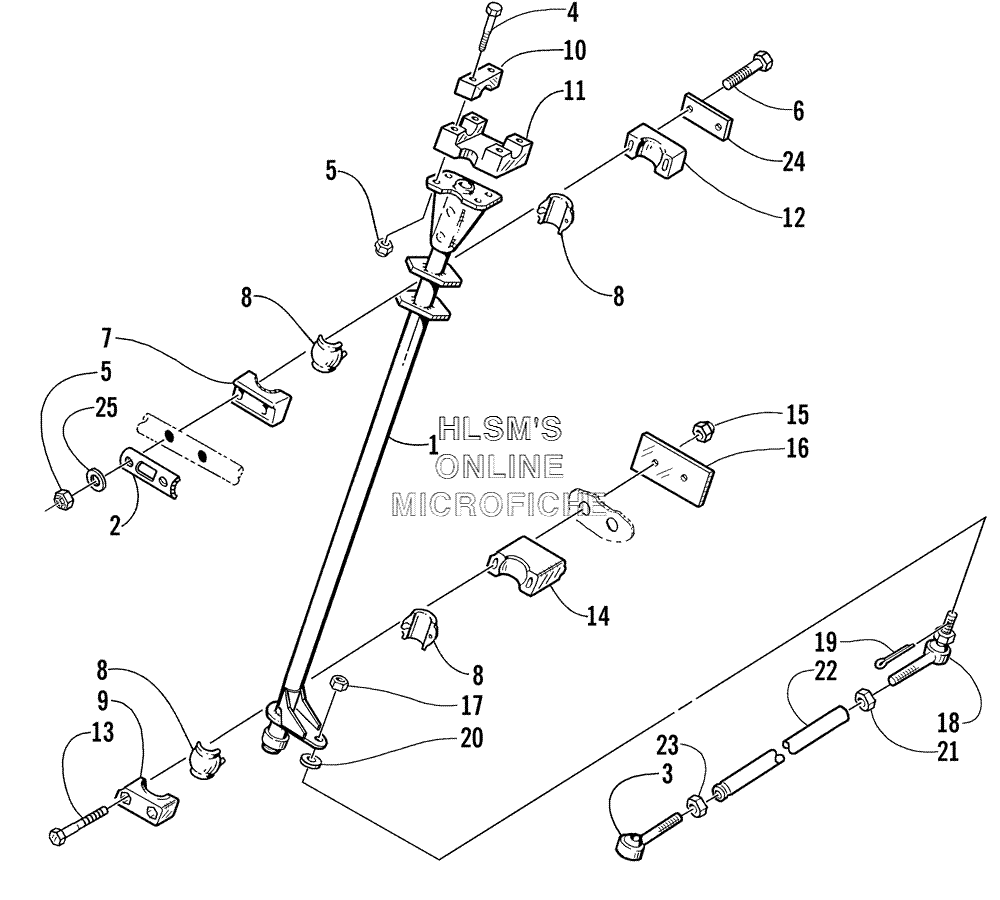

STEERING POST ASSEMBLY для Arctic Cat Pantera 440 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
20605-331 PLATE, BACKING - STEERING SUPPORTPLATE, BACKING - STEERING SUPPORT
-
30605-202 BALL JOINT, TIE ROD - RIGHTBALL JOINT, TIE ROD - RIGHT
-
48002-047 SCREW, CAPSCREW, CAP
-
58040-366 NUT, LOCKNUT, LOCK
-
70605-147 HOUSING, BEARING - UPPERHOUSING, BEARING - UPPER
-
80605-149 BEARING, HALFBEARING, HALF
-
90605-406 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
100105-350 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
110105-351 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
120605-171 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
138002-143 SCREW, CAPSCREW, CAP
-
140605-407 HOUSING, BEARING - LOWERHOUSING, BEARING - LOWER
-
158040-426 NUT, LOCKNUT, LOCK
-
160605-385 PLATE, BACKINGPLATE, BACKING
-
170623-025 NUT, LOCKNUT, LOCK
-
180605-405 BALL JOINT, TIE ROD - LEFTBALL JOINT, TIE ROD - LEFT
-
190623-175 PIN, COTTERPIN, COTTER
-
200623-044 WASHERWASHER
-
210123-917 NUT, HEX - LEFTNUT, HEX - LEFT
-
220605-404 TUBE, TIE RODTUBE, TIE ROD
-
230623-294 NUT, HEX - RIGHTNUT, HEX - RIGHT
-
240605-328 STOP, STEERINGSTOP, STEERING
-
258050-217 WASHERWASHER
