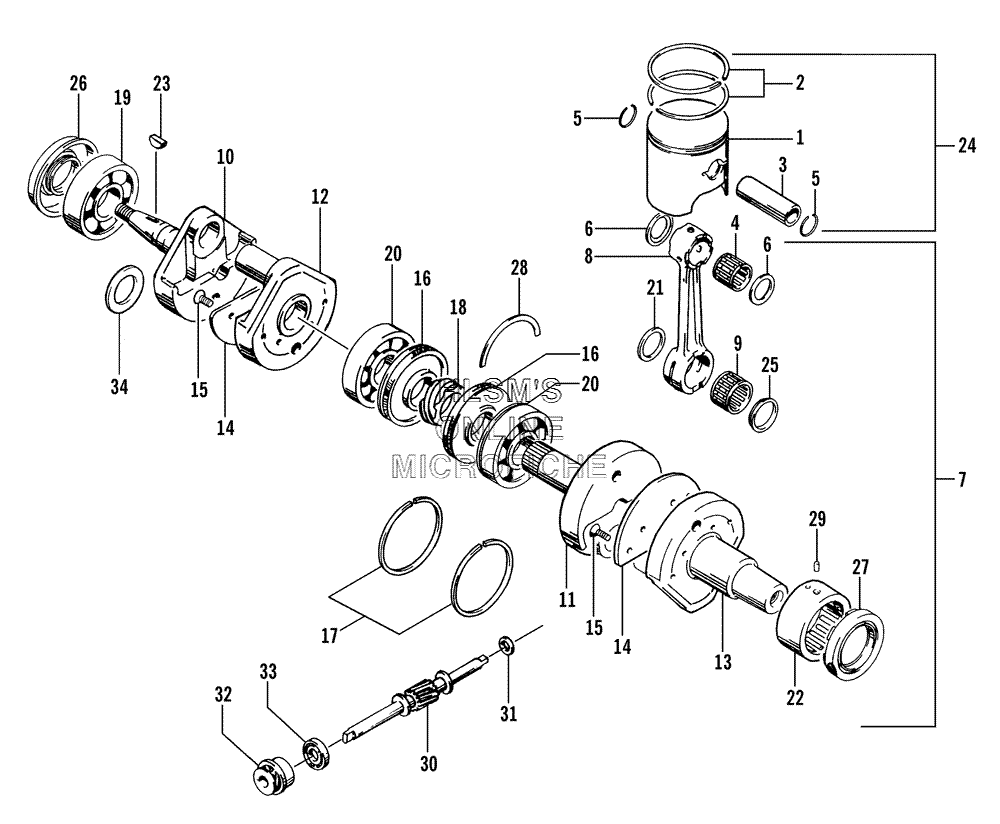

PISTON AND CRANKSHAFT для Arctic Cat Powder Special 500 EFI LE (Black) - 2000 года выпуска
-
№АртикулНазвание
-
13005-250 PISTONPISTON
-
23005-123 RING ASSEMBLYRING ASSEMBLY
-
33005-111 PIN, PISTONPIN, PISTON
-
43003-433 BEARING, PISTON PINBEARING, PISTON PIN
-
53003-439 CIRCLIP, PISTON PINCIRCLIP, PISTON PIN
-
63005-209 WASHER, PISTON PIN BEARINGWASHER, PISTON PIN BEARING
-
73005-607 CRANKSHAFT ASSEMBLY (INC. 8-22)CRANKSHAFT ASSEMBLY (INC. 8-22)
-
83005-112 . ROD, CONNECTING. ROD, CONNECTING
-
93008-423 . BEARING. BEARING
-
103005-416 . CRANKSHAFT - RIGHT. CRANKSHAFT - RIGHT
-
113005-421 . CRANKSHAFT - CENTER. CRANKSHAFT - CENTER
-
123005-215 . WHEEL, CRANKSHAFT. WHEEL, CRANKSHAFT
-
133005-217 . CRANKSHAFT - LEFT. CRANKSHAFT - LEFT
-
143004-961 . BALANCER, CRANKSHAFT. BALANCER, CRANKSHAFT
-
153004-372 . SCREW, MACHINE. SCREW, MACHINE
-
163004-799 . RACE, MIDDLE SEAL. RACE, MIDDLE SEAL
-
173004-800 . RING. RING
-
183005-362 . GEAR, OIL PUMP DRIVE. GEAR, OIL PUMP DRIVE
-
193005-412 . BEARING - RIGHT. BEARING - RIGHT
-
203003-164 . BEARING, CRANKSHAFT. BEARING, CRANKSHAFT
-
213003-782 . WASHER. WASHER
-
223003-805 . BEARING - LEFT. BEARING - LEFT
-
233004-540 KEYKEY
-
243005-173 PISTON ASSEMBLY (INC. 1, 2, AND 5)PISTON ASSEMBLY (INC. 1, 2, AND 5)
-
253003-933 WASHER, CRANK PINWASHER, CRANK PIN
-
263005-188 SEAL, OIL - RIGHTSEAL, OIL - RIGHT
-
273003-759 SEAL, OIL - LEFTSEAL, OIL - LEFT
-
283003-216 C-RING, CRANKSHAFTC-RING, CRANKSHAFT
-
293003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
303005-319 GEAR, PUMP DRIVENGEAR, PUMP DRIVEN
-
313005-049 SHIM, OIL PUMP SHAFTSHIM, OIL PUMP SHAFT
-
323402-360 SEAL, MECHANICAL WATER PUMPSEAL, MECHANICAL WATER PUMP
-
333004-760 SEAL, WATER/OIL PUMPSEAL, WATER/OIL PUMP
-
343005-603 WASHERWASHER
