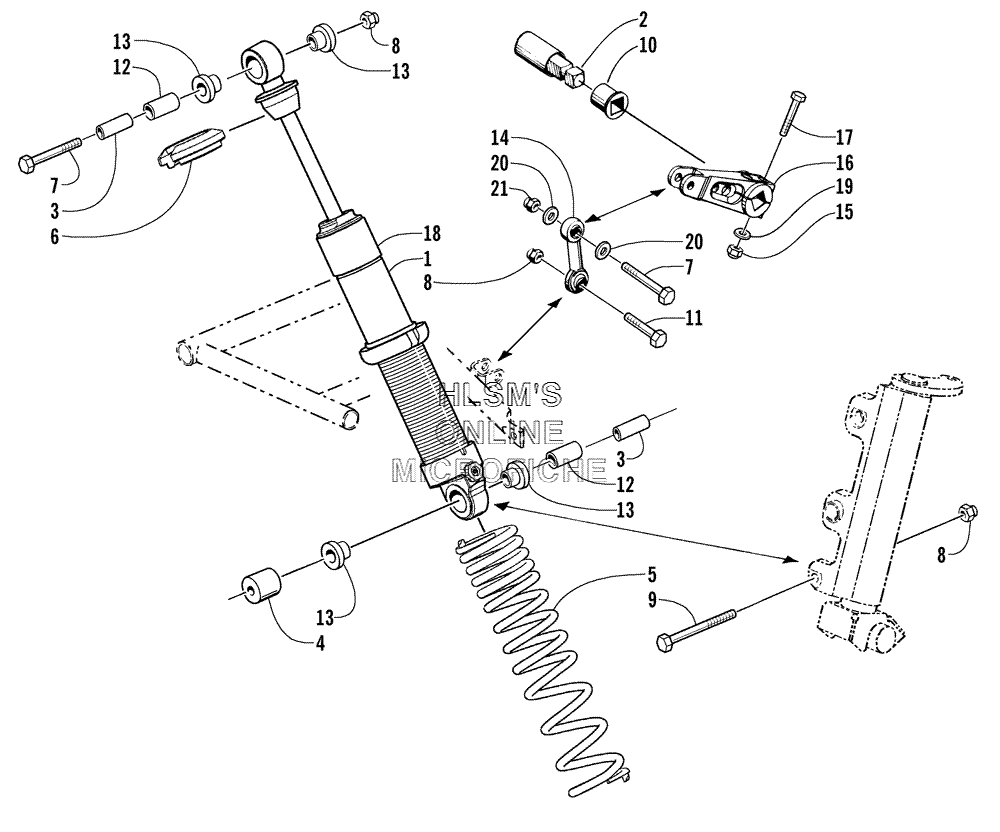

SHOCK ABSORBER AND SWAY BAR ASSEMBLIES для Arctic Cat Powder Special 500 EFI LE (Black) - 2000 года выпуска
-
№АртикулНазвание
-
10703-679 SHOCK, FRONT SUSPENSIONSHOCK, FRONT SUSPENSION
-
20703-202 SWAY BARSWAY BAR
-
30603-436 SLEEVE, SHOCKSLEEVE, SHOCK
-
40603-648 SPACER, SPACER MOUNTSPACER, SPACER MOUNT
-
50603-836 SPRING, COMPRESSION - GREENSPRING, COMPRESSION - GREEN
-
61603-252 RETAINER, SPRINGRETAINER, SPRING
-
78002-226 SCREW, CAPSCREW, CAP
-
88040-486 NUT, LOCKNUT, LOCK
-
98002-232 SCREW, CAPSCREW, CAP
-
100603-151 BEARING, SWAY BARBEARING, SWAY BAR
-
118002-225 SCREW, CAPSCREW, CAP
-
121603-209 SLEEVE, EYELETSLEEVE, EYELET
-
130603-955 BUSHING, SHOCK EYELETBUSHING, SHOCK EYELET
-
141603-002 LINK, SWAY BARLINK, SWAY BAR
-
158040-426 NUT, LOCKNUT, LOCK
-
160603-917 ARM, SWAY BARARM, SWAY BAR
-
178002-137 SCREW, CAPSCREW, CAP
-
181603-271 SLEEVE, WEARSLEEVE, WEAR
-
198050-242 WASHERWASHER
-
208050-272 WASHERWASHER
-
218041-486 NUT, LOCKNUT, LOCK
