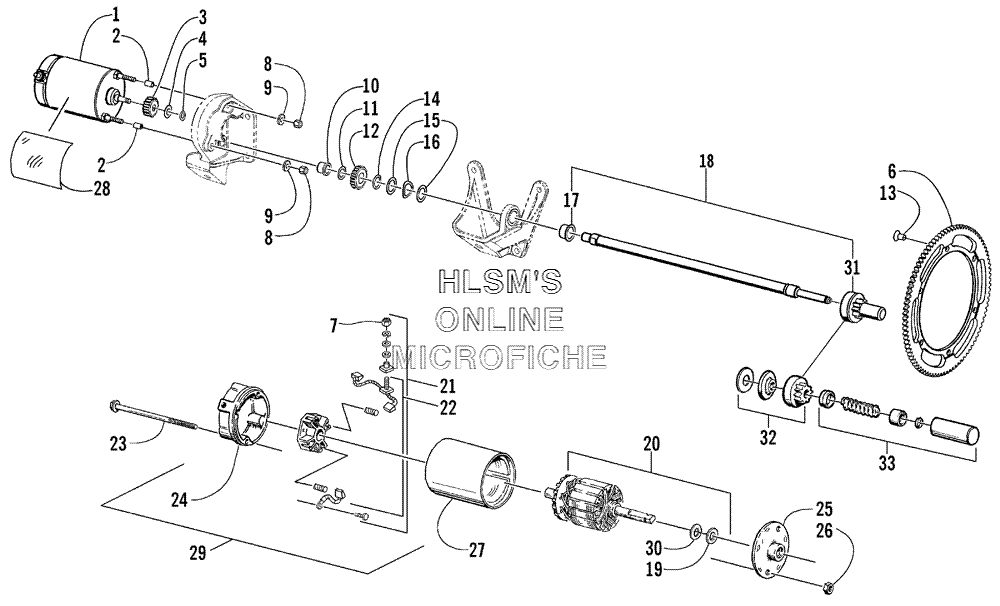

ELECTRIC START - STARTER MOTOR ASSEMBLY для Arctic Cat Triple Touring 600 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
10645-183 MOTOR, STARTER, OFFSET (INC. 22, 33)MOTOR, STARTER, OFFSET (INC. 22, 33)
-
20645-106 SLEEVE, ALIGNMENTSLEEVE, ALIGNMENT
-
30645-289 GEAR, PRIMARYGEAR, PRIMARY
-
40623-336 WASHER, SPRINGWASHER, SPRING
-
50645-130 RING, SNAPRING, SNAP
-
60645-169 GEAR, RINGGEAR, RING
-
70623-122 NUT, LOCKNUT, LOCK
-
88040-366 NUT, LOCKNUT, LOCK
-
98050-217 WASHERWASHER
-
100645-108 BUSHING, SHAFTBUSHING, SHAFT
-
110645-127 WASHER, THRUSTWASHER, THRUST
-
120645-290 GEAR, SECONDARYGEAR, SECONDARY
-
130623-441 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
140645-256 RING, SNAP, EXTERNALRING, SNAP, EXTERNAL
-
150645-254 WASHER, THRUSTWASHER, THRUST
-
160645-255 WASHER, WAVEWASHER, WAVE
-
170645-213 BUSHING, STARTER MOTOR SHAFTBUSHING, STARTER MOTOR SHAFT
-
180745-063 SHAFT, STARTER MOTOR, ASSEMBLY (INC. 31, 33)SHAFT, STARTER MOTOR, ASSEMBLY (INC. 31, 33)
-
190645-293 WASHER, THRUSTWASHER, THRUST
-
200645-146 ARMATURE ASSEMBLYARMATURE ASSEMBLY
-
220645-275 KIT, BRUSH AND SPRINGKIT, BRUSH AND SPRING
-
230645-128 SCREW, CAPSCREW, CAP
-
250645-284 CAP, DRIVE W/BUSHINGCAP, DRIVE W/BUSHING
-
260645-129 NUTNUT
-
280619-230 FOILFOIL
-
290645-285 CAP, COMMUTATOR W/HD BRUSHESCAP, COMMUTATOR W/HD BRUSHES
-
300645-131 WASHER, WAVEWASHER, WAVE
-
310745-145 PINION, DRIVE, ASSEMBLY (INC. 32, 33)PINION, DRIVE, ASSEMBLY (INC. 32, 33)
-
320745-146 . KIT, PINION DRIVE. KIT, PINION DRIVE
-
330645-186 . KIT, PINION STOPPER. KIT, PINION STOPPER
