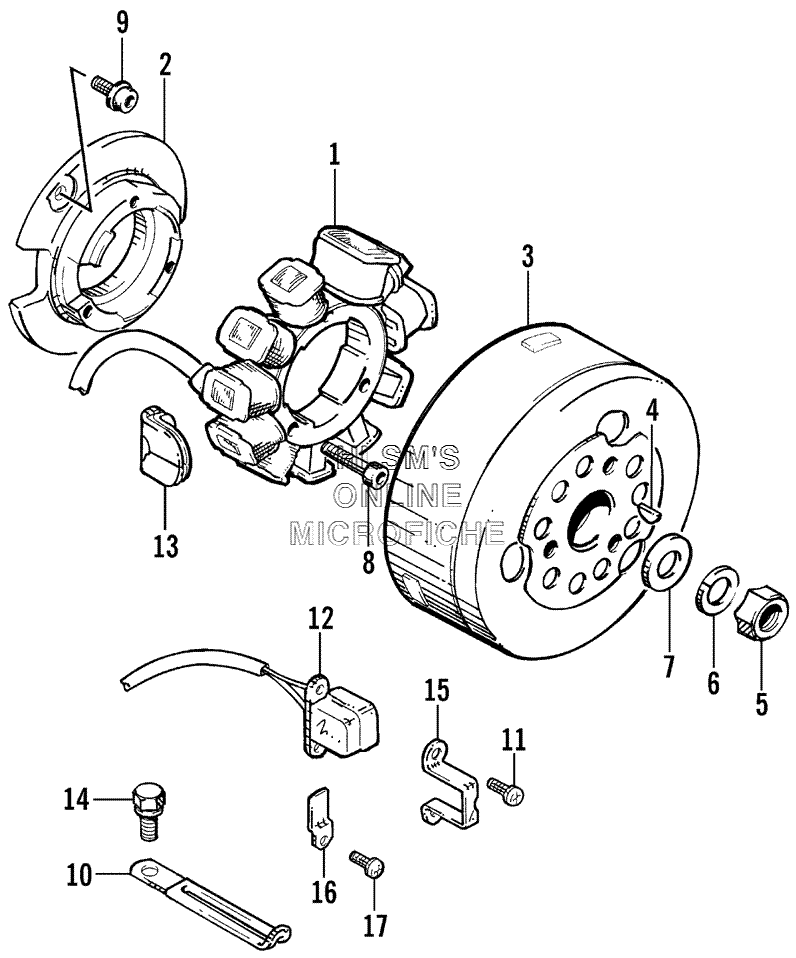

MAGNETO для Arctic Cat Triple Touring 600 (USA) - 2000 года выпуска
-
№АртикулНазвание
-
13005-317 STATORSTATOR
-
23003-908 BASE, STATOR, PLATEBASE, STATOR, PLATE
-
33005-044 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
43004-540 KEYKEY
-
50691-370 NUTNUT
-
63004-345 WASHER, LOCKWASHER, LOCK
-
73005-175 WASHERWASHER
-
83005-524 SCREW, CAPSCREW, CAP
-
93004-378 SCREW, CAPSCREW, CAP
-
103002-964 CLAMP, WIRECLAMP, WIRE
-
113004-706 SCREWSCREW
-
123004-141 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
133008-034 GROMMETGROMMET
-
143004-338 SCREW, CAPSCREW, CAP
-
153003-972 CLAMP, IGNITION TIMING SENSORCLAMP, IGNITION TIMING SENSOR
-
163002-317 CLAMP, MAGNETO LEAD WIRECLAMP, MAGNETO LEAD WIRE
-
173004-706 SCREWSCREW
