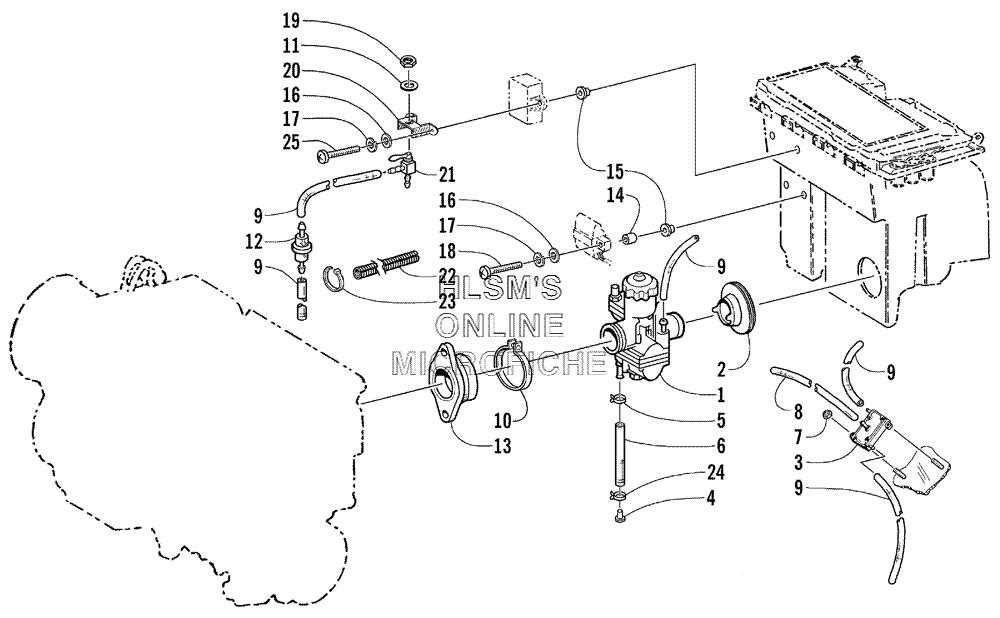

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat Z 370 (International) - 2000 года выпуска
-
№АртикулНазвание
-
11670-091 CARBURETOR, VM32, 302CARBURETOR, VM32, 302
-
20670-598 BOOT, CARBURETORBOOT, CARBURETOR
-
30115-481 PUMP, FUELPUMP, FUEL
-
40670-228 PLUG, DRAINPLUG, DRAIN
-
50623-652 CLAMP, HOSECLAMP, HOSE
-
60610-279 HOSE, DRAINHOSE, DRAIN
-
78040-366 NUT, LOCKNUT, LOCK
-
80610-007 HOSE, IMPULSE (25 FT)HOSE, IMPULSE (25 FT)
-
90610-017 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
90610-008 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
100109-709 CLAMP, CARBURETOR FLANGECLAMP, CARBURETOR FLANGE
-
110623-288 WASHERWASHER
-
120510-335 FILTER, FUELFILTER, FUEL
-
130115-544 FLANGE, CARBURETORFLANGE, CARBURETOR
-
140670-210 SPACERSPACER
-
150623-529 INSERTINSERT
-
168050-157 WASHERWASHER
-
178051-152 WASHER, LOCKWASHER, LOCK
-
180623-082 SCREW, MACHINESCREW, MACHINE
-
190623-287 NUTNUT
-
200670-837 BRACKET, MOUNTING, FUEL SHUT, OFF VALVEBRACKET, MOUNTING, FUEL SHUT, OFF VALVE
-
210670-144 VALVE, FUEL SHUT, OFF (INC. 11 AND 19)VALVE, FUEL SHUT, OFF (INC. 11 AND 19)
-
220716-546 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
230123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
240423-048 CLAMP, HOSECLAMP, HOSE
-
250123-549 SCREW, MACHINESCREW, MACHINE
