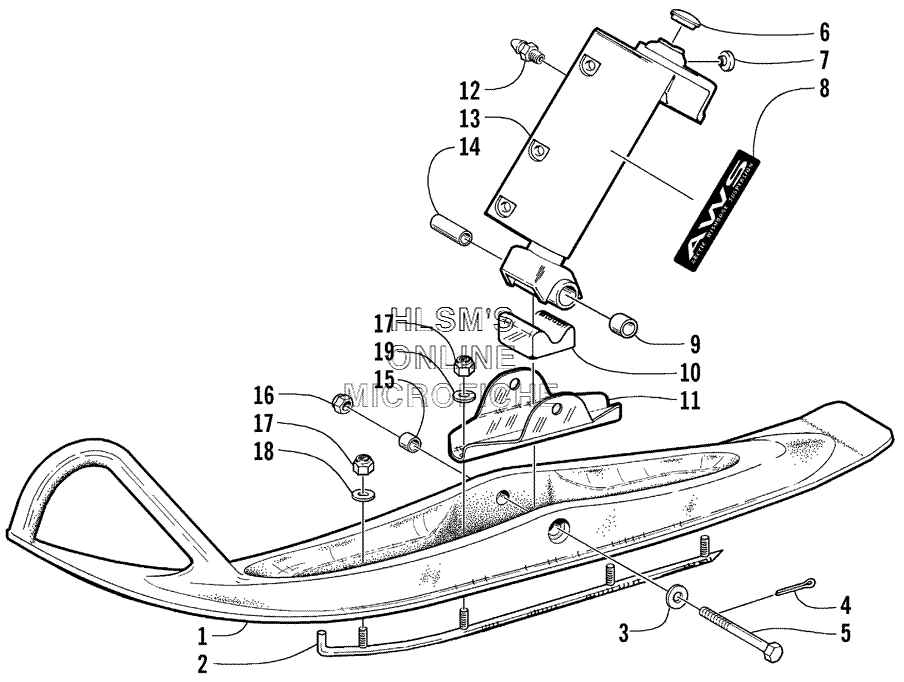

SKI AND SPINDLE ASSEMBLY для Arctic Cat Z 370 (International) - 2000 года выпуска
-
№АртикулНазвание
-
11603-231 SKISKI
-
20703-623 WEARBARWEARBAR
-
38050-307 WASHERWASHER
-
40123-458 PIN, COTTERPIN, COTTER
-
50623-776 SCREW, CAPSCREW, CAP
-
60603-049 CAP, SPINDLECAP, SPINDLE
-
70603-647 INSERT, SPINDLEINSERT, SPINDLE
-
83611-461 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
-
90603-158 BEARINGBEARING
-
101603-257 DAMPER, SKIDAMPER, SKI
-
111603-256 SADDLE, SKISADDLE, SKI
-
120623-010 FITTING, GREASEFITTING, GREASE
-
130703-480 SPINDLE, STEERING (RIGHT) (INC. 7, 9, AND 12)SPINDLE, STEERING (RIGHT) (INC. 7, 9, AND 12)
-
130703-481 SPINDLE, STEERING (LEFT) (INC. 7, 9, AND 12)SPINDLE, STEERING (LEFT) (INC. 7, 9, AND 12)
-
140603-034 AXLE, SPINDLEAXLE, SPINDLE
-
151603-258 INSERT, SKIINSERT, SKI
-
160123-296 NUT, LOCKNUT, LOCK
-
178040-486 NUT, LOCKNUT, LOCK
-
188050-277 WASHERWASHER
-
198050-272 WASHERWASHER
