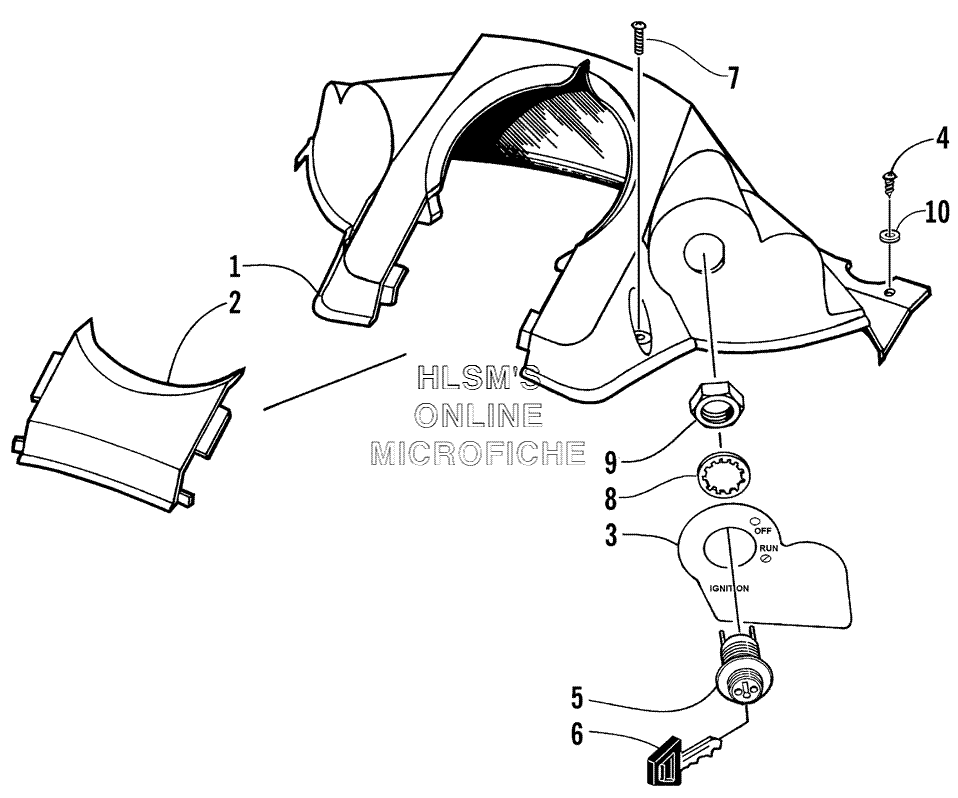

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat ZL 500 EFI - 2000 года выпуска
-
№АртикулНазвание
-
11606-224 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
32611-678 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
40623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
50609-256 SWITCH, IGNITIONSWITCH, IGNITION
-
60609-412 KEYKEY
-
70623-219 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
90123-900 NUT, IGNITIONNUT, IGNITION
-
108050-157 WASHERWASHER
