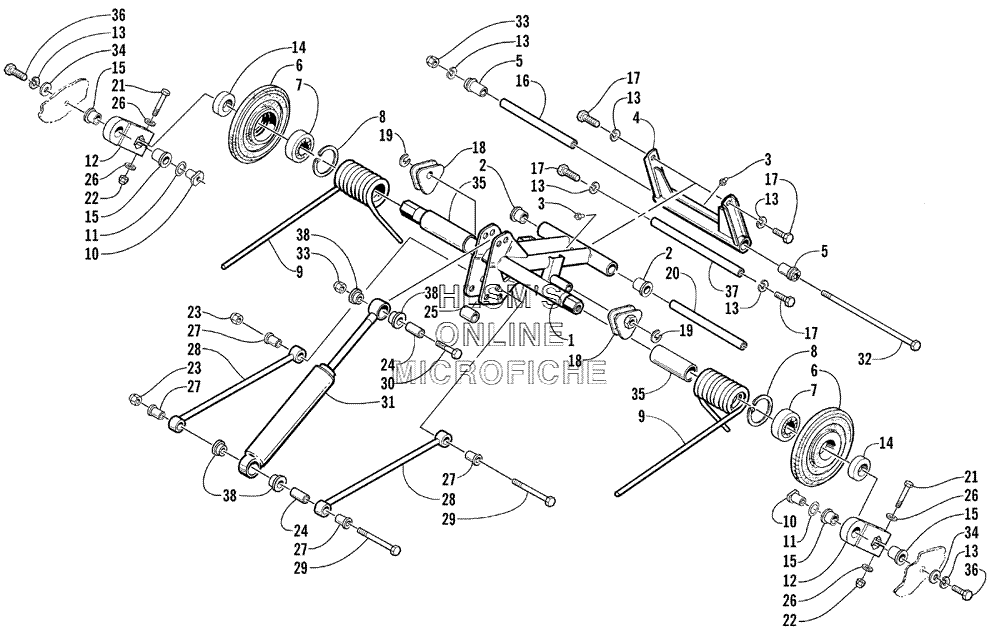

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat ZL 500 EFI - 2000 года выпуска
-
№АртикулНазвание
-
10704-121 ARM, IDLER (INC. 2 AND ONE NO. 3)ARM, IDLER (INC. 2 AND ONE NO. 3)
-
21604-100 . BUSHING, FLARED. BUSHING, FLARED
-
39916-963 . FITTING, GREASE. FITTING, GREASE
-
40704-462 ARM (REAR) (INC. ONE NO. 3 AND 38)ARM (REAR) (INC. ONE NO. 3 AND 38)
-
51604-307 AXLE, SERRATEDAXLE, SERRATED
-
60604-374 WHEEL, IDLER (INC. 7, 8)WHEEL, IDLER (INC. 7, 8)
-
70107-598 . BEARING. BEARING
-
80123-798 . RING, RETAINING. RING, RETAINING
-
91604-062 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
91604-063 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
101604-181 AXLE (POWDER METAL)AXLE (POWDER METAL)
-
111604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
120704-014 ARM, PIVOT IDLER (INC. 15)ARM, PIVOT IDLER (INC. 15)
-
138051-277 WASHER, LOCKWASHER, LOCK
-
141604-507 SPACERSPACER
-
151604-202 BUSHING, FLAREDBUSHING, FLARED
-
160604-194 TUBE, AXLETUBE, AXLE
-
178012-223 SCREW, CAPSCREW, CAP
-
181604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
181604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
190623-138 RING, RETAINERRING, RETAINER
-
201604-208 AXLE, ALUMINUMAXLE, ALUMINUM
-
218002-138 SCREW, CAPSCREW, CAP
-
228040-426 NUT, LOCKNUT, LOCK
-
238041-486 NUT, LOCKNUT, LOCK
-
241604-185 SLEEVE, SHOCKSLEEVE, SHOCK
-
250604-298 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
268050-242 WASHERWASHER
-
271604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
280704-350 LINK REAR SHOCKLINK REAR SHOCK
-
298002-233 SCREW, CAPSCREW, CAP
-
308002-227 SCREW, CAPSCREW, CAP
-
311604-372 SHOCK ABSORBER ARM (REAR)SHOCK ABSORBER ARM (REAR)
-
320623-105 SCREW, CAPSCREW, CAP
-
338040-486 NUT, LOCKNUT, LOCK
-
340623-044 WASHERWASHER
-
350114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
368002-224 SCREW, CAPSCREW, CAP
-
370604-930 AXLE, ALUMINUMAXLE, ALUMINUM
-
380604-321 BUSHING, SHOCKBUSHING, SHOCK
