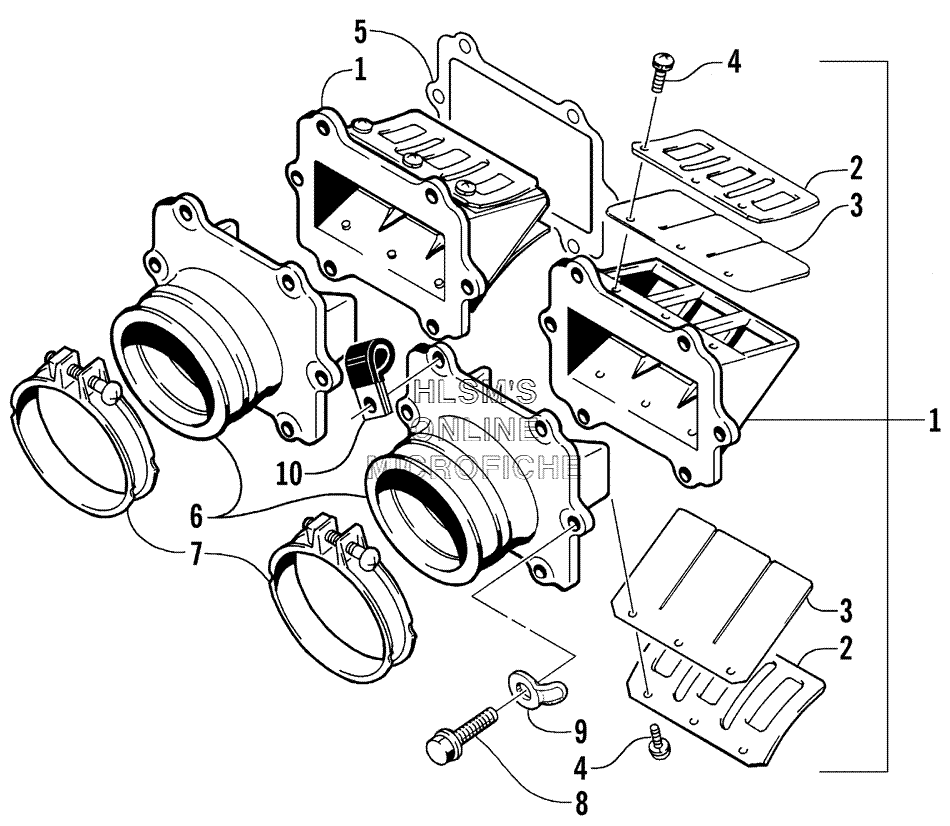

REED VALVE ASSEMBLY для Arctic Cat ZL 600 - 2000 года выпуска
-
№АртикулНазвание
-
13005-124 VALVE, REED, ASSEMBLY (INC. 2, 4)VALVE, REED, ASSEMBLY (INC. 2, 4)
-
23004-176 . STOPPER, REED VALVE. STOPPER, REED VALVE
-
33004-177 . VALVE, REED. VALVE, REED
-
43004-506 . SCREW, REED VALVE. SCREW, REED VALVE
-
53008-076 GASKET, REED VALVEGASKET, REED VALVE
-
63005-415 PIPE, INTAKE ASSEMBLYPIPE, INTAKE ASSEMBLY
-
73004-463 CLAMPCLAMP
-
83004-376 BOLTBOLT
-
91606-599 TAB, CARBURETOR BOOT STRAPTAB, CARBURETOR BOOT STRAP
-
103008-040 CLAMPCLAMP
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- ALTERNATE CARBURETOR PARTS
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CARBURETOR - EXTERNAL PARTS
- CARBURETOR - INTERNAL PARTS
- CARBURETOR AND FUEL PUMP ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/DROPCASE ASSEMBLY
- DRIVE/REVERSE DROPCASE ASSEMBLY (OPTIONAL)
- DRIVEN CLUTCH
- DROPCASE CHAIN TENSION ASSEMBLY (OPTIONAL)
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY
- GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY
- HANDLEBAR AND CONTROLS
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- INSTRUMENTS AND WIRING ASSEMBLIES
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION REAR ARM ASSEMBLY
- RECOIL STARTER
- • REED VALVE ASSEMBLY
- REVERSE SHIFT LEVER ASSEMBLY (OPTIONAL)
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL AND REAR BUMPER
- WATER PUMP AND THERMOSTAT
