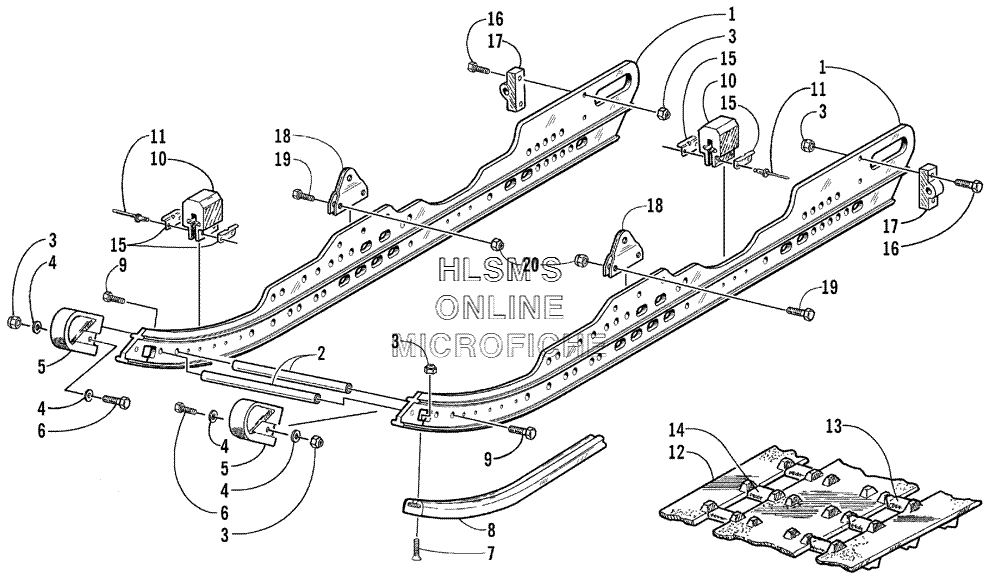

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat ZL 600 - 2000 года выпуска
-
№АртикулНазвание
-
-7994-882 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
11604-598 RAIL, FORMEDRAIL, FORMED
-
20604-426 SUPPORT, RAILSUPPORT, RAIL
-
38040-366 NUT, LOCKNUT, LOCK
-
48050-217 WASHERWASHER
-
51604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
68002-044 SCREW, CAPSCREW, CAP
-
70123-869 SCREW, MACHINESCREW, MACHINE
-
80604-640 WEARSTRIP, SLIDE RAIL (BLACK)WEARSTRIP, SLIDE RAIL (BLACK)
-
98012-134 SCREW, CAPSCREW, CAP
-
100604-918 PAD, SHOCKPAD, SHOCK
-
118060-633 RIVETRIVET
-
121602-033 TRACK ASSEMBLY (INC. 13, 14)TRACK ASSEMBLY (INC. 13, 14)
-
131602-132 . CLIP, GUIDE. CLIP, GUIDE
-
141602-131 . CLIP, WEAR. CLIP, WEAR
-
150604-967 BRACKET, RETAININGBRACKET, RETAINING
-
168002-042 SCREW, CAPSCREW, CAP
-
170704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
180704-395 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
198002-131 SCREW, CAPSCREW, CAP
-
208040-426 NUT, LOCKNUT, LOCK
