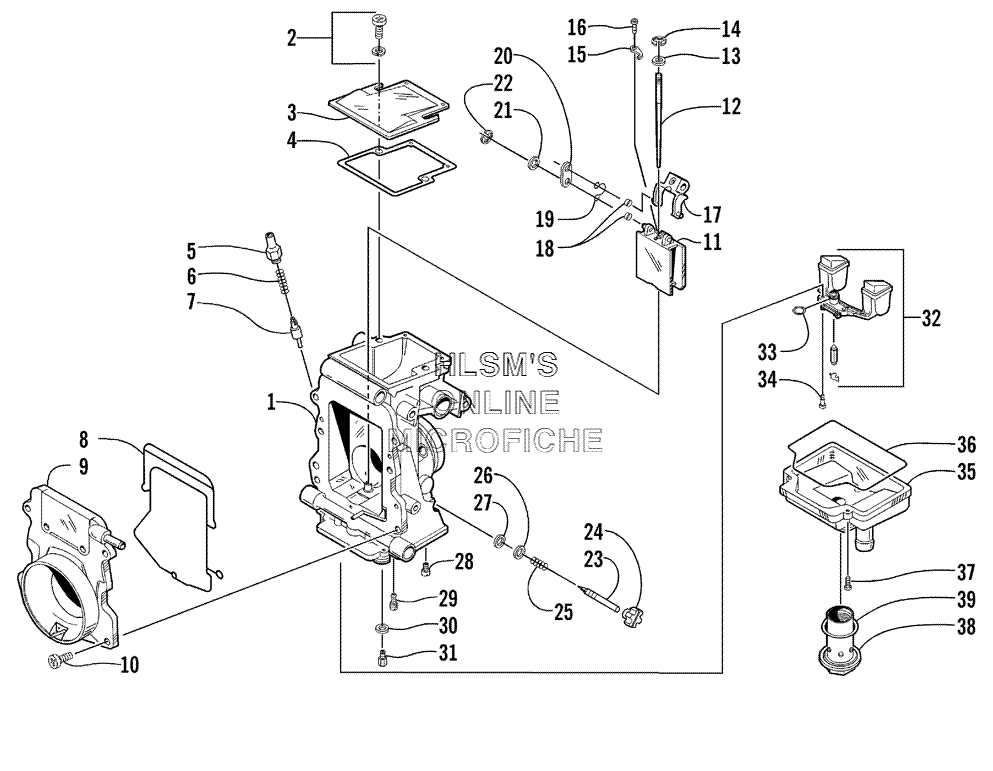

CARBURETOR TM40-B73 - INTERNAL PARTS для Arctic Cat ZL 700 - 2000 года выпуска
-
№АртикулНазвание
-
-1670-099 CARBURETOR COMPLETE TM40, B73CARBURETOR COMPLETE TM40, B73
-
26505-591 SCREW ASSY.SCREW ASSY.
-
36506-142 CAP, TOPCAP, TOP
-
46506-034 GASKETGASKET
-
56506-137 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
66506-138 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
76506-139 STARTER PLUNGERSTARTER PLUNGER
-
86506-209 GASKETGASKET
-
96506-239 FUNNEL ASSY.FUNNEL ASSY.
-
106505-980 SCREWSCREW
-
116506-119 VALVE, THROTTLE CA 2.0VALVE, THROTTLE CA 2.0
-
126506-114 JET NEEDLE 9DH5, 61, 3JET NEEDLE 9DH5, 61, 3
-
126506-113 JET NEEDLE 9EH7, 62, 3 (5, 9, 000 FT ALT.)JET NEEDLE 9EH7, 62, 3 (5, 9, 000 FT ALT.)
-
126506-113 JET NEEDLE 9EH7, 62, 2 (OVER 9, 000 FT ALT.)JET NEEDLE 9EH7, 62, 2 (OVER 9, 000 FT ALT.)
-
136505-552 WASHER, E, CLIPWASHER, E, CLIP
-
146505-628 E, CLIPE, CLIP
-
156506-055 PLATE, JET NEEDLE RETAININGPLATE, JET NEEDLE RETAINING
-
166506-054 SCREW, RETAINING PLATESCREW, RETAINING PLATE
-
176506-047 LEVER ASSY. (LEFT)LEVER ASSY. (LEFT)
-
176506-043 LEVER ASSY. (RIGHT)LEVER ASSY. (RIGHT)
-
186506-053 BUSHING, CLIPBUSHING, CLIP
-
196506-040 CLIPCLIP
-
206506-039 PLATEPLATE
-
216506-052 WASHERWASHER
-
226506-051 E, RINGE, RING
-
236506-145 SCREW, FUEL MIXTURE 2.0SCREW, FUEL MIXTURE 2.0
-
246506-076 CAP, FUEL MIXTURE SCREWCAP, FUEL MIXTURE SCREW
-
256506-079 SPRING, FUEL MIXTURE SCREWSPRING, FUEL MIXTURE SCREW
-
266506-078 WASHERWASHER
-
276506-080 WASHER, RUBBERWASHER, RUBBER
-
286506-101 STARTER JET 135STARTER JET 135
-
296505-047 PILOT JET 40PILOT JET 40
-
306506-091 WASHERWASHER
-
316505-074 MAIN JET 320MAIN JET 320
-
326506-208 FLOAT ASSY. 1.8FLOAT ASSY. 1.8
-
336506-100 O-RINGO-RING
-
346506-037 SCREW, FLOAT ARMSCREW, FLOAT ARM
-
356506-036 CHAMBER, FLOATCHAMBER, FLOAT
-
366506-038 O-RINGO-RING
-
376506-072 SCREWSCREW
-
386506-032 PLUG, DRAINPLUG, DRAIN
-
396505-185 O-RINGO-RING
