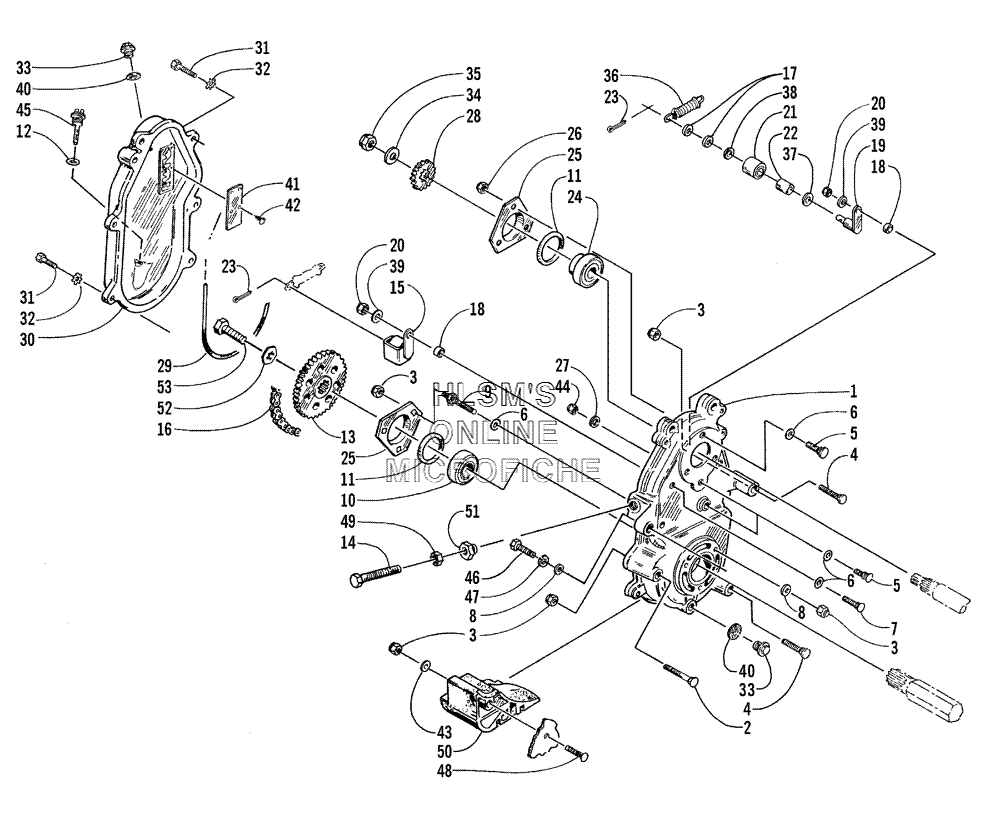

DRIVE/DROPCASE ASSY. для Arctic Cat ZL 700 - 2000 года выпуска
-
№АртикулНазвание
-
10702-375 DROPCASE W/PLUGSDROPCASE W/PLUGS
-
28011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
38040-426 NUT, LOCKNUT, LOCK
-
48011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
50123-523 BOLT, RIBBEDBOLT, RIBBED
-
60607-025 O-RING, STUDO-RING, STUD
-
70623-117 BOLT, RIBBEDBOLT, RIBBED
-
88050-247 WASHERWASHER
-
90623-317 STUDSTUD
-
101602-051 BEARING, 1 IN.BEARING, 1 IN.
-
110107-003 SEAL, O-RINGSEAL, O-RING
-
120670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
130602-453 SPROCKET (40 TEETH)SPROCKET (40 TEETH)
-
140602-638 ADJUSTER, CHAINADJUSTER, CHAIN
-
150702-324 ARM, TIGHTENER ASSY.ARM, TIGHTENER ASSY.
-
161602-042 CHAIN, 72PCHAIN, 72P
-
161602-041 CHAIN, 70P (OVER 5, 000 FT ALT.)CHAIN, 70P (OVER 5, 000 FT ALT.)
-
178050-212 WASHERWASHER
-
180602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
190702-115 ARM, TIGHTENERARM, TIGHTENER
-
200623-122 NUT, LOCKNUT, LOCK
-
210702-129 ROLLER, CHAIN TIGHTENER (INC. 22)ROLLER, CHAIN TIGHTENER (INC. 22)
-
220602-383 . BEARING, CHAIN TIGHTENER. BEARING, CHAIN TIGHTENER
-
230123-082 PIN, COTTERPIN, COTTER
-
241602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
250602-198 PLATE, FLANGEPLATE, FLANGE
-
268041-426 NUT, LOCKNUT, LOCK
-
270623-094 WASHERWASHER
-
280602-452 SPROCKET (23 TEETH)SPROCKET (23 TEETH)
-
280602-444 SPROCKET (19 TEETH) (OVER 5, 000 FT ALT.)SPROCKET (19 TEETH) (OVER 5, 000 FT ALT.)
-
290602-437 SEAL, DROPCASESEAL, DROPCASE
-
300602-989 COVER, DROPCASECOVER, DROPCASE
-
318002-134 SCREW, CAPSCREW, CAP
-
328053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
330623-293 PLUG, DROPCASEPLUG, DROPCASE
-
340623-231 WASHER, SPRINGWASHER, SPRING
-
350623-465 NUT, LOCKNUT, LOCK
-
360702-130 SPRING ASSY.SPRING ASSY.
-
370623-283 WASHERWASHER
-
380623-284 WASHERWASHER
-
398050-217 WASHERWASHER
-
400123-641 WASHER, FIBERWASHER, FIBER
-
410602-971 COVER, OIL VENTCOVER, OIL VENT
-
420623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
438050-242 WASHERWASHER
-
448042-426 NUTNUT
-
450602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
468002-135 SCREW, CAPSCREW, CAP
-
478051-242 WASHER, LOCKWASHER, LOCK
-
488011-137 BOLT, CARRIAGEBOLT, CARRIAGE
-
490123-150 NUTNUT
-
500616-964 GUARD, DROPCASEGUARD, DROPCASE
-
510602-876 ADAPTER, MANUAL ADJUSTADAPTER, MANUAL ADJUST
-
520124-091 WASHER, PYRAMIDALWASHER, PYRAMIDAL
-
538012-222 SCREW, CAPSCREW, CAP
