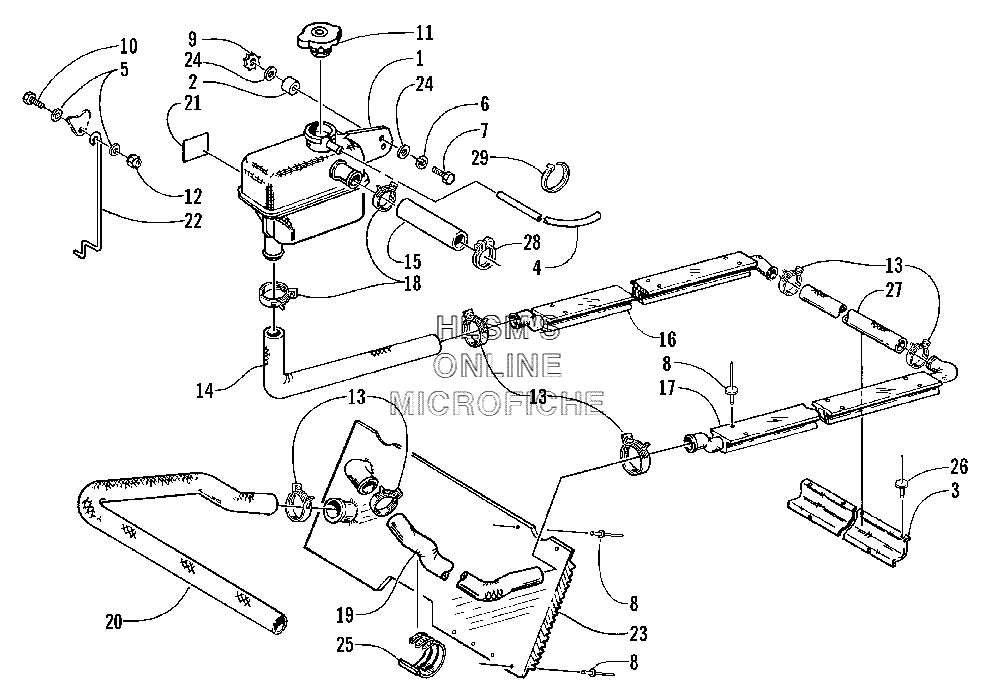

COOLING ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10670-494 TANK, COOLANTTANK, COOLANT
-
20616-878 SPACER, RESONATORSPACER, RESONATOR
-
30616-930 GUARD, COOLANT HOSEGUARD, COOLANT HOSE
-
40610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
40610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
58050-222 WASHERWASHER
-
68051-217 WASHER, LOCKWASHER, LOCK
-
78002-044 SCREW, CAPSCREW, CAP
-
88060-706 RIVETRIVET
-
98053-212 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
108002-042 SCREW, CAPSCREW, CAP
-
110606-268 CAP, FILLER NECKCAP, FILLER NECK
-
128040-366 NUT, LOCKNUT, LOCK
-
130623-736 CLAMP, SPRINGCLAMP, SPRING
-
140610-296 HOSE, COOLANT TANK/ RIGHT HEAT EXCHANGERHOSE, COOLANT TANK/ RIGHT HEAT EXCHANGER
-
150610-325 HOSE, COOLANT TANK/ENGINEHOSE, COOLANT TANK/ENGINE
-
160716-400 EXCHANGER, HEAT (RIGHT)EXCHANGER, HEAT (RIGHT)
-
170716-401 EXCHANGER, HEAT (LEFT)EXCHANGER, HEAT (LEFT)
-
180423-070 CLAMP, SPRINGCLAMP, SPRING
-
190610-223 HOSE, COOLANT (LEFT) HEAT EXCHANGER/ FRONT HEAT EXCHANGERHOSE, COOLANT (LEFT) HEAT EXCHANGER/ FRONT HEAT EXCHANGER
-
200610-328 HOSE, COOLANT, ENGINE/ FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/ FRONT HEAT EXCHANGER
-
212611-758 DECAL, COOLANT TANK, FILL LEVELDECAL, COOLANT TANK, FILL LEVEL
-
221606-269 BRACKET, WIRE FORM, COOLANT TANKBRACKET, WIRE FORM, COOLANT TANK
-
230716-280 EXCHANGER, HEAT (FRONT)EXCHANGER, HEAT (FRONT)
-
240623-184 WASHERWASHER
-
250623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
268060-504 RIVETRIVET
-
270610-228 HOSE, COOLANT (REAR)HOSE, COOLANT (REAR)
-
280623-424 CLAMP, HOSECLAMP, HOSE
-
290123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
