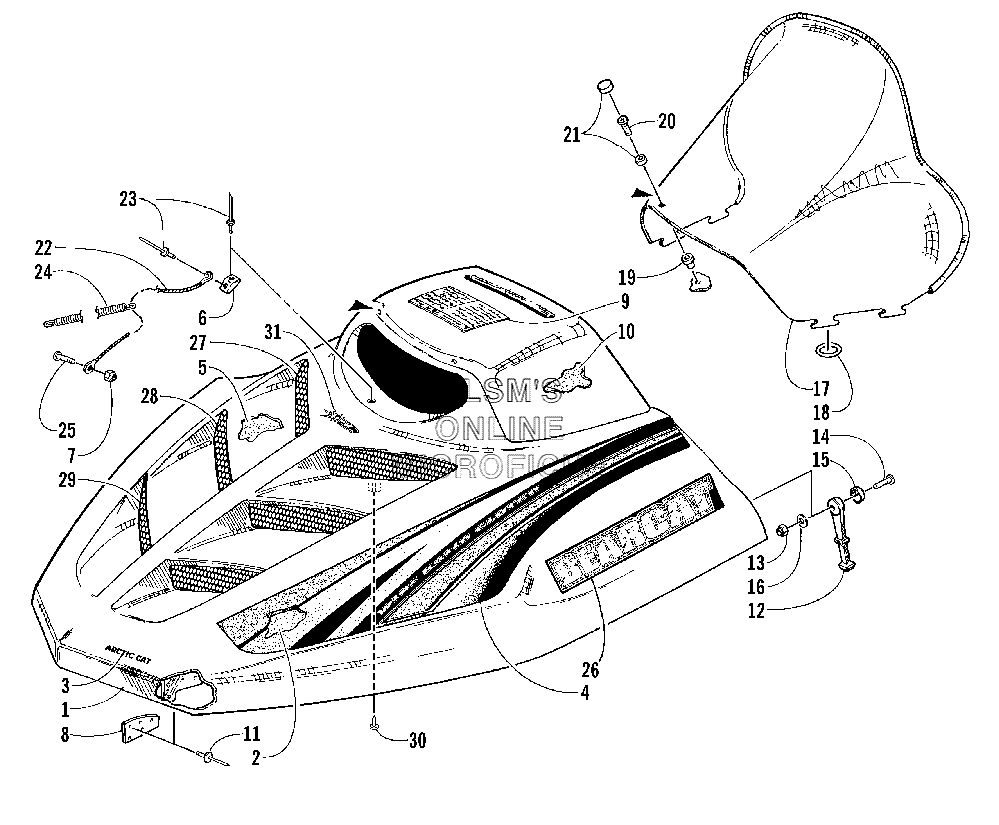

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10718-969 HOOD W/DECALSHOOD W/DECALS
-
10718-968 HOOD W/O DECALSHOOD W/O DECALS
-
20717-058 FOAM (RIGHT)FOAM (RIGHT)
-
20717-059 FOAM (LEFT)FOAM (LEFT)
-
33611-855 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
43611-849 DECAL, HOOD (UPPER) (RIGHT)DECAL, HOOD (UPPER) (RIGHT)
-
43611-850 DECAL, HOOD (UPPER) (LEFT)DECAL, HOOD (UPPER) (LEFT)
-
50717-060 FOAM, HOOD (CENTER) (RIGHT)FOAM, HOOD (CENTER) (RIGHT)
-
50717-061 FOAM, HOOD (CENTER) (LEFT)FOAM, HOOD (CENTER) (LEFT)
-
61606-088 BRACKET, HOOD CABLEBRACKET, HOOD CABLE
-
70123-430 NUT, LOCKNUT, LOCK
-
80616-438 BRACKET, HOOD, HINGEBRACKET, HOOD, HINGE
-
91611-575 DECAL, WARNINGDECAL, WARNING
-
100717-062 FOAM, HOOD UPPER (RIGHT)FOAM, HOOD UPPER (RIGHT)
-
100717-063 FOAM, HOOD UPPER (LEFT)FOAM, HOOD UPPER (LEFT)
-
118061-706 RIVETRIVET
-
120115-306 STRAP, LATCHSTRAP, LATCH
-
138040-366 NUT, LOCKNUT, LOCK
-
148019-614 SCREW, MACHINESCREW, MACHINE
-
150623-261 WASHER, CUPWASHER, CUP
-
168050-217 WASHERWASHER
-
171606-820 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190123-010 NUT, EXPANSIONNUT, EXPANSION
-
200623-121 SCREW, MACHINESCREW, MACHINE
-
210124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
220616-614 CABLE, HOODCABLE, HOOD
-
238061-708 RIVETRIVET
-
240123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
250623-413 SCREW, MACHINESCREW, MACHINE
-
263611-851 DECAL, "BEARCAT", HOODDECAL, "BEARCAT", HOOD
-
270706-996 SCREEN, VENT, HOOD (RIGHT)SCREEN, VENT, HOOD (RIGHT)
-
270706-997 SCREEN, VENT, HOOD (LEFT)SCREEN, VENT, HOOD (LEFT)
-
280706-998 SCREEN, VENT, HOOD (CENTER) (RIGHT)SCREEN, VENT, HOOD (CENTER) (RIGHT)
-
280706-999 SCREEN, VENT, HOOD (CENTER) (LEFT)SCREEN, VENT, HOOD (CENTER) (LEFT)
-
290716-004 SCREEN, VENT, HOOD (LOWER) (RIGHT)SCREEN, VENT, HOOD (LOWER) (RIGHT)
-
290716-005 SCREEN, VENT, HOOD (LOWER) (LEFT)SCREEN, VENT, HOOD (LOWER) (LEFT)
-
300623-707 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
313611-581 DECAL, "ESR", DOMEDDECAL, "ESR", DOMED
