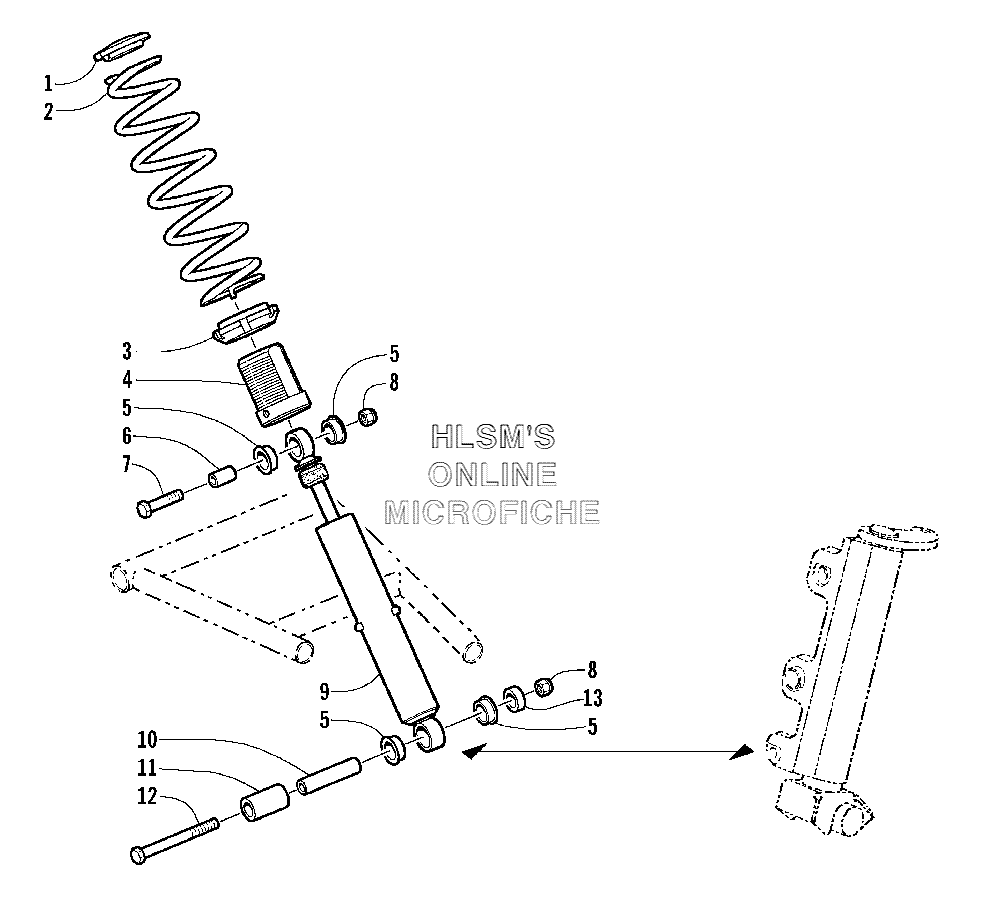

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat MOUNTAIN CAT 600 EFI (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
10603-033 RETAINER, SPRINGRETAINER, SPRING
-
20703-482 SPRING SUSPENSION (FRONT)SPRING SUSPENSION (FRONT)
-
30603-259 NUT, RETAINER, SPRINGNUT, RETAINER, SPRING
-
40603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
50604-310 BUSHING, SHOCK ABSORBERBUSHING, SHOCK ABSORBER
-
60604-309 SLEEVE, SHOCK ABSORBERSLEEVE, SHOCK ABSORBER
-
78002-226 SCREW, CAPSCREW, CAP
-
88040-486 NUT, LOCKNUT, LOCK
-
91603-436 SHOCK SUSPENSION (FRONT)SHOCK SUSPENSION (FRONT)
-
101604-184 SLEEVE, SHOCK ABSORBERSLEEVE, SHOCK ABSORBER
-
110603-854 SPACER, SHOCK ABSORBER (FRONT)SPACER, SHOCK ABSORBER (FRONT)
-
128002-234 SCREW, CAPSCREW, CAP
-
130603-855 SPACER, SHOCK ABSORBER (REAR)SPACER, SHOCK ABSORBER (REAR)
