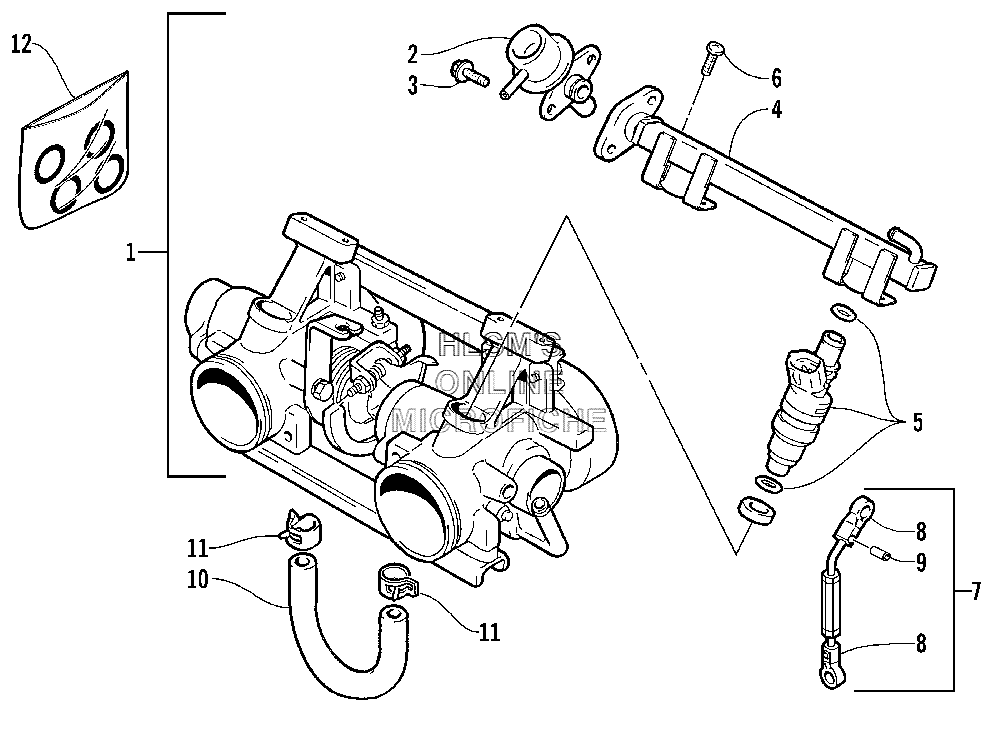

THROTTLE BODY ASSEMBLY для Arctic Cat MOUNTAIN CAT 600 EFI (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
13005-903 BODY, THROTTLE, ASSY CIRCLEBODY, THROTTLE, ASSY CIRCLE
-
13005-810 BODY, THROTTLE, ASSY SQUAREBODY, THROTTLE, ASSY SQUARE
-
13005-904 BODY, THROTTLE, ASSY TRIANGLEBODY, THROTTLE, ASSY TRIANGLE
-
23005-074 REGULATOR, FUELREGULATOR, FUEL
-
33004-436 BOLTBOLT
-
43005-691 PIPE, DELIVERYPIPE, DELIVERY
-
53005-811 INJECTOR, FUEL, ASSY CIRCLEINJECTOR, FUEL, ASSY CIRCLE
-
53005-812 INJECTOR, FUEL, ASSY SQUAREINJECTOR, FUEL, ASSY SQUARE
-
53005-813 INJECTOR, FUEL, ASSY TRIANGLEINJECTOR, FUEL, ASSY TRIANGLE
-
63005-320 SCREWSCREW
-
73005-693 ROD, CONTROL, OIL PUMP (INC. 8, 9)ROD, CONTROL, OIL PUMP (INC. 8, 9)
-
83005-737 END, RODEND, ROD
-
93005-738 PIN, SPRINGPIN, SPRING
-
103005-103 HOSEHOSE
-
113004-193 CLAMP, HOSECLAMP, HOSE
-
123005-692 O-RING SET (INC. ALL THROTTLE BODY O-RINGS)O-RING SET (INC. ALL THROTTLE BODY O-RINGS)
