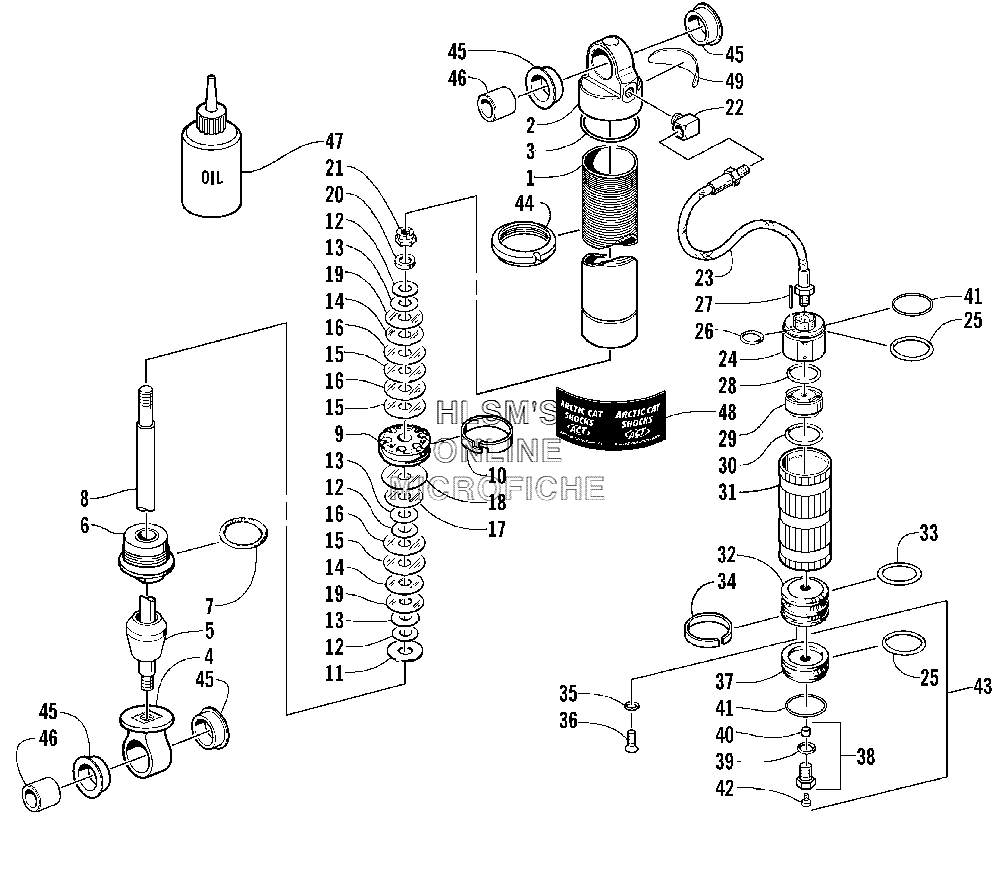

FRONT SUSPENSION SHOCK ABSORBER (LE) для Arctic Cat MOUNTAIN CAT 800 LE (GREEN) - 2001 года выпуска
-
№АртикулНазвание
-
-0703-714 COMPLETE SHOCK ABSORBER (RIGHT)COMPLETE SHOCK ABSORBER (RIGHT)
-
-0703-715 COMPLETE SHOCK ABSORBER (LEFT)COMPLETE SHOCK ABSORBER (LEFT)
-
11603-312 BODY, SHOCKBODY, SHOCK
-
20603-963 END CAP, SHOCKEND CAP, SHOCK
-
31604-280 O-RING, END CAPO-RING, END CAP
-
41603-501 EYELET, SHOCKEYELET, SHOCK
-
51603-405 BUMPER, SHOCKBUMPER, SHOCK
-
60704-386 END CAP, SHOCK (INC. 7)END CAP, SHOCK (INC. 7)
-
71604-271 O-RINGO-RING
-
81603-303 ROD, SHOCKROD, SHOCK
-
90603-953 PISTON, 0.093 IN., ORIFICEPISTON, 0.093 IN., ORIFICE
-
101604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
111604-272 WASHER, TOP OUTWASHER, TOP OUT
-
121603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
131603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
141603-094 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
151603-122 VALVE, 1.250 X 0.006 IN.VALVE, 1.250 X 0.006 IN.
-
161603-124 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
171603-092 VALVE, 1.100 X 0.006 IN.VALVE, 1.100 X 0.006 IN.
-
181603-134 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
191603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
201604-273 WASHER, BACKUPWASHER, BACKUP
-
210623-696 NUT, LOCKNUT, LOCK
-
220603-964 FITTING, ELBOWFITTING, ELBOW
-
230603-965 HOSE, RESERVOIR/SHOCKHOSE, RESERVOIR/SHOCK
-
240703-541 END CAP, RESERVOIR BODY (INC. ONE NO. 25 AND 26, 28)END CAP, RESERVOIR BODY (INC. ONE NO. 25 AND 26, 28)
-
250603-968 O-RINGO-RING
-
260603-975 O-RINGO-RING
-
271603-406 PIN, INNERDICATOR KNOBPIN, INNERDICATOR KNOB
-
280603-970 O-RINGO-RING
-
290703-542 OIL RELIEF, 2, PORT, ASSYOIL RELIEF, 2, PORT, ASSY
-
300603-984 RETAINERRETAINER
-
311603-315 BODY, RESERVOIRBODY, RESERVOIR
-
320603-986 PISTON, RESERVOIRPISTON, RESERVOIR
-
330603-987 O-RINGO-RING
-
340603-988 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
351604-279 O-RINGO-RING
-
360623-697 SCREW, PISTONSCREW, PISTON
-
370603-989 END CAP, RESERVOIR BODYEND CAP, RESERVOIR BODY
-
380704-383 VALVE, PRESSURE (INC. 39, 40)VALVE, PRESSURE (INC. 39, 40)
-
391604-284 O-RING, VALVEO-RING, VALVE
-
410603-985 RETAINER, END CAPRETAINER, END CAP
-
420624-433 SCREW, MACHINESCREW, MACHINE
-
430703-540 END CAP, RESERVOIR, ASSY (INC. ONE NO. 25 AND 35, 42)END CAP, RESERVOIR, ASSY (INC. ONE NO. 25 AND 35, 42)
-
440603-960 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
450603-955 BUSHING, SHOCKBUSHING, SHOCK
-
461603-209 SLEEVE, EYELETSLEEVE, EYELET
-
471639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
483611-774 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
-
493611-007 DECAL, WARNINGDECAL, WARNING
